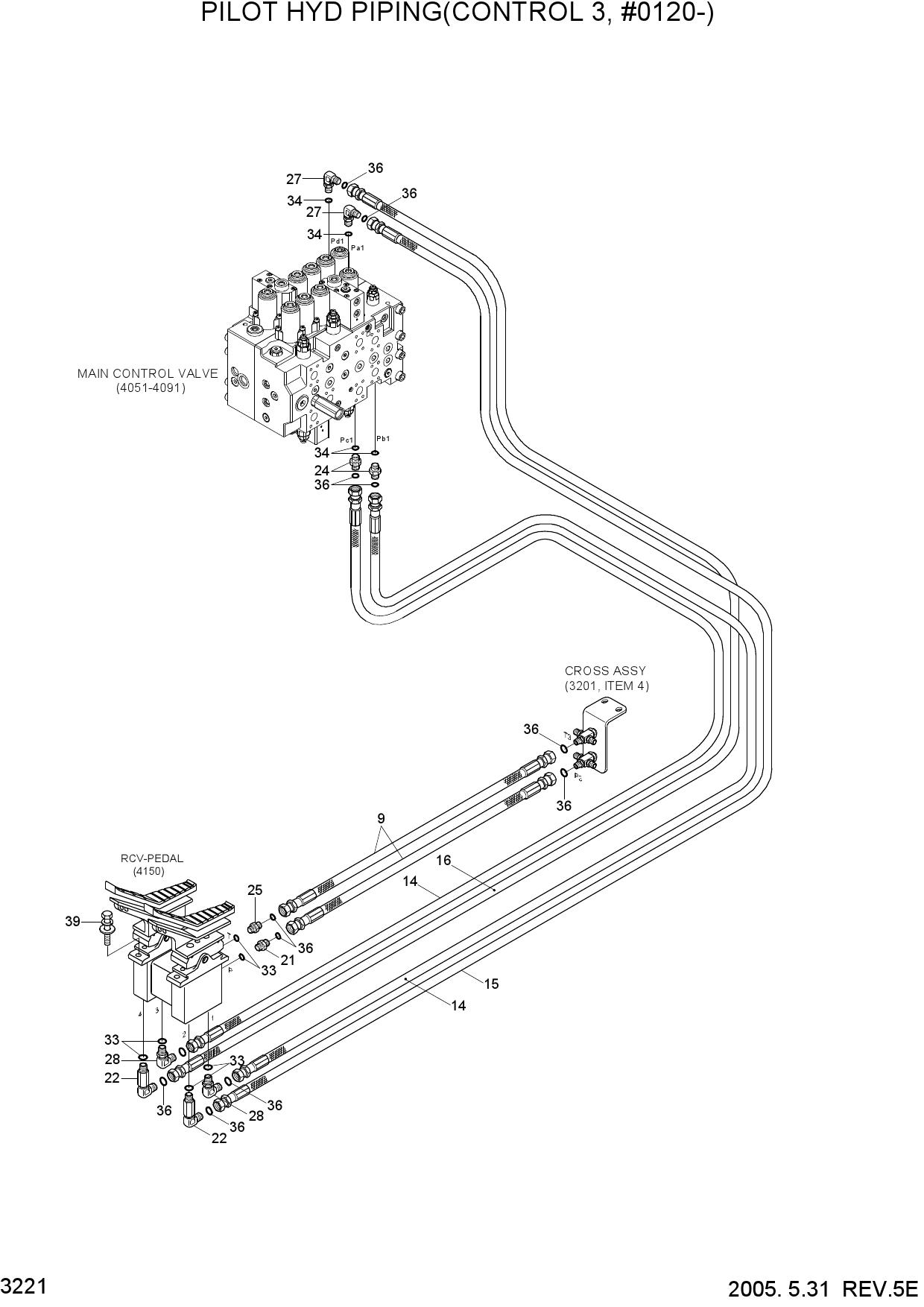

Запчасти для гусеничных экскаваторов Hyundai R305LC-7 PILOT HYD PIPING(CONTROL 3, #0120-)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 9 | X400-062019 | HOSE ASSY-SYNF,ORFS | |
| 14 | X400-062067 | HOSE ASSY-SYNFLEX,ORFS | |
| 15 | X400-062072 | HOSE ASSY-SYNFLEX,ORFS | |
| 16 | X400-062074 | HOSE ASSY-SYNFLEX,ORFS | |
| 21 | 31N6-25070 | FILTER-LAST GUARD | |
| 22 | 31N7-22100 | ELBOW-90,ORFS,LONG | |
| 24 | X500-110002 | CONNECTOR-ORFS | |
| 25 | X500-110011 | CONNECTOR-ORFS | |
| 27 | X520-110002 | ELBOW-90,ORFS | |
| 28 | X520-110011 | ELBOW-90,ORFS | |
| 33 | S631-011004 | O-RING | |
| 34 | S631-014004 | O-RING | |
| 36 | S621-012001 | O-RING | |
| 39 | S037-103026 | BOLT-W/WASHER |
Для поиска необходимых позиций выберите нужный раздел каталога запасных
частей Hyundai Чтобы купить запчасти для R305LC-7 в компании ООО
«ЮКОЗ ТРЕИД» позвоните нам по телефонам указанным в разделе Контакты или
отправьте сообщение через форму запроса в ближайший к вам филиал.
