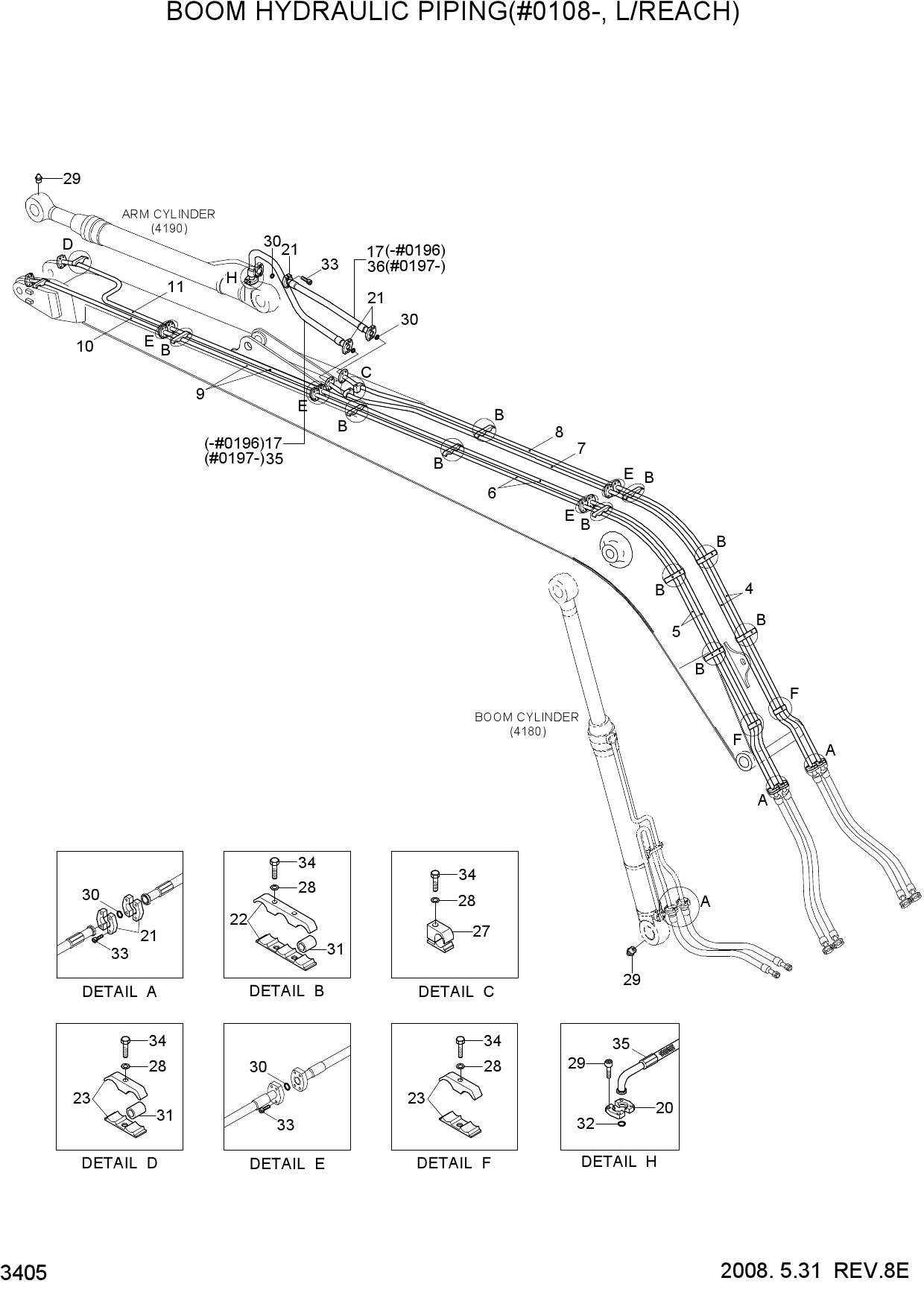

Запчасти для гусеничных экскаваторов Hyundai R305LC-7 BOOM HYDRAULIC PIPING(#0108-, L/REACH)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 4 | 31N8-50250 | PIPE WA | |
| 5 | 31N8-50260 | PIPE WA | |
| 6 | 31N8-50270 | PIPE WA | |
| 7 | 31N8-50570 | PIPE WA | |
| 8 | 31N8-50580 | PIPE WA | |
| 9 | 31N8-50300 | PIPE WA | |
| 10 | 31N8-50310 | PIPE WA | |
| 11 | 31N8-50590 | PIPE WA | |
| 17 | P680-167325 | PIPE ASSY | |
| 21 | P173-160104 | FLANGE-HYD,SPLIT | |
| 22 | 31N6-50330 | CLAMP ASSY | |
| 23 | 31N6-50310 | CLAMP ASSY | |
| 27 | 31N6-50300 | CLAMP ASSY | |
| 28 | S411-160006 | WASHER-SPRING | |
| 29 | S651-810002 | NIPPLE-GREASE | |
| 30 | Y171-024004 | O-RING | |
| 31 | 31N5-50230 | SPACER-PIPE | |
| 33 | S109-100306 | BOLT-SOCKET | |
| 34 | S017-16075A | BOLT-HEX | |
| 35 | P700-167321 | HOSE ASSY-FLG 0X90 | |
| 35 | 31N6-57110 | HOSE ASSY-FLG 0X90 | |
| 36 | P680-167324 | HOSE ASSY-FLG |
