- PUMP MOUNTING
- HYDRAULIC TANK
- UPPER HYDRAULIC PIPING(BASE, -#0119)
- UPPER HYDRAULIC PIPING(BASE, #0120-)
- UPPER HYDRAULIC PIPING(TRAVEL, -#0478)
- UPPER HYDRAULIC PIPING(TRAVEL, #0479-)
- UPPER HYDRAULIC PIPING(ATTACH)
- PILOT HYD PIPING(CONTROL 1, -#0119)
- PILOT HYD PIPING(CONTROL 1, #0120-)
- PILOT HYD PIPING(CONTROL 2, -#0119)
- PILOT HYD PIPING(CONTROL 2, #0120-)
- PILOT HYD PIPING(CONTROL 3, -#0119)
- PILOT HYD PIPING(CONTROL 3, #0120-)
- PILOT HYDRAULIC PIPING(BASE 1, -#0119)
- PILOT HYDRAULIC PIPING(BASE 1, #0120-)
- PILOT HYDRAULIC PIPING(BASE 2, -#0119)
- PILOT HYDRAULIC PIPING(BASE 2, #0120-)
- PILOT HYDRAULIC PIPING(BASE 3, -#0119)
- PILOT HYDRAULIC PIPING(BASE 3, #0120-)
- TRAVEL HYDRAULIC PIPING(STD)
- TRAVEL HYDRAULIC PIPING(OPT, #0108-)
- BOOM HYDRAULIC PIPING(6.25M,STD,-#0189)
- BOOM HYDRAULIC PIPING(6.25M,STD,#0190-)
- BOOM HYDRAULIC PIPING(8.50M, #0120-)
- BOOM HYDRAULIC PIPING(#0108-, L/REACH)
- BOOM GREASE LUB SYSTEM(6.25M,STD,-#0189)
- BOOM GREASE LUB SYSTEM(6.25M,STD,#0190-)
- BOOM GREASE LUB SYSTEM(8.5M, #0120-)
- BOOM GREASE LUB SYSTEM(#0108-, L/REACH)
- BOOM SAFETY LOCK SYSTEM
- QUICK CLAMP PIPING(BM 6.25M)
- QUICK COUPLING PIPING(BM 8.50M, #0911-)
- QUICK CLAMP(CLOSE TYPE, #0161-)
- QUICK CLAMP(HOOK TYPE)
- QUICK CLAMP(HOOK TYPE, #0192-)
- QUICK CLAMP(CLOSE TYPE, #0192-)
- ARM HYDRAULIC PIPING(3.05M, STD)
- ARM HYDRAULIC PIPING(2.1M)
- ARM HYDRAULIC PIPING(2.5M)
- ARM HYDRAULIC PIPING(2.7M)
- ARM HYDRAULIC PIPING(3.75M)
- ARM HYDRAULIC PIPING(4.6M)
- ARM HYDRAULIC PIPING(5.6M, #1525-)
- ARM SAFETY LOCK SYSTEM
- ARM HYDRAULIC PIPING(#0108-, LONG REACH)
- DOUBLE ACTING MAIN PIPING KIT(-#0119)
- DOUBLE ACTING MAIN PIPING KIT(#0120-)
- ATTACH PIP KIT(S & D/ACTING, BM 6.25M)
- ATTACH PIP KIT(S&D/ACT,BM 8.50M,#0911-)
- SINGLE PEDAL
- SINGLE ACTING MAIN PIPING KIT(-#0119)
- SINGLE ACTING MAIN PIPING KIT(#0120-)

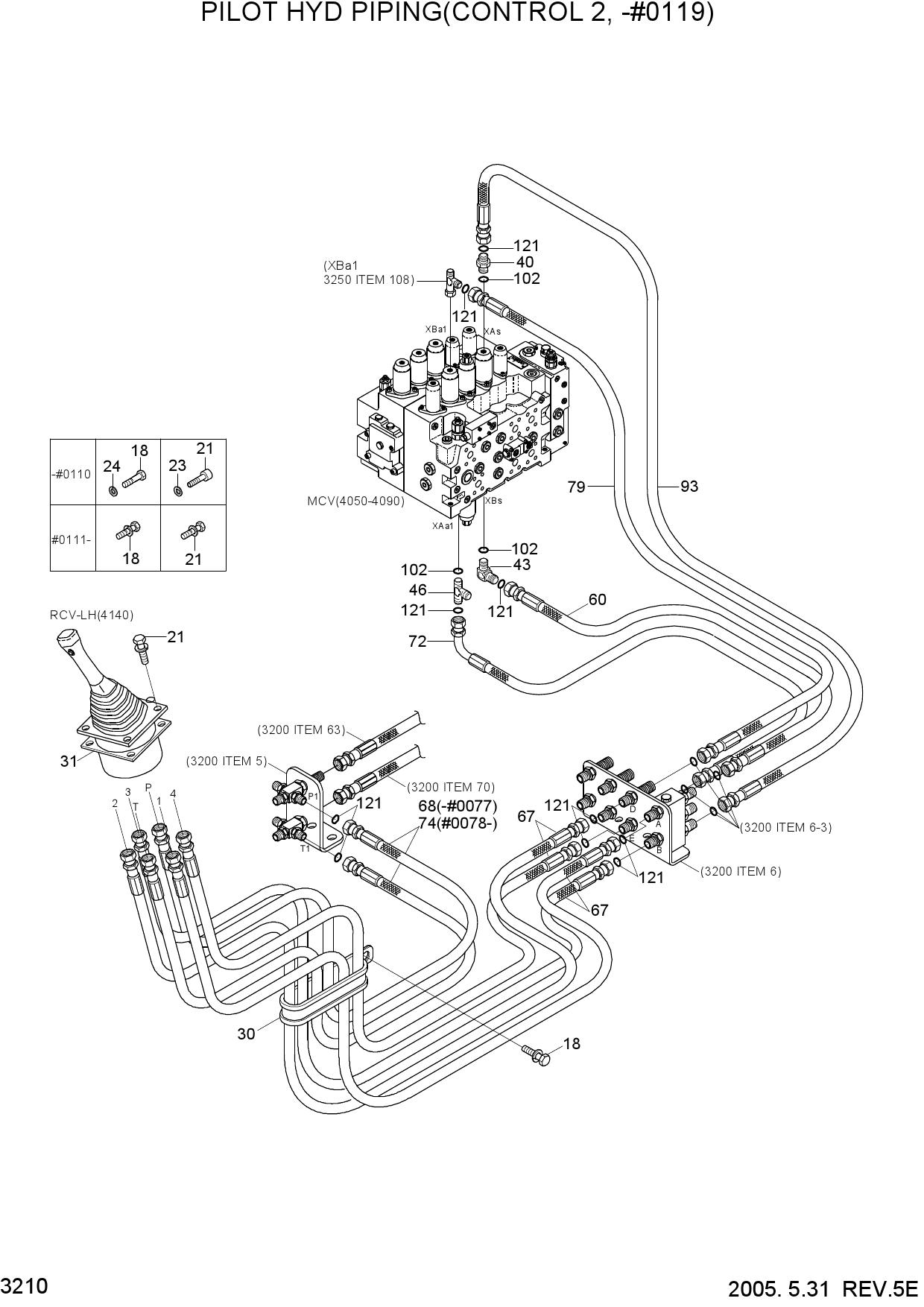

Запчасти для гусеничных экскаваторов Hyundai R305LC-7 PILOT HYD PIPING(CONTROL 2, -#0119)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 18 | S017-100206 | BOLT-HEX | |
| 18 | S037-102526 | BOLT-W/WASHER | |
| 21 | S175-060256 | SCREW-SOCKET RD HD | |
| 21 | S035-063046 | BOLT-W/WASHER | |
| 23 | S403-062006 | WASHER-PLAIN | |
| 24 | S411-100006 | WASHER-SPRING | |
| 30 | 31E7-0310 | CLAMP-HOSE | |
| 31 | 31M6-51061 | SHIM(3.2T) | |
| 40 | P010-110003 | CONNECTOR | |
| 40 | X500-110002 | CONNECTOR-ORFS | |
| 43 | P020-110002 | ELBOW-90 | |
| 43 | X520-110002 | ELBOW-90,ORFS | |
| 46 | P320-060606 | TEE-RUN TYPE | |
| 46 | X820-065252 | TEE-R/TYPE,ORFS | |
| 60 | P400-062030 | HOSE ASSY-COMPACT | |
| 60 | X400-062030 | HOSE ASSY-SYNFLEX,ORFS | |
| 67 | P410-062041 | HOSE ASSY-COMP 0X45 | |
| 67 | X410-062041 | HOSE ASSY-ORFS 0X45 | |
| 68 | P410-062028 | HOSE ASSY-COMP 0X45 | |
| 72 | P420-062032 | HOSE ASSY-COMP 0X90 | |
| 72 | X420-062032 | HOSE ASSY-SYNFLEX,ORFS | |
| 74 | P410-062024 | HOSE ASSY-COMP 0X45 | |
| 74 | P920-062026 | HOSE ASSY-ORFS 0X45 | |
| 79 | P420-062040 | HOSE ASSY-COMP 0X90 | |
| 79 | X420-062040 | HOSE ASSY-SYNFLEX,ORFS | |
| 93 | P400-062037 | HOSE ASSY-COMPACT | |
| 93 | X400-062037 | HOSE ASSY-SYNFLEX,ORFS | |
| 102 | S631-014004 | O-RING | |
| 121 | S621-012001 | O-RING |
