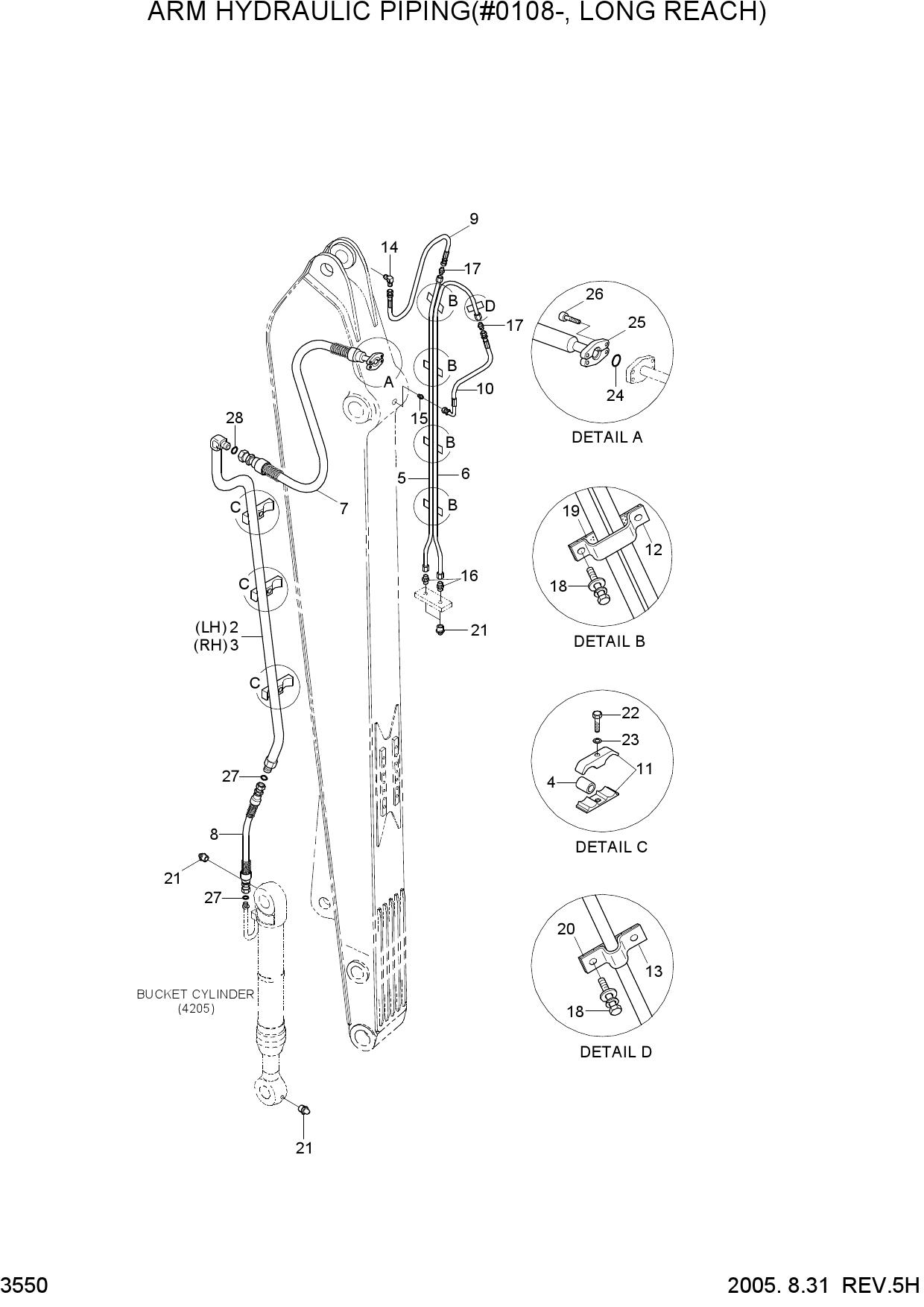

Запчасти для гусеничных экскаваторов Hyundai R305LC-7 ARM HYDRAULIC PIPING(#0108-, LONG REACH)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 2 | 31N8-60610 | PIPE WA | |
| 2 | 31N8-60611 | PIPE WA | |
| 3 | 31N8-60620 | PIPE WA | |
| 3 | 31N8-60621 | PIPE WA | |
| 4 | 31EK-50140 | SPACER-PIPE | |
| 5 | 31N8-60630 | PIPE ASSY | |
| 6 | 31N8-60640 | PIPE ASSY | |
| 7 | P633-126341 | HOSE ASSY-THD FLG | |
| 7 | P943-126337 | HOSE ASSY-THDXFLG | |
| 7 | 31N8-60670 | HOSE ASSY | |
| 8 | P603-086022 | HOSE ASSY-THD | |
| 8 | P913-086022 | HOSE ASSY-ORFS 0X0 | |
| 8 | 31N8-60680 | HOSE ASSY | |
| 9 | P610-042016 | HOSE ASSY-THD 0X45 | |
| 9 | P850-042016 | HOSE ASSY-SYN 0X45 | |
| 10 | P620-042007 | HOSE ASSY-THD 0X90 | |
| 10 | P860-042007 | HOSE ASSY-SYN 0X90 | |
| 11 | 31EK-50340 | CLAMP-PIPE | |
| 12 | 31N6-50230 | CLAMP-PIPE | |
| 13 | 32E1-1025 | CLAMP-PIPE | |
| 14 | 61L1-3909 | ELBOW-90 | |
| 15 | P010-430011 | CONNECTOR | |
| 16 | E131-0625 | CONNECTOR | |
| 17 | E131-0626 | CONNECTOR | |
| 18 | S035-062022 | BOLT-W/WASHER | |
| 19 | S301-103525 | PLATE-RUBBER | |
| 20 | S301-403030 | PLATE-RUBBER,2HOLE | |
| 21 | S651-810002 | NIPPLE-GREASE | |
| 22 | S017-160702 | BOLT-HEX | |
| 23 | S411-160002 | WASHER-SPRING | |
| 24 | Y171-019004 | O-RING | |
| 25 | P173-120102 | FLANGE-HYD,SPLIT | |
| 26 | S109-100306 | BOLT-SOCKET | |
| 27 | S621-014001 | O-RING | |
| 28 | S621-018001 | O-RING |
