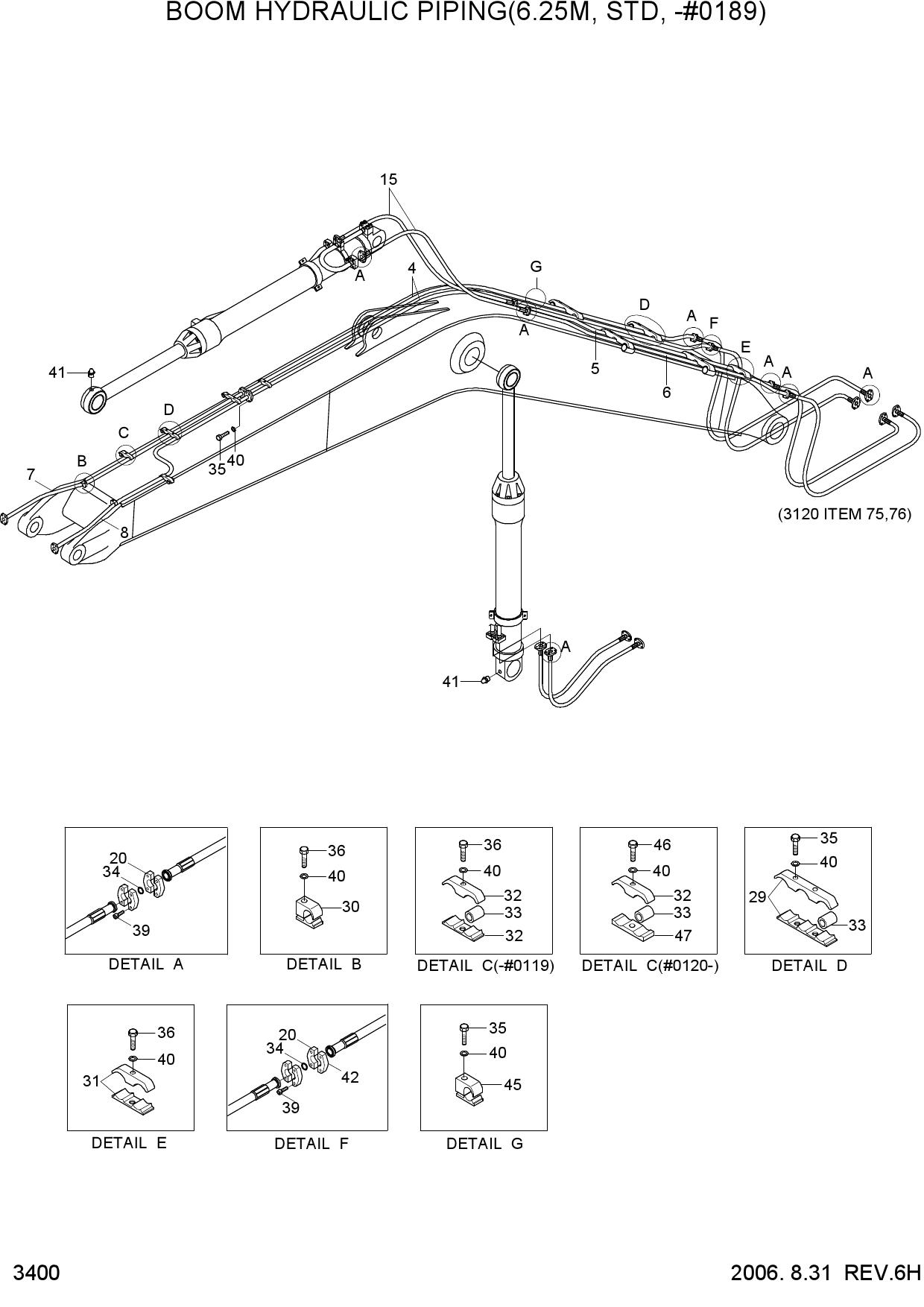

Запчасти для гусеничных экскаваторов Hyundai R305LC-7 BOOM HYDRAULIC PIPING(6.25M,STD,-#0189)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 4 | 31N8-50221 | PIPE ASSY | |
| 5 | 31N8-50231 | PIPE ASSY | |
| 5 | 31N8-50232 | PIPE ASSY | |
| 6 | 31N8-50241 | PIPE ASSY | |
| 6 | 31N8-50242 | PIPE ASSY | |
| 7 | 31N8-50211 | PIPE ASSY | |
| 8 | 31N8-50191 | PIPE ASSY | |
| 15 | P680-167322FL | HOSE ASSY-FLG 0X0 | |
| 20 | P173-160104 | FLANGE-HYD,SPLIT | |
| 29 | 31N6-50340 | CLAMP ASSY | |
| 30 | 31N6-50300 | CLAMP ASSY | |
| 31 | 31N6-50310 | CLAMP ASSY | |
| 32 | 31N6-50320 | CLAMP ASSY | |
| 33 | 31N5-50240 | SPACER-PIPE | |
| 34 | Y171-024004 | O-RING | |
| 35 | S017-16080A | BOLT-HEX(COATING) | |
| 36 | S017-160752 | BOLT-HEX | |
| 36 | S017-160752 | BOLT-HEX | |
| 39 | S109-100306 | BOLT-SOCKET | |
| 40 | S411-160002 | WASHER-SPRING | |
| 41 | S651-810002 | NIPPLE-GREASE | |
| 42 | 31E9-01320 | FLANGE-SPLIT | |
| 45 | 31N6-50330 | CLAMP ASSY | |
| 46 | S019-16080A | BOLT-HEX | |
| 47 | 31N8-50410 | CLAMP |
Для поиска необходимых позиций выберите нужный раздел каталога запасных
частей Hyundai Чтобы купить запчасти для R305LC-7 в компании ООО
«ЮКОЗ ТРЕИД» позвоните нам по телефонам указанным в разделе Контакты или
отправьте сообщение через форму запроса в ближайший к вам филиал.
