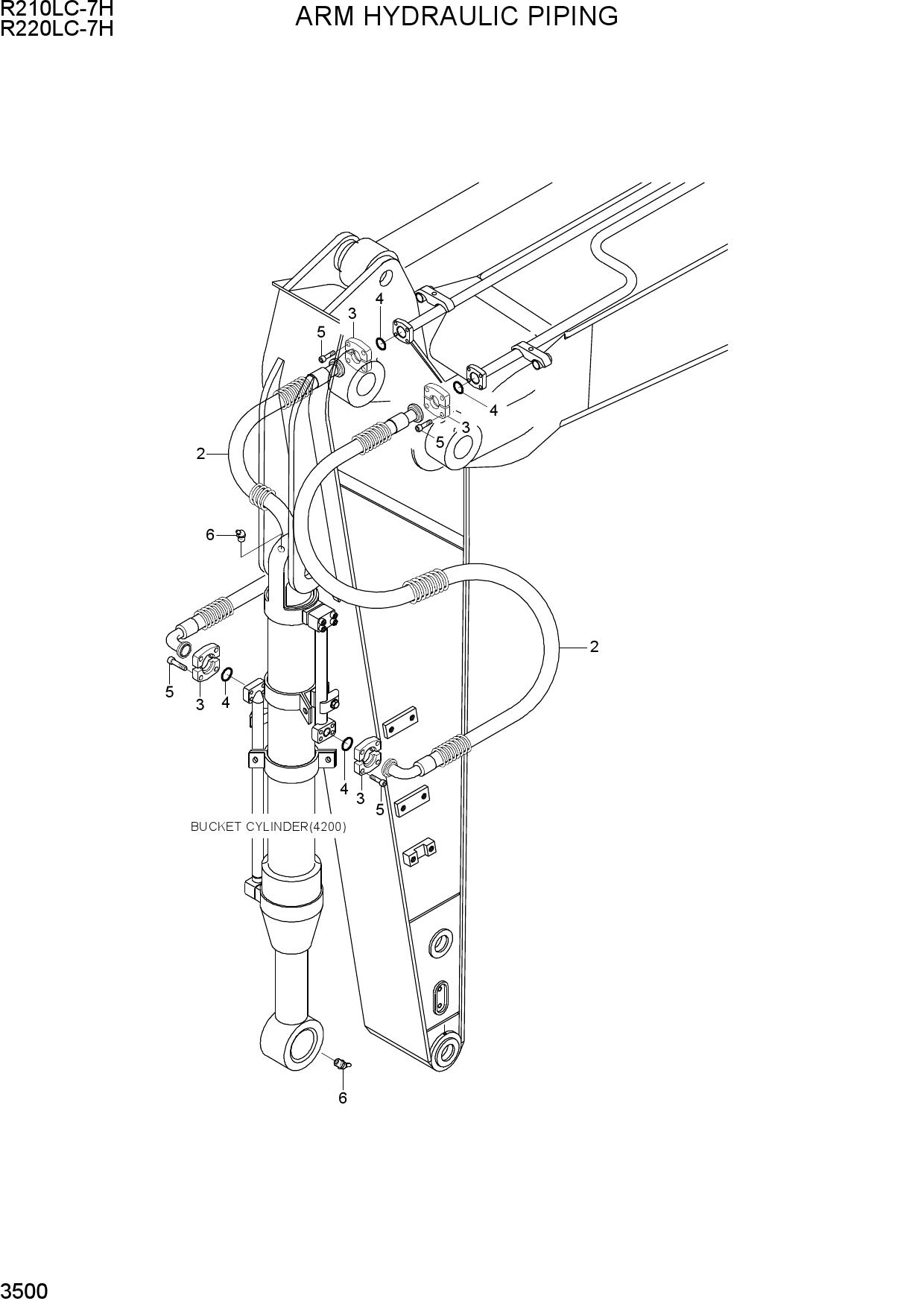

Запчасти для гусеничных экскаваторов Hyundai R210_220LC-7H ARM HYD PIPING
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 2 | 31N6-60131 | HOSE ASSY | |
| 2 | 31N6-60131 | HOSE ASSY | |
| 2 | 31N6-60140 | HOSE ASSY | |
| 3 | P173-120102 | FLANGE-HYD,SPLIT | |
| 4 | Y171-019004 | O-RING | |
| 5 | S109-100306 | BOLT-SOCKET | |
| 6 | S651-810002 | NIPPLE-GREASE |
