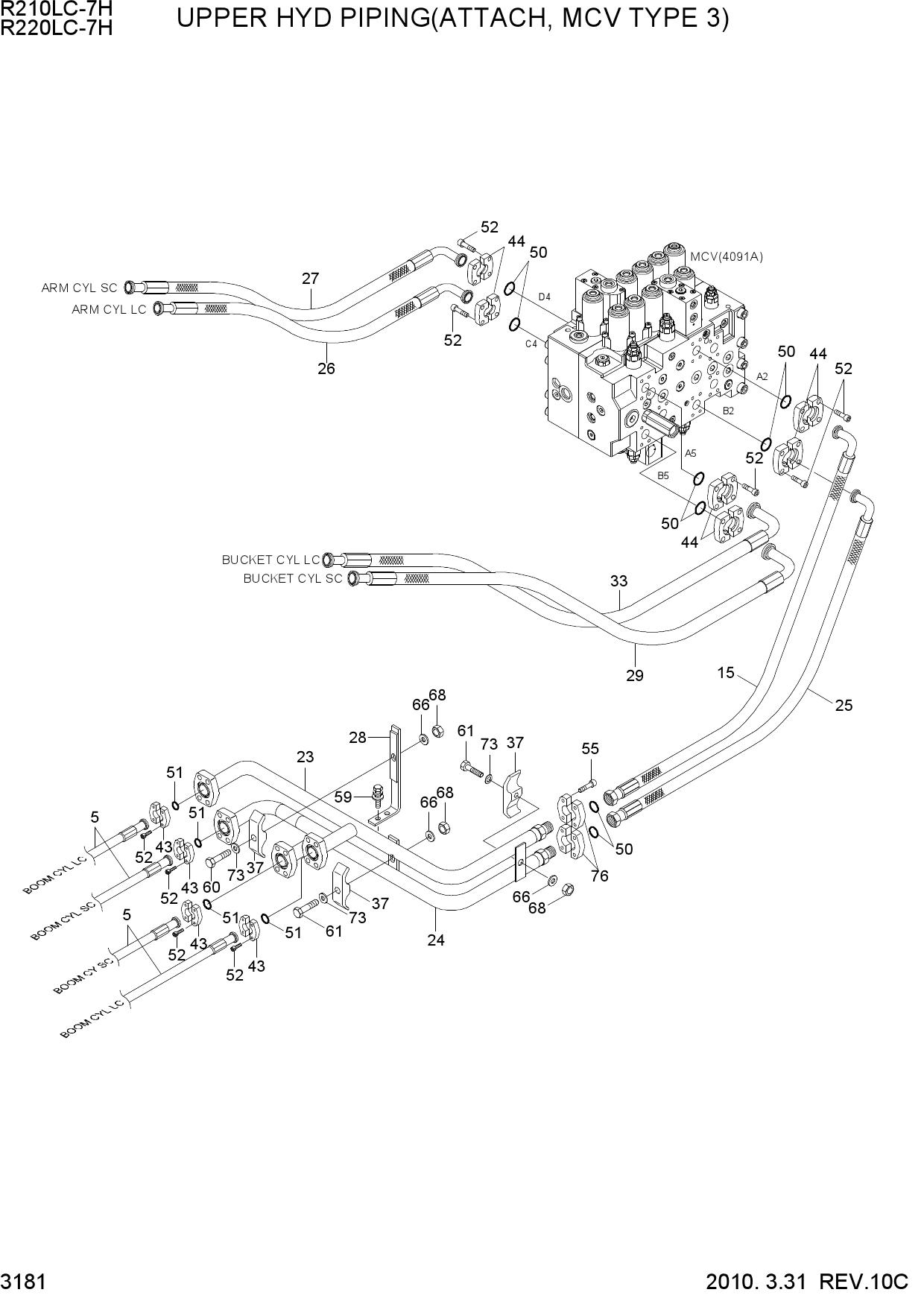

Запчасти для гусеничных экскаваторов Hyundai R210_220LC-7H UPPER HYD PIPING(ATTACH, MCV TYPE 3)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 5 | P683-127316 | HOSE ASSY-FLG 0X0 | |
| 15 | 31N6-13480 | HOSE ASSY | |
| 23 | 31N6-13370 | PIPE ASSY | |
| 24 | 31N6-13380 | PIPE ASSY | |
| 25 | 31N6-13470 | HOSE ASSY-0X90 | |
| 27 | 31N6-13500 | HOSE ASSY-0X90 | |
| 28 | 31N6-13070 | BRACKET | |
| 29 | 31N6-13510 | HOSE ASSY | |
| 33 | 31N6-13521 | HOSE ASSY | |
| 37 | 31EM-12170 | CLAMP-PIPE | |
| 43 | P173-120102 | FLANGE-HYD,SPLIT | |
| 44 | P173-160104 | FLANGE-HYD,SPLIT | |
| 50 | Y171-024004 | O-RING | |
| 51 | Y171-019004 | O-RING | |
| 52 | S109-100306 | BOLT-SOCKET | |
| 55 | S109-100456 | BOLT-SOCKET | |
| 59 | S037-123026 | BOLT-W/WASHER | |
| 60 | S017-100856 | BOLT-HEX | |
| 61 | S017-100706 | BOLT-HEX | |
| 66 | S403-10100B | WASHER-PLAIN | |
| 68 | S205-10100B | NUT-HEX | |
| 73 | S411-100006 | WASHER-SPRING | |
| 76 | 31E9-01320 | FLANGE-SPLIT |
