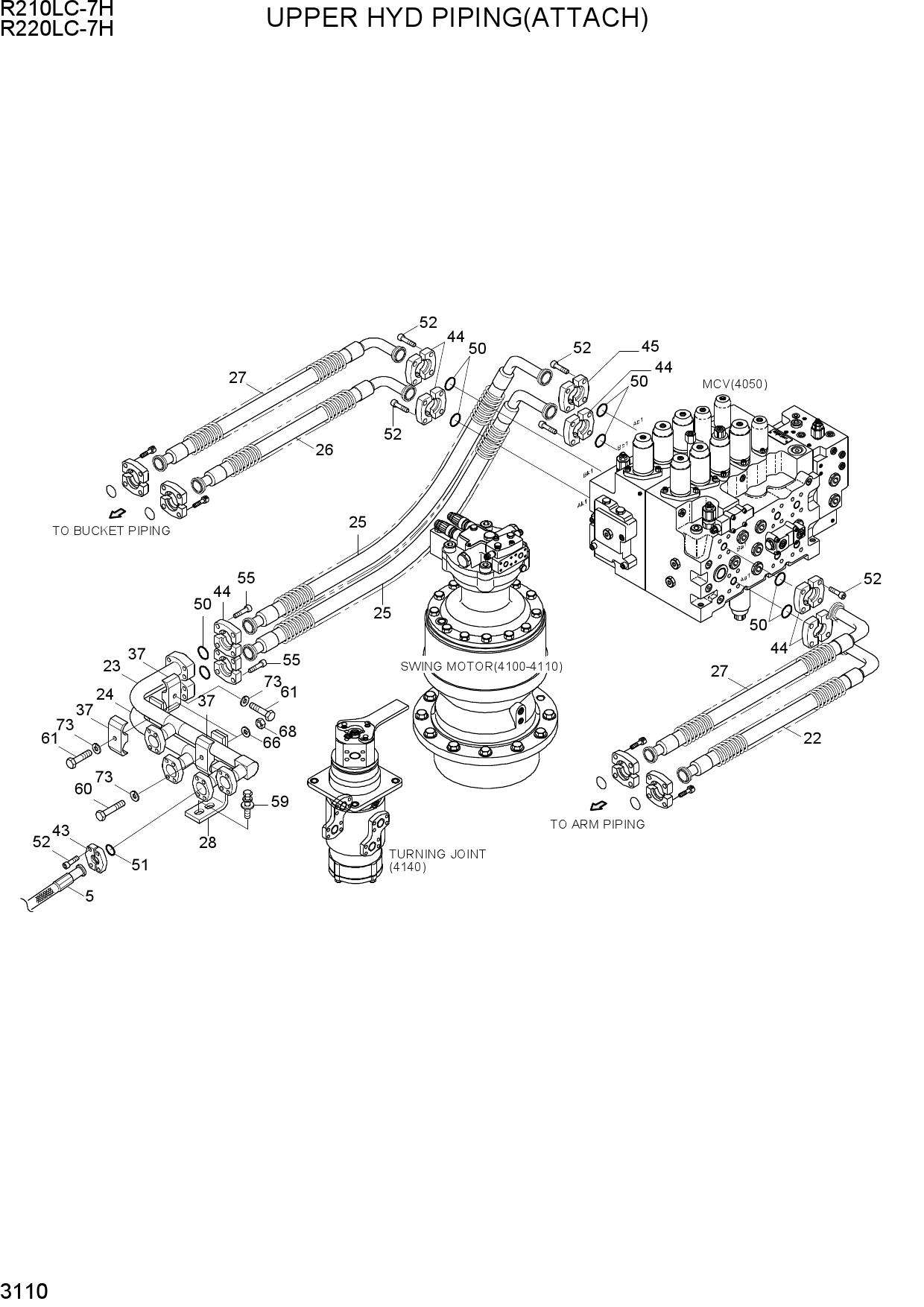

Запчасти для гусеничных экскаваторов Hyundai R210_220LC-7H UPPER HYD PIPING(ATTACH)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 5 | P683-127316 | HOSE ASSY-FLG 0X0 | |
| 22 | 31N6-15080 | HOSE ASSY | |
| 23 | 31N6-13011 | PIPE ASSY | |
| 24 | 31N6-13021 | PIPE ASSY | |
| 25 | 31N6-13030 | HOSE ASSY-0X90 | |
| 26 | 31N6-13051 | HOSE ASSY-0X90 | |
| 27 | 31N6-13061 | HOSE ASSY-0X90 | |
| 28 | 31N6-13070 | BRACKET | |
| 37 | 31EM-12170 | CLAMP-PIPE | |
| 43 | P173-120102 | FLANGE-HYD,SPLIT | |
| 44 | P173-160104 | FLANGE-HYD,SPLIT | |
| 45 | 31E9-01320 | FLANGE-SPLIT | |
| 50 | Y171-024004 | O-RING | |
| 51 | Y171-019004 | O-RING | |
| 52 | S109-100306 | BOLT-SOCKET | |
| 55 | S109-100456 | BOLT-SOCKET | |
| 59 | S037-123022 | BOLT-W/WASHER | |
| 60 | S017-100852 | BOLT-HEX | |
| 61 | S017-100702 | BOLT-HEX | |
| 66 | S403-101002 | WASHER-PLAIN | |
| 68 | S207-101002 | NUT-HEX | |
| 73 | S411-100002 | WASHER-SPRING |
