- PUMP MOUNTING
- HYDRAULIC TANK
- UPPER HYD PIPING(BASE)
- UPPER HYD PIPING(ATTACH)
- UPPER HYD PIPING(TRAVEL)
- UPPER HYD PIPING(BASE, MCV TYPE 2)
- UPPER HYD PIPING(ATTACH, MCV TYPE 2)
- UPPER HYD PIPING(TRAVEL, MCV TYPE 2)
- UPPER HYD PIPING(BASE, MCV TYPE 3)
- UPPER HYD PIPING(ATTACH, MCV TYPE 3)
- UPPER HYD PIPING(TRAVEL, MCV TYPE 3)
- PILOT HYD PIPING(CONTROL 1)
- PILOT HYD PIPING(CONTROL 1, MCV TYPE 2)
- PILOT HYD PIPING(CONTROL 2)
- PILOT HYD PIPING(CONTROL 2, MCV TYPE 2)
- PILOT HYD PIPING(CONTROL 3)
- PILOT HYD PIPING(CONTROL 3, MCV TYPE 2)
- PILOT HYD PIPING(BASE 1)
- PILOT HYD PIPING(BASE 2)
- PILOT HYD PIPING(BASE 3)
- PILOT HYD PIPING(BASE 1, MCV TYPE 2)
- PILOT HYD PIPING(BASE 2, MCV TYPE 2)
- PILOT HYD PIPING(BASE 3, MCV TYPE 2)
- PILOT HYD PIPING(BASE 1, MCV TYPE 3)
- PILOT HYD PIPING(BASE 2, MCV TYPE 3)
- PILOT HYD PIPING(BASE 3, MCV TYPE 3)
- TRAVEL HYD PIPING
- BOOM HYD PIPING(5.68M, -#0196, STD)
- BOOM HYD PIPING(5.68M, #0197-, STD)
- BOOM HYD PIPING(5.2M, SHORT, #0828-)
- BOOM HYDRAULIC PIPING(LONG REACH)
- BOOM GREASE LUB SYSTEM(5.68M, STD)
- BOOM GREASE LUB SYSTEM(5.2M, SHORT)
- BOOM GREASE LUB SYSTEM(L/REACH)
- BOOM SAFETY LOCK SYSTEM
- BOOM SAFETY LOCK SYSTEM(MCV TYPE 2)
- QUICK CLAMP PIPING
- QUICK CLAMP(HOOK TYPE, #0197-)
- QUICK CLAMP(CLOSE TYPE, #0197-)
- QUICK CLAMP CYLINDER(#0197-)
- QUICK CLAMP ASSY
- QUICK CLAMP CYLINDER
- QUICK CLAMP ASSY(#0153-)
- ARM HYD PIPING
- ARM HYD PIPING(L/REACH)
- ARM HYD PIPING(3.9M, LONG)
- ARM SAFETY LOCK SYSTEM
- ARM SAFETY LOCK SYSTEM(MCV TYPE 2)
- ATTACH PIPING KIT(S & D/ACTING, BM 5.68)
- ATTACH PIPING KIT(S & D/ACTING, BM 5.20)
- DOUBLE ACTING MAIN PIPING KIT
- SINGLE PEDAL(DOUBLE ACTING)
- SINGLE ACTING MAIN PIPING KIT
- S/ACTING MAIN PIPING KIT(MCV TYPE 2, 3)
- ROTATING MAIN PIPING
- ROTATING ATTATCH PIPING

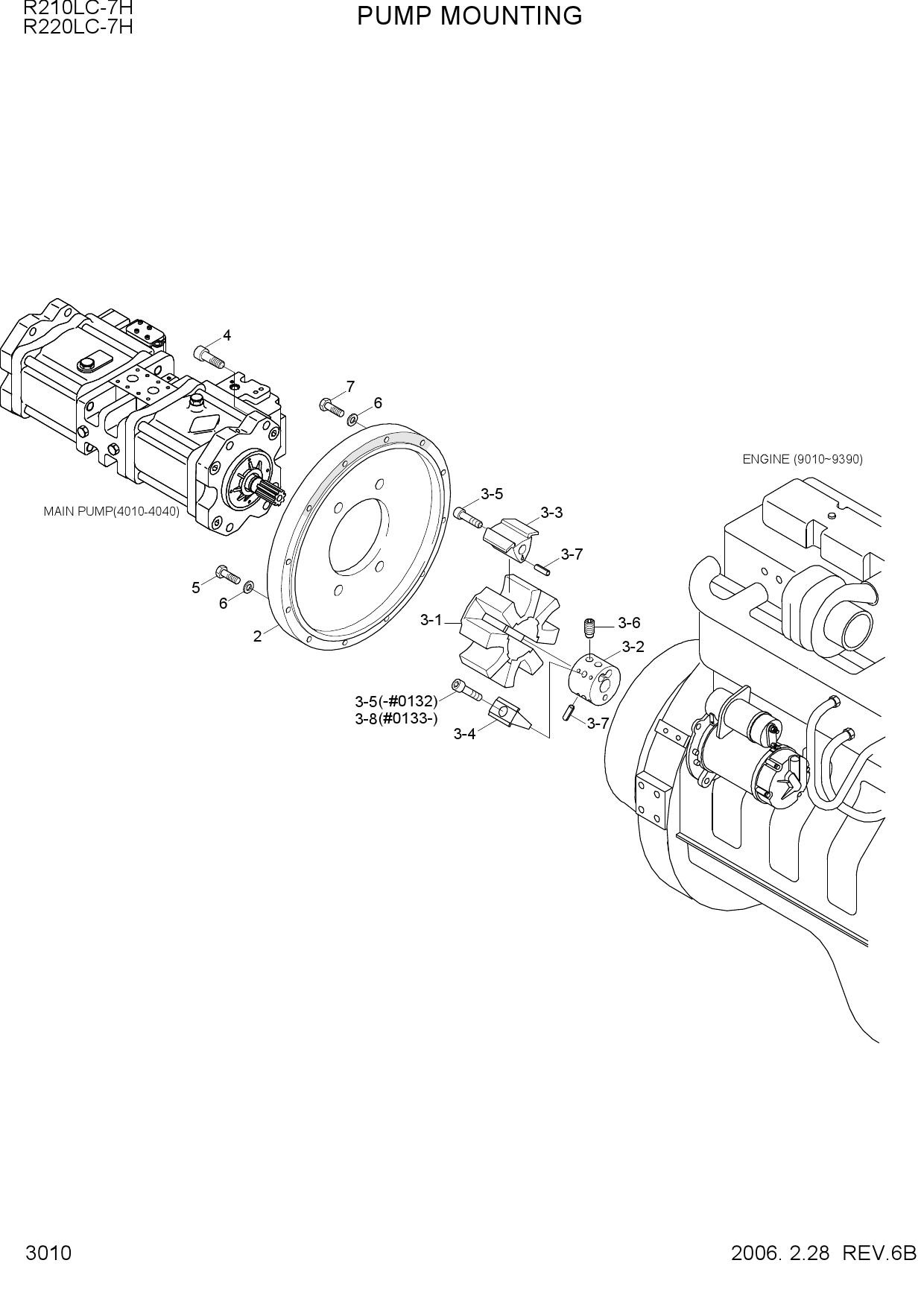

Запчасти для гусеничных экскаваторов Hyundai R210_220LC-7H PUMP MOUNTING
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 2 | 11EM-10010 | HOUSING | |
| 3 | 11EM-12020 | COUPLING ASSY | |
| 3 | 11EM-12030 | COUPLING ASSY | |
| 3-1 | 11E1-1507 | ELEMENT | |
| 3-1 | 13E6-16040 | ELEMENT | |
| 3-2 | 11E1-1508 | HUB-SPLINE | |
| 3-3 | 11E1-1509 | INSERT-A | |
| 3-3 | 13E6-16050 | INSERT-A | |
| 3-4 | 11E1-1510 | INSERT-R | |
| 3-4 | 13E6-16060 | INSERT-R | |
| 3-5 | S109-160606 | BOLT-SOCKET | |
| 3-5 | S107-160602 | BOLT-SOCKET | |
| 3-6 | 11E1-1511 | BOLT-CLAMP | |
| 3-7 | S472-500102 | PIN-SPRING | |
| 3-8 | S107-160402 | BOLT-SOCKET | |
| 4 | S109-200506 | BOLT-SOCKET | |
| 5 | S017-100952 | BOLT-HEX | |
| 6 | S403-102002 | WASHER-PLAIN | |
| 7 | S017-101002 | BOLT-HEX |
