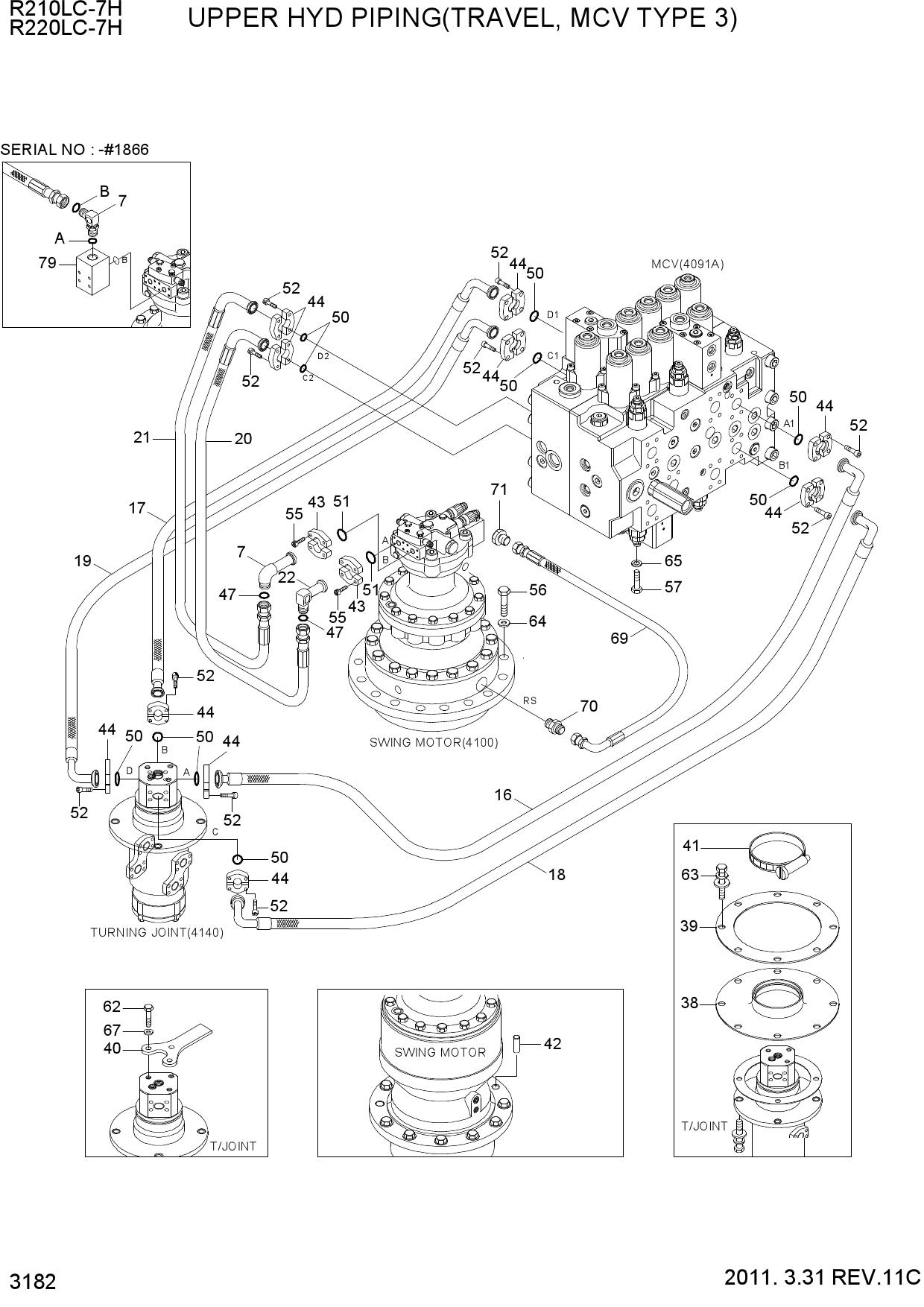

Запчасти для гусеничных экскаваторов Hyundai R210_220LC-7H UPPER HYD PIPING(TRAVEL, MCV TYPE 3)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 7 | X520-110018 | ELBOW-90,ORFS | |
| 7 | 31N8-11312 | ELBOW-90 | |
| 16 | 31N6-13430 | HOSE ASSY-90X90 | |
| 17 | 31N6-13440 | HOSE ASSY-90X90 | |
| 18 | 31N6-13450 | HOSE ASSY-0X90 | |
| 19 | 31N6-13460 | HOSE ASSY-0X90 | |
| 20 | 31N6-13410 | HOSE ASSY-0X90 | |
| 21 | 31N6-13421 | HOSE ASSY-0X90 | |
| 21 | 31N6-13640 | HOSE ASSY | |
| 22 | 31N8-11322 | ELBOW-90,ORFS | |
| 38 | 31N1-40941 | RUBBER-T/JOINT | |
| 39 | 31N1-40951 | COVER-T/JOINT | |
| 40 | 31N1-40961 | BRACKET-T/JOINT | |
| 41 | S520-130000 | CLAMP-HOSE | |
| 42 | 31E4-3039 | PIN-DOWEL | |
| 43 | P173-120102 | FLANGE-HYD,SPLIT | |
| 43 | P173-120102 | FLANGE-HYD,SPLIT | |
| 44 | P173-160104 | FLANGE-HYD,SPLIT | |
| 47 | S621-018001 | O-RING | |
| 47 | S621-018001 | O-RING | |
| 50 | Y171-024004 | O-RING | |
| 51 | Y171-019004 | O-RING | |
| 52 | S109-100306 | BOLT-SOCKET | |
| 55 | S109-100456 | BOLT-SOCKET | |
| 56 | S017-20075D | BOLT-HEX | |
| 57 | S017-120356 | BOLT-HEX | |
| 58 | S109-100706 | BOLT-SOCKET | |
| 62 | S017-140306 | BOLT-HEX | |
| 63 | S037-102026 | BOLT-W/WASHER | |
| 64 | S441-200006 | WASHER-HARDENED | |
| 65 | S403-12100B | WASHER-PLAIN | |
| 67 | S411-140006 | WASHER-SPRING | |
| 69 | P420-062018 | HOSE ASSY-COMPACT | |
| 70 | P010-430015 | CONNECTOR | |
| 71 | 31EM-22090 | PLUG | |
| 79 | 31N8-16220 | FLANGE |
