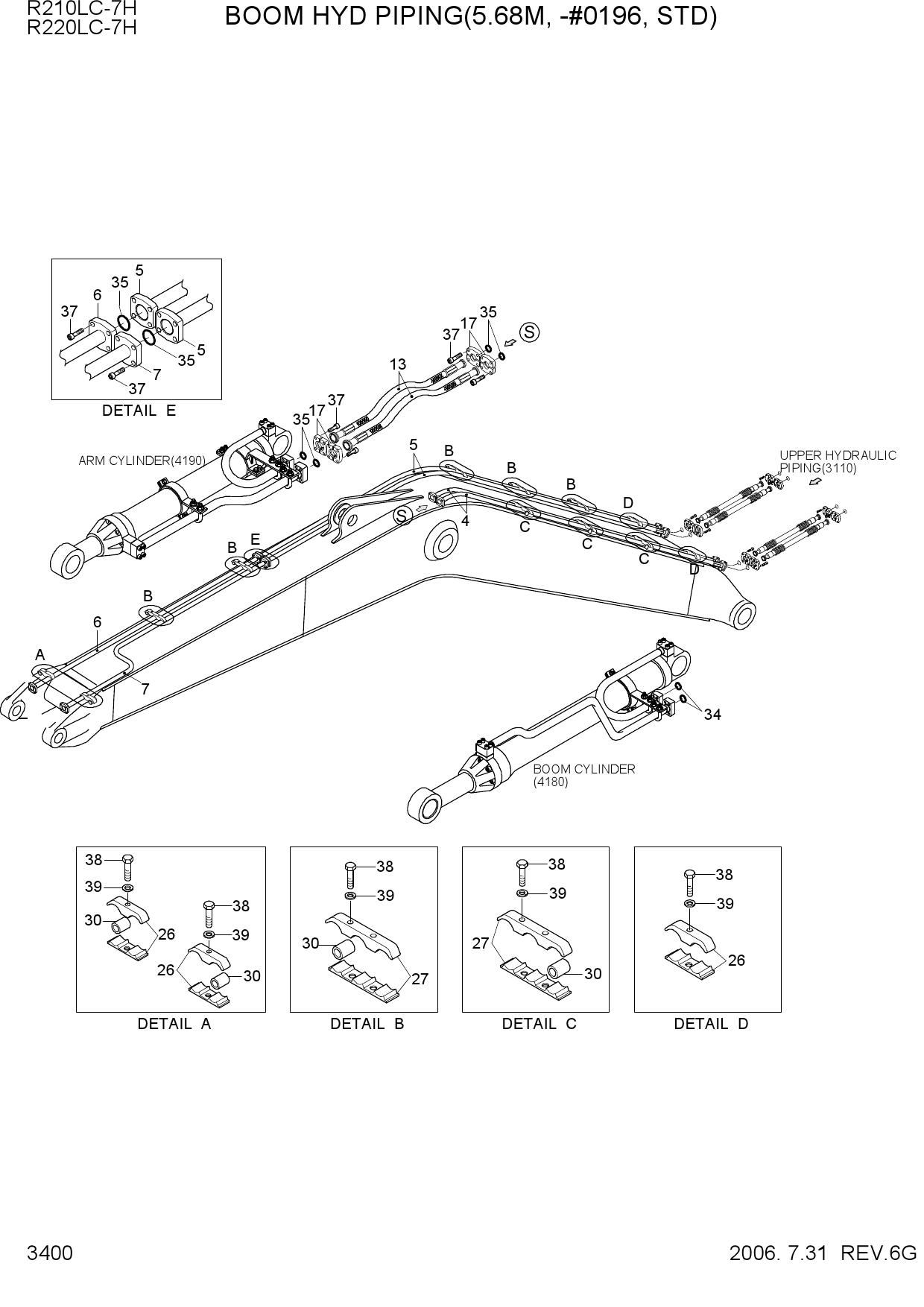

Запчасти для гусеничных экскаваторов Hyundai R210_220LC-7H BOOM HYD PIPING(5.68M, -#0196, STD)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 4 | 31N6-50141 | PIPE ASSY | |
| 5 | 31N6-50151 | PIPE ASSY | |
| 6 | 31N6-50161 | PIPE ASSY | |
| 7 | 31N6-50171 | PIPE ASSY | |
| 13 | P680-167322 | HOSE ASSY-FLG | |
| 17 | P173-160104 | FLANGE-HYD,SPLIT | |
| 18 | P173-120102 | FLANGE-HYD,SPLIT | |
| 26 | 31N6-50310 | CLAMP ASSY | |
| 27 | 31N6-50330 | CLAMP ASSY | |
| 30 | 31N5-50230 | SPACER-PIPE | |
| 34 | Y171-019004 | O-RING | |
| 35 | Y171-024004 | O-RING | |
| 37 | S109-100306 | BOLT-SOCKET | |
| 38 | S017-160756 | BOLT-HEX | |
| 39 | S411-160006 | WASHER-SPRING |
