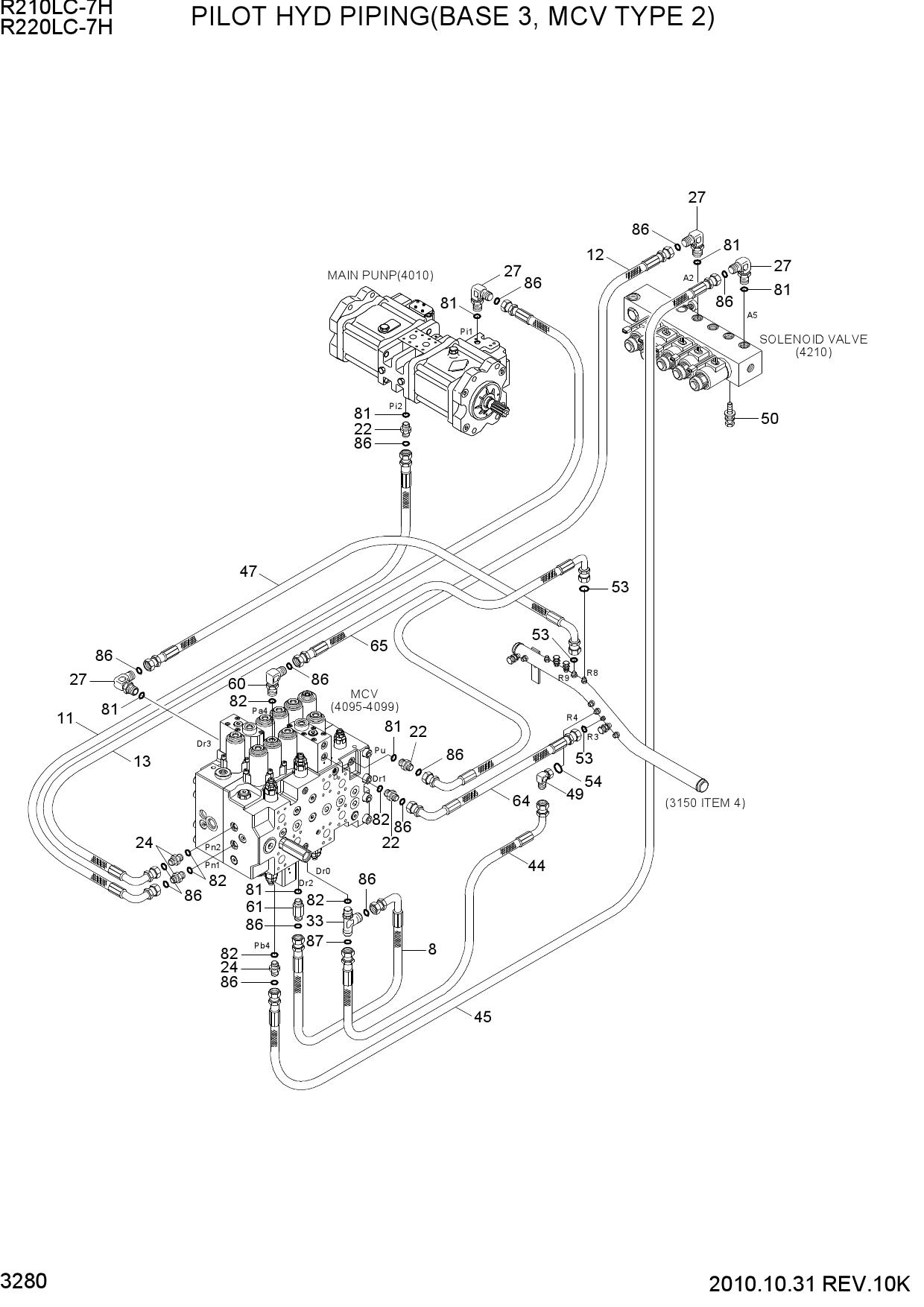

Запчасти для гусеничных экскаваторов Hyundai R210_220LC-7H PILOT HYD PIPING(BASE 3, MCV TYPE 2)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 8 | P930-042009 | HOSE ASSY-ORFS 0X90 | |
| 8 | X420-042009 | HOSE ASSY-ORFS 0X90 | |
| 11 | P930-043045 | HOSE ASSY-ORFS 0X90 | |
| 12 | P930-042040 | HOSE ASSY-ORFS 0X90 | |
| 13 | P930-043054 | HOSE ASSY-ORFS 0X90 | |
| 22 | X500-110001 | CONNECTOR-ORFS | |
| 24 | X500-110013 | CONNECTOR-ORFS | |
| 27 | X520-110001 | ELBOW-90,ORFS | |
| 33 | X820-065152 | TEE-R/TYPE,ORFS | |
| 44 | P930-062016 | HOSE ASSY-ORFS 0X90 | |
| 44 | X400-062016 | HOSE ASSY-SYNF,ORFS | |
| 45 | P910-042038 | HOSE ASSY-ORFS 0X0 | |
| 45 | X400-042038 | HOSE ASSY-SYNF,ORFS | |
| 47 | P930-042010 | HOSE ASSY-ORFS 0X90 | |
| 47 | X420-042010 | HOSE ASSY-SYNFLEX,ORFS | |
| 49 | X850-525200 | ELBOW-90,SWIVEL,ORFS | |
| 50 | S035-082526 | BOLT-W/WASHER | |
| 53 | S621-011001 | O-RING | |
| 54 | S621-012001 | O-RING | |
| 60 | X520-110012 | ELBOW-90,ORFS | |
| 61 | 31N8-40100 | CONNECTOR-LONG,ORFS | |
| 64 | P930-042004 | HOSE ASSY-ORFS 0X90 | |
| 64 | X420-042004 | HOSE ASSY-ORFS 0X90 | |
| 65 | P930-042008 | HOSE ASSY-ORFS 0X90 | |
| 65 | X420-042004 | HOSE ASSY-ORFS 0X90 | |
| 81 | S631-011004 | O-RING | |
| 82 | S631-014004 | O-RING | |
| 86 | S621-011001 | O-RING | |
| 87 | S621-012001 | O-RING |
