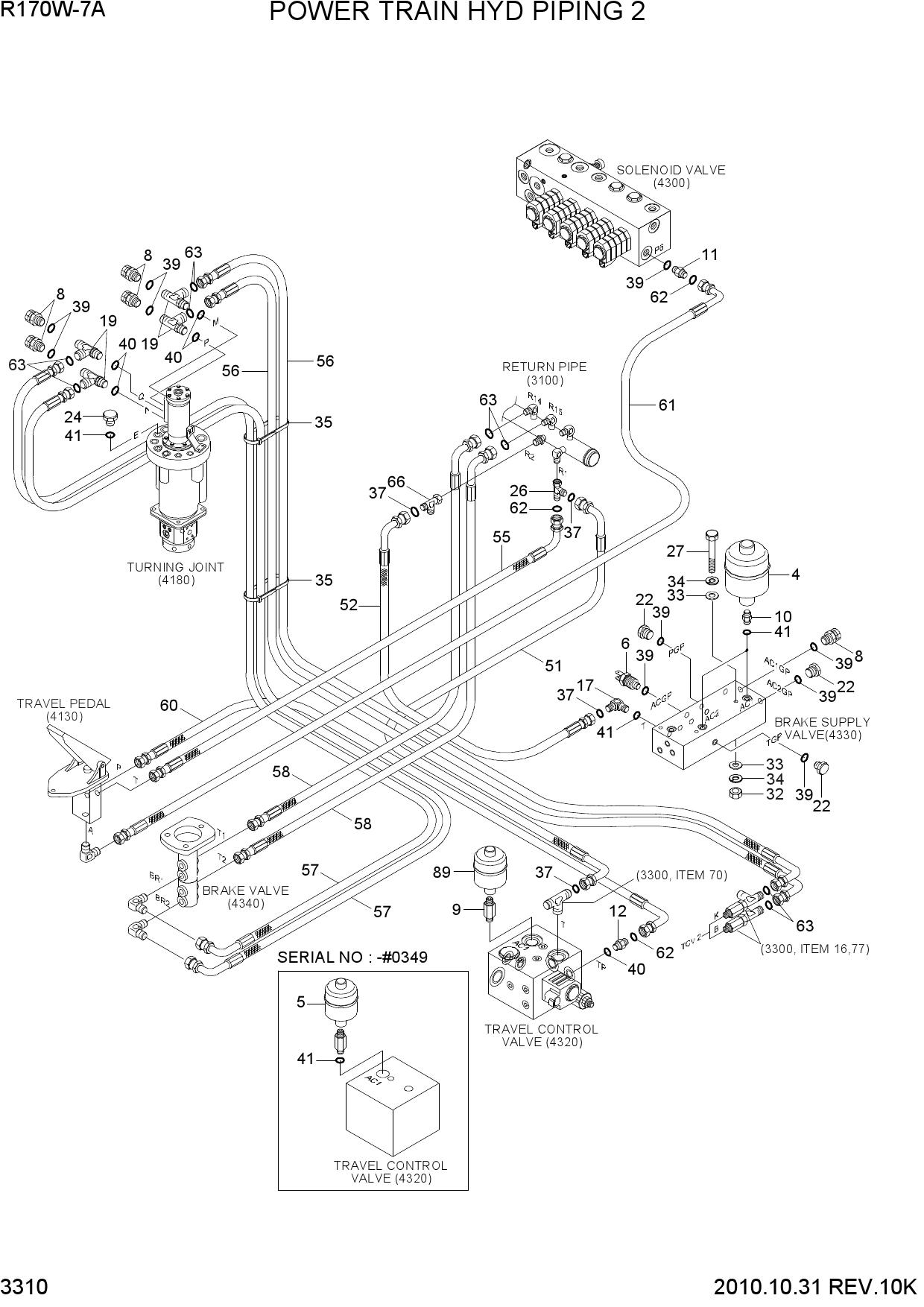

Запчасти для колесных экскаваторов Hyundai R170W-7A POWER TRAIN HYD PIPING 2
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 4 | 81L1-0003 | ACCUMULATOR | |
| 5 | 31EC-02190 | ACCUMULATOR | |
| 6 | 31LF-00500 | SWITCH-PRESSURE | |
| 8 | 31EK-11130 | COUPLING-SCREW | |
| 9 | 31N6-30120 | CONNECTOR | |
| 9 | 31Q6-30160 | CONNECTOR-LONG | |
| 10 | 31N6-30110 | CONNECTOR | |
| 11 | X500-110001 | CONNECTOR-ORFS | |
| 12 | X500-110013 | CONNECTOR-ORFS | |
| 17 | X520-110003 | ELBOW-90,ORFS | |
| 19 | 31N5-30040 | TEE | |
| 22 | P220-110102 | PLUG-HEX | |
| 24 | P220-110104 | PLUG-HEX | |
| 26 | X840-535153 | TEE-R/TYPE,ORFS | |
| 27 | S017-100906 | BOLT-HEX | |
| 32 | S205-101006 | NUT-HEX | |
| 33 | S403-10200B | WASHER-PLAIN | |
| 34 | S411-100006 | WASHER-SPRING | |
| 35 | S551-050203 | CLAMP-BAND | |
| 37 | S621-014001 | O-RING | |
| 39 | S631-011004 | O-RING | |
| 40 | S631-014004 | O-RING | |
| 41 | S631-018004 | O-RING | |
| 41 | S631-018004 | O-RING | |
| 51 | P930-082024 | HOSE ASSY-ORFS 0X90 | |
| 52 | P910-082026 | HOSE ASSY-ORFS 0X0 | |
| 55 | X420-042050 | HOSE ASSY-SYNFLEX,ORFS | |
| 56 | P930-062047 | HOSE ASSY-ORFS 0X90 | |
| 57 | X420-062041 | HOSE ASSY-SYNFLEX,ORFS | |
| 58 | X420-062050 | HOSE ASSY-ORFS 0X90 | |
| 60 | X420-042044 | HOSE ASSY-ORFS 0X90 | |
| 61 | X420-042079 | HOSE ASSY-ORFS 0X90 | |
| 62 | S621-011001 | O-RING | |
| 63 | S621-012001 | O-RING | |
| 66 | X840-535253 | TEE-R/TYPE,SWIVEL,ORFS | |
| 89 | 31E3-3187 | ACCUMULATOR |
