- PUMP MOUNTING
- HYDRAULIC TANK
- UPPER HYD PIPING(BASE)
- UPPER HYD PIPING(ATTACH)
- UPPER HYD PIPING 1(ADJUST BOOM)
- UPPER HYD PIPING 2(ADJUST BOOM)
- UPPER HYD PIPING(TRAVEL)
- PILOT HYD PIPING(CONTROL 1)
- PILOT HYD PIPING(CONTROL 2)
- PILOT HYD PIPING(BASE 1)
- PILOT HYD PIPING(BASE 2)
- PILOT HYD PIPING(BASE 3)
- PILOT HYD PIPING(BASE 4)
- PILOT HYD PIPING(BASE 5)
- PILOT HYD PIPING(4 OUTRIGGER)
- POWER TRAIN HYD PIPING 1
- POWER TRAIN HYD PIPING 2
- LOWER HYD PIPING 1
- LOWER HYD PIPING 2
- LOWER HYD PIPING(REAR BLADE)
- LOWER HYD PIPING(REAR OUTRIGGER)
- LOWER HYD PIPING 1(4 OUTRIGGER)
- LOWER HYD PIPING 2(4 OUTRIGGER)
- LOWER HYD PIPING 1(F/OUT R/BLD)
- LOWER HYD PIPING 2(F/OUT R/BLD)
- LOWER HYD PIPING 1(F/BLD R/OUT)
- LOWER HYD PIPING 2(F/BLD R/OUT)
- LOWER HYD PIPING 1(F/BLD R/BLD)
- LOWER HYD PIPING 2(F/BLD R/BLD)
- BOOM HYD PIPING(5.1M, STD)
- BOOM HYD PIPING(ADJUST BOOM)
- BOOM GREASE LUB SYSTEM(5.1M,STD)
- BOOM GREASE LUB SYSTEM(ADJUST BOOM)
- BOOM SAFETY LOCK SYSTEM
- ARM HYD PIPING(2.6M)
- ARM HYD PIPING(2.2M, STD)
- ARM HYD PIPING(3.1M)
- ARM SAFETY LOCK SYSTEM
- QUICK CLAMP HYD PIPING
- QUICK CLAMP(HOOK TYPE)
- QUICK CLAMP(CLOSE TYPE)
- QUICK CLAMP CYLINDER
- QUICK CLAMP(HOOK TYPE)
- QUICK CLAMP CYLINDER
- QUICK CLAMP(CLOSE TYPE)
- ATTACH PIPING KIT(S & D/ACTING)
- DOUBLE ACTING MAIN PIPING KIT
- SINGLE PEDAL(DOUBLE ACTING)
- D/ACT MAIN PIPING KIT(ADJUST BOOM)
- D/ACT ATTACH PIPING KIT(ADJUST BOOM)
- SINGLE ACTING MAIN PIPING KIT

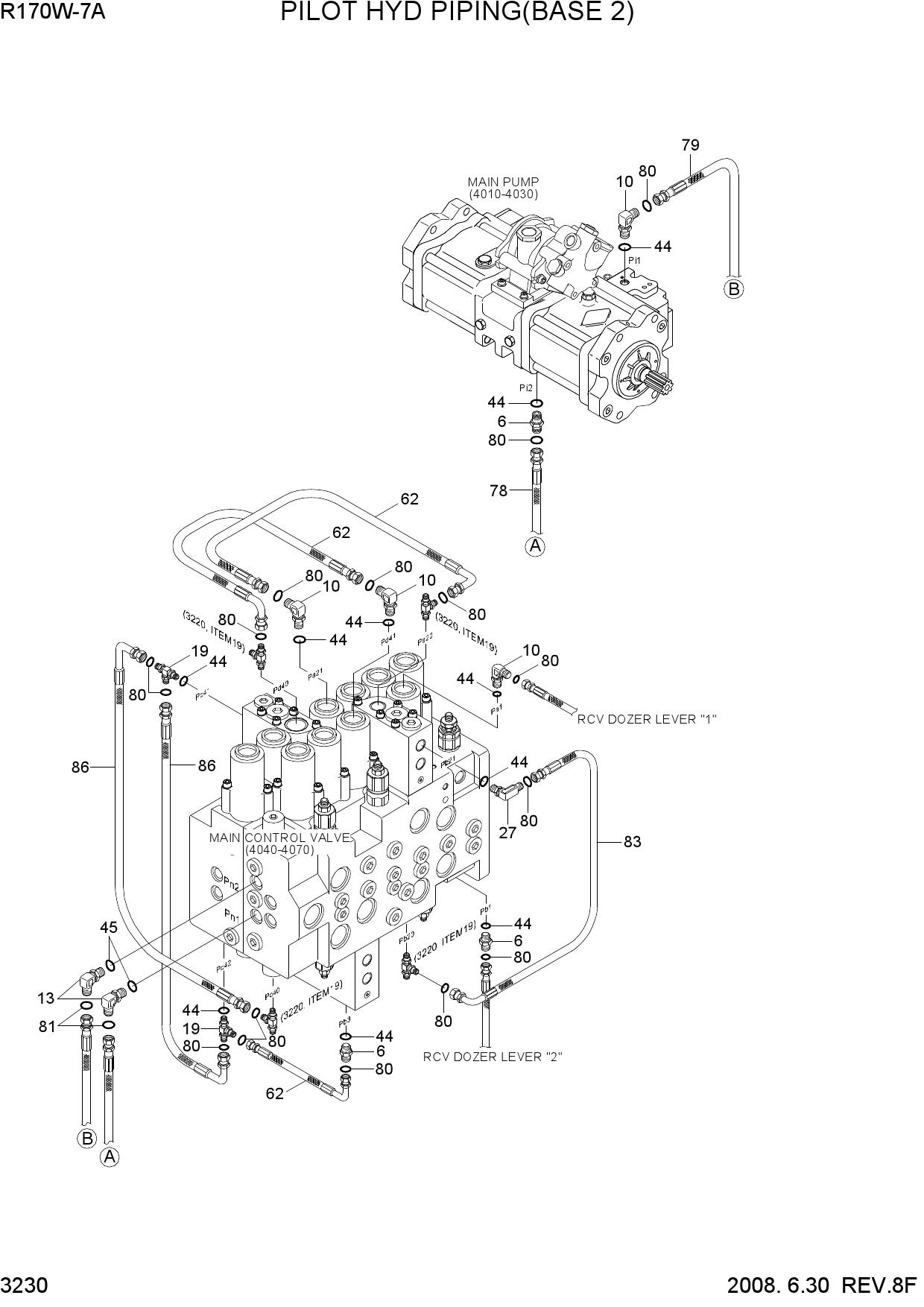

Запчасти для колесных экскаваторов Hyundai R170W-7A PILOT HYD PIPING(BASE 2)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 6 | X500-110001 | CONNECTOR-ORFS | |
| 10 | X520-110001 | ELBOW-90,ORFS | |
| 13 | X520-110012 | ELBOW-90,ORFS | |
| 19 | X820-045151 | TEE-R/TYPE,ORFS | |
| 27 | 31N6-25110 | ELBOW-90,ORFS,LONG | |
| 44 | S631-011004 | O-RING | |
| 45 | S631-014004 | O-RING | |
| 62 | X420-042010 | HOSE ASSY-SYNFLEX,ORFS | |
| 78 | P910-043043 | HOSE ASSY-ORFS 0X0 | |
| 79 | P910-043049 | HOSE ASSY-ORFS 0X0 | |
| 80 | S621-011001 | O-RING | |
| 81 | S621-012001 | O-RING | |
| 83 | X420-042020 | HOSE ASSY-SYNFLEX,ORFS | |
| 86 | X420-042022 | HOSE ASSY-SYNFLEX,ORFS |
