- PUMP MOUNTING
- HYDRAULIC TANK
- UPPER HYD PIPING(BASE)
- UPPER HYD PIPING(ATTACH)
- UPPER HYD PIPING 1(ADJUST BOOM)
- UPPER HYD PIPING 2(ADJUST BOOM)
- UPPER HYD PIPING(TRAVEL)
- PILOT HYD PIPING(CONTROL 1)
- PILOT HYD PIPING(CONTROL 2)
- PILOT HYD PIPING(BASE 1)
- PILOT HYD PIPING(BASE 2)
- PILOT HYD PIPING(BASE 3)
- PILOT HYD PIPING(BASE 4)
- PILOT HYD PIPING(BASE 5)
- PILOT HYD PIPING(4 OUTRIGGER)
- POWER TRAIN HYD PIPING 1
- POWER TRAIN HYD PIPING 2
- LOWER HYD PIPING 1
- LOWER HYD PIPING 2
- LOWER HYD PIPING(REAR BLADE)
- LOWER HYD PIPING(REAR OUTRIGGER)
- LOWER HYD PIPING 1(4 OUTRIGGER)
- LOWER HYD PIPING 2(4 OUTRIGGER)
- LOWER HYD PIPING 1(F/OUT R/BLD)
- LOWER HYD PIPING 2(F/OUT R/BLD)
- LOWER HYD PIPING 1(F/BLD R/OUT)
- LOWER HYD PIPING 2(F/BLD R/OUT)
- LOWER HYD PIPING 1(F/BLD R/BLD)
- LOWER HYD PIPING 2(F/BLD R/BLD)
- BOOM HYD PIPING(5.1M, STD)
- BOOM HYD PIPING(ADJUST BOOM)
- BOOM GREASE LUB SYSTEM(5.1M,STD)
- BOOM GREASE LUB SYSTEM(ADJUST BOOM)
- BOOM SAFETY LOCK SYSTEM
- ARM HYD PIPING(2.6M)
- ARM HYD PIPING(2.2M, STD)
- ARM HYD PIPING(3.1M)
- ARM SAFETY LOCK SYSTEM
- QUICK CLAMP HYD PIPING
- QUICK CLAMP(HOOK TYPE)
- QUICK CLAMP(CLOSE TYPE)
- QUICK CLAMP CYLINDER
- QUICK CLAMP(HOOK TYPE)
- QUICK CLAMP CYLINDER
- QUICK CLAMP(CLOSE TYPE)
- ATTACH PIPING KIT(S & D/ACTING)
- DOUBLE ACTING MAIN PIPING KIT
- SINGLE PEDAL(DOUBLE ACTING)
- D/ACT MAIN PIPING KIT(ADJUST BOOM)
- D/ACT ATTACH PIPING KIT(ADJUST BOOM)
- SINGLE ACTING MAIN PIPING KIT

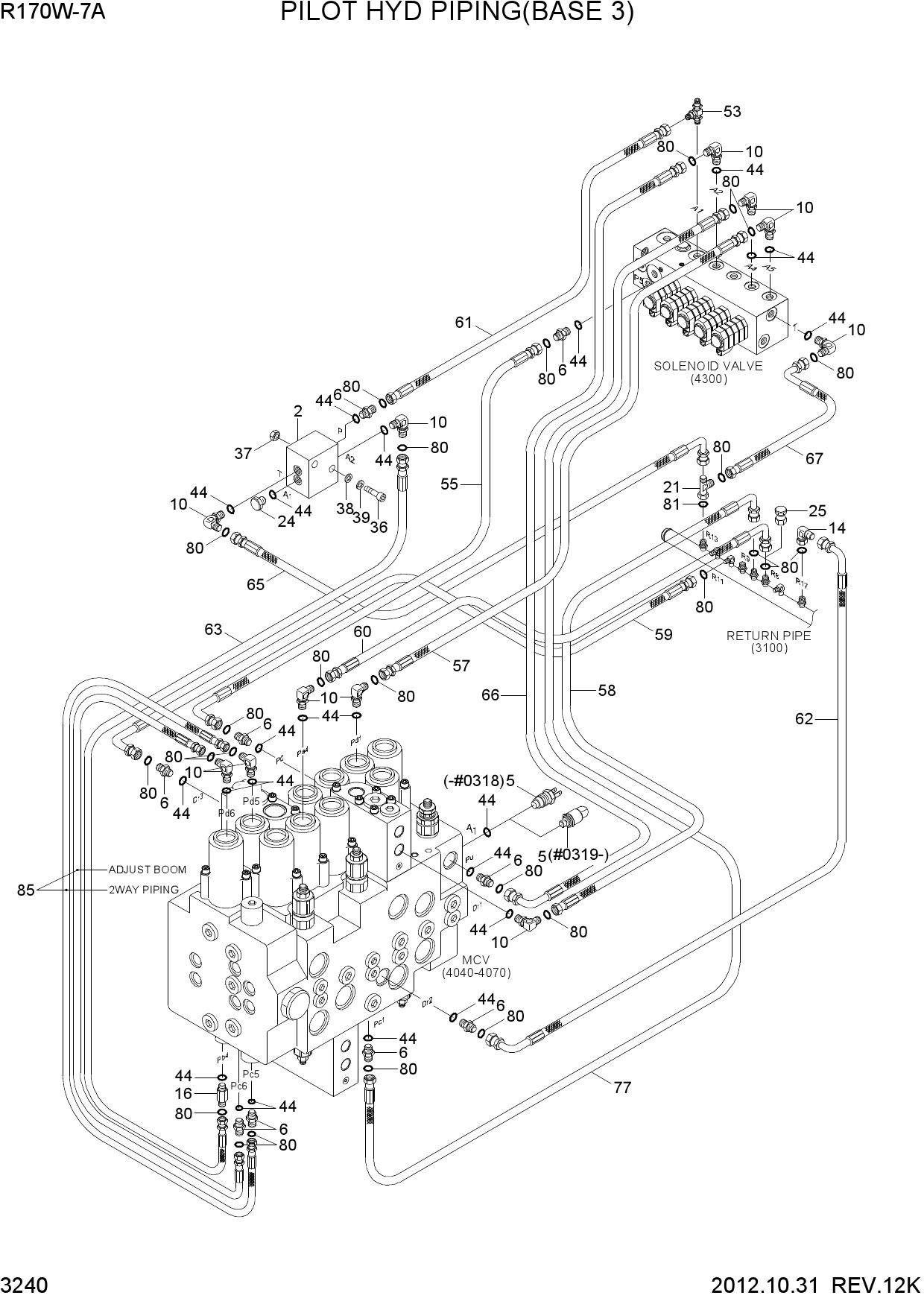

Запчасти для колесных экскаваторов Hyundai R170W-7A PILOT HYD PIPING(BASE 3)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 2 | 31N6-91230 | SOLENOID VALVE | |
| 5 | 31N5-20080 | SWITCH-PRESSURE | |
| 5 | 31N4-20100 | SWITCH-PRESSURE | |
| 5 | 31Q4-40870 | SWITCH-PRESSURE | |
| 6 | X500-110001 | CONNECTOR-ORFS | |
| 10 | X520-110001 | ELBOW-90,ORFS | |
| 14 | X850-515100 | ELBOW-90,SWIVEL,ORFS | |
| 16 | X511-104514 | CONNECTOR-LONG,ORFS | |
| 21 | X840-525151 | TEE-R/TYPE,ORFS | |
| 24 | P220-110102 | PLUG-HEX | |
| 25 | X710-100102 | CAP-ORFS | |
| 36 | S109-080506 | BOLT-SOCKET | |
| 37 | S205-081006 | NUT-HEX | |
| 38 | S403-08200B | WASHER-PLAIN | |
| 39 | S411-080006 | WASHER-SPRING | |
| 44 | S631-011004 | O-RING | |
| 53 | X820-065251 | TEE-R/TYPE,ORFS | |
| 55 | X420-042043 | HOSE ASSY-ORFS 0X90 | |
| 57 | X400-042044 | HOSE ASSY-SYNFLEX,ORFS | |
| 58 | X420-042006 | HOSE ASSY-SYNFLEX,ORFS | |
| 59 | X420-042007 | HOSE ASSY-SYNFLEX,ORFS | |
| 60 | X420-042010 | HOSE ASSY-SYNFLEX,ORFS | |
| 60 | X420-042009 | HOSE ASSY-ORFS 0X90 | |
| 60 | X420-042008 | HOSE ASSY-SYNFLEX,ORFS | |
| 61 | X420-042016 | HOSE ASSY-SYNFLEX,ORFS | |
| 62 | X420-042010 | HOSE ASSY-SYNFLEX,ORFS | |
| 63 | X400-042032 | HOSE ASSY-SYNFLEX,ORFS | |
| 65 | X420-042038 | HOSE ASSY-ORFS 0X90 | |
| 66 | X420-042043 | HOSE ASSY-ORFS 0X90 | |
| 67 | X420-042040 | HOSE ASSY-ORFS 0X90 | |
| 77 | X400-042034 | HOSE ASSY-SYNF,ORFS | |
| 80 | S621-011001 | O-RING | |
| 81 | S621-012001 | O-RING | |
| 85 | X400-042020 | HOSE ASSY-SYNFLEX,ORFS |
Для поиска необходимых позиций выберите нужный раздел каталога запасных
частей Hyundai Чтобы купить запчасти для R170W-7A в компании ООО
«ЮКОЗ ТРЕИД» позвоните нам по телефонам указанным в разделе Контакты или
отправьте сообщение через форму запроса в ближайший к вам филиал.
