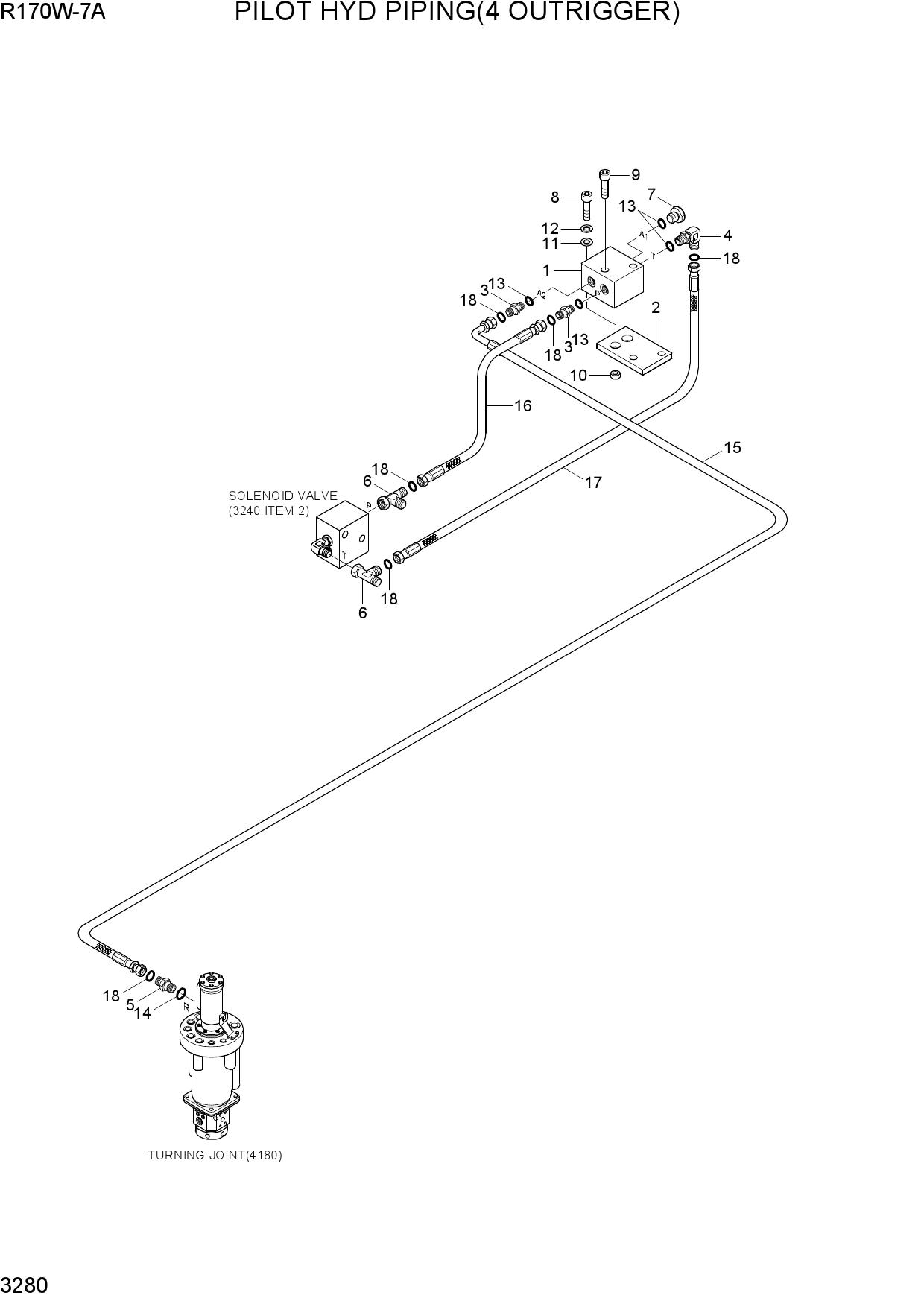

Запчасти для колесных экскаваторов Hyundai R170W-7A PILOT HYD PIPING(4 OUTRIGGER)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 31N6-91230 | SOLENOID VALVE | |
| 2 | 31N5-20030 | BRACKET | |
| 3 | X500-110001 | CONNECTOR-ORFS | |
| 4 | X520-110001 | ELBOW-90,ORFS | |
| 5 | X500-110013 | CONNECTOR-ORFS | |
| 6 | X840-515151 | TEE-R/TYPE,ORFS | |
| 7 | P220-110102 | PLUG-HEX | |
| 8 | S109-080256 | BOLT-SOCKET | |
| 9 | S109-080456 | BOLT-SOCKET | |
| 10 | S205-081006 | NUT-HEX | |
| 11 | S403-08200B | WASHER-PLAIN | |
| 12 | S411-080006 | WASHER-SPRING | |
| 13 | S631-011004 | O-RING | |
| 14 | S631-014004 | O-RING | |
| 15 | X420-042055 | HOSE ASSY-SYNFLEX,ORFS | |
| 16 | X420-042006 | HOSE ASSY-SYNFLEX,ORFS | |
| 17 | X420-042010 | HOSE ASSY-SYNFLEX,ORFS | |
| 18 | S621-011001 | O-RING |
