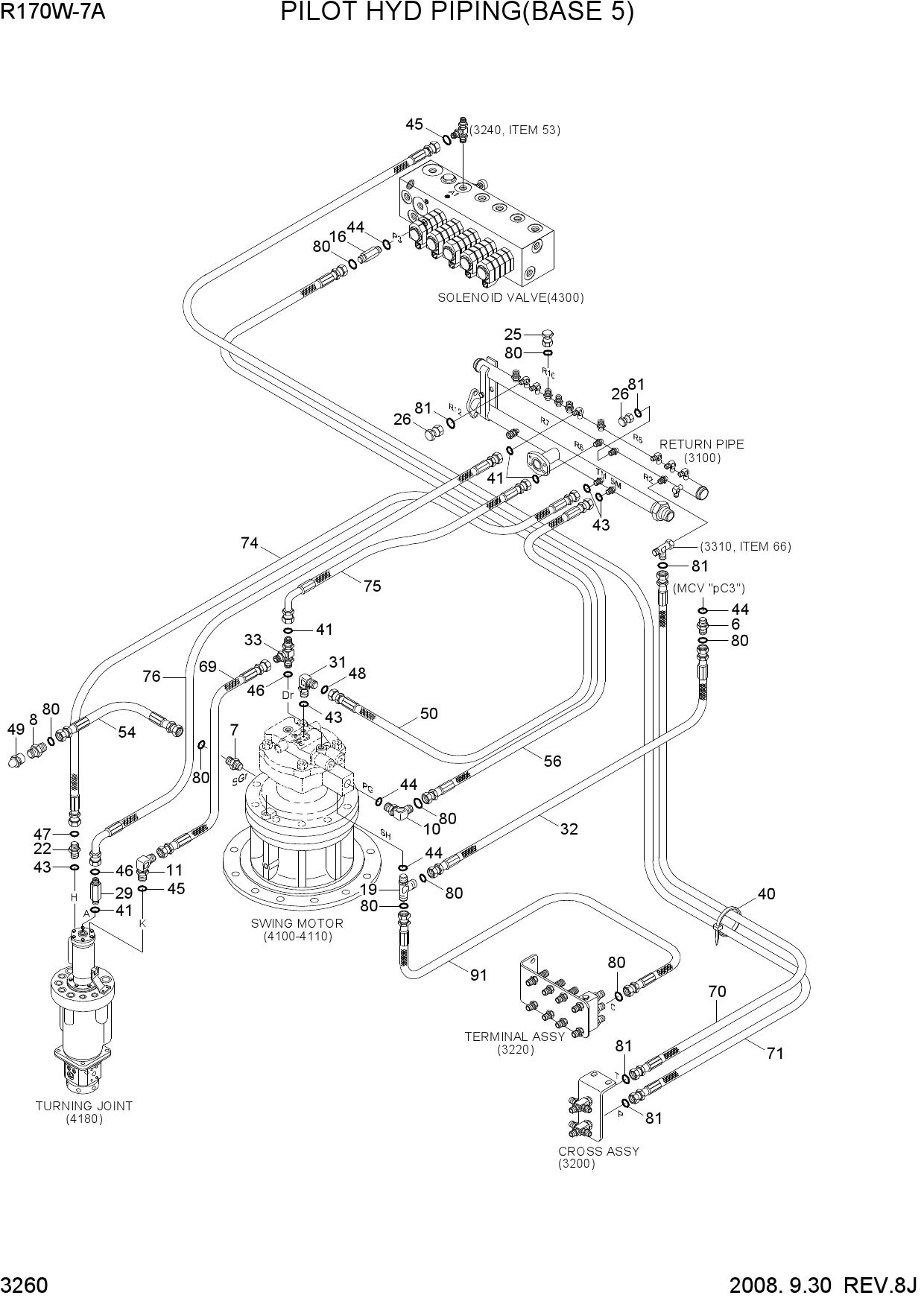

Запчасти для колесных экскаваторов Hyundai R170W-7A PILOT HYD PIPING(BASE 5)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 6 | X500-110001 | CONNECTOR-ORFS | |
| 7 | P010-430002 | CONNECTOR | |
| 8 | P010-430011 | CONNECTOR | |
| 10 | X520-110001 | ELBOW-90,ORFS | |
| 11 | X520-110002 | ELBOW-90,ORFS | |
| 11 | X500-110002 | CONNECTOR-ORFS | |
| 16 | X511-104514 | CONNECTOR-LONG,ORFS | |
| 19 | X820-045151 | TEE-R/TYPE,ORFS | |
| 22 | X500-110016 | CONNECTOR-ORFS | |
| 22 | X511-112543 | CONNECTOR-LONG,ORFS | |
| 25 | X710-100102 | CAP-ORFS | |
| 26 | X710-100103 | CAP-HYD,ORFS | |
| 29 | X511-108536 | CONNECTOR-LONG,ORFS | |
| 29 | X500-110015 | CONNECTOR-ORFS | |
| 31 | X530-110005 | ELBOW-45,ORFS | |
| 32 | X400-042016 | HOSE ASSY-SYNFLEX,ORFS | |
| 33 | X820-085253 | TEE-R/TYPE,ORFS | |
| 40 | S551-050203 | CLAMP-BAND | |
| 41 | S621-014001 | O-RING | |
| 43 | S621-021001 | O-RING | |
| 44 | S631-011004 | O-RING | |
| 45 | S631-014004 | O-RING | |
| 46 | S631-018004 | O-RING | |
| 47 | S631-024004 | O-RING | |
| 48 | S631-029004 | O-RING | |
| 49 | S651-810002 | NIPPLE-GREASE | |
| 50 | P910-162013 | HOSE ASSY-ORFS 0X0 | |
| 50 | P910-162014 | HOSE ASSY-ORFS 0X0 | |
| 54 | P840-042026 | HOSE ASSY-SYN THD | |
| 56 | X400-042045 | HOSE ASSY-SYNFLEX,ORFS | |
| 69 | P910-062013 | HOSE ASSY-ORFS 0X0 | |
| 70 | P930-062029 | HOSE ASSY-ORFS 0X90 | |
| 71 | P910-062057 | HOSE ASSY-ORFS 0X0 | |
| 74 | P930-162041 | HOSE ASSY-ORFS 0X90 | |
| 75 | P930-082015 | HOSE ASSY-ORFS 0X90 | |
| 76 | P930-082032 | HOSE ASSY-ORFS 0X90 | |
| 80 | S621-011001 | O-RING | |
| 81 | S621-012001 | O-RING | |
| 91 | X400-042026 | HOSE ASSY-ORFS 0X0 |
