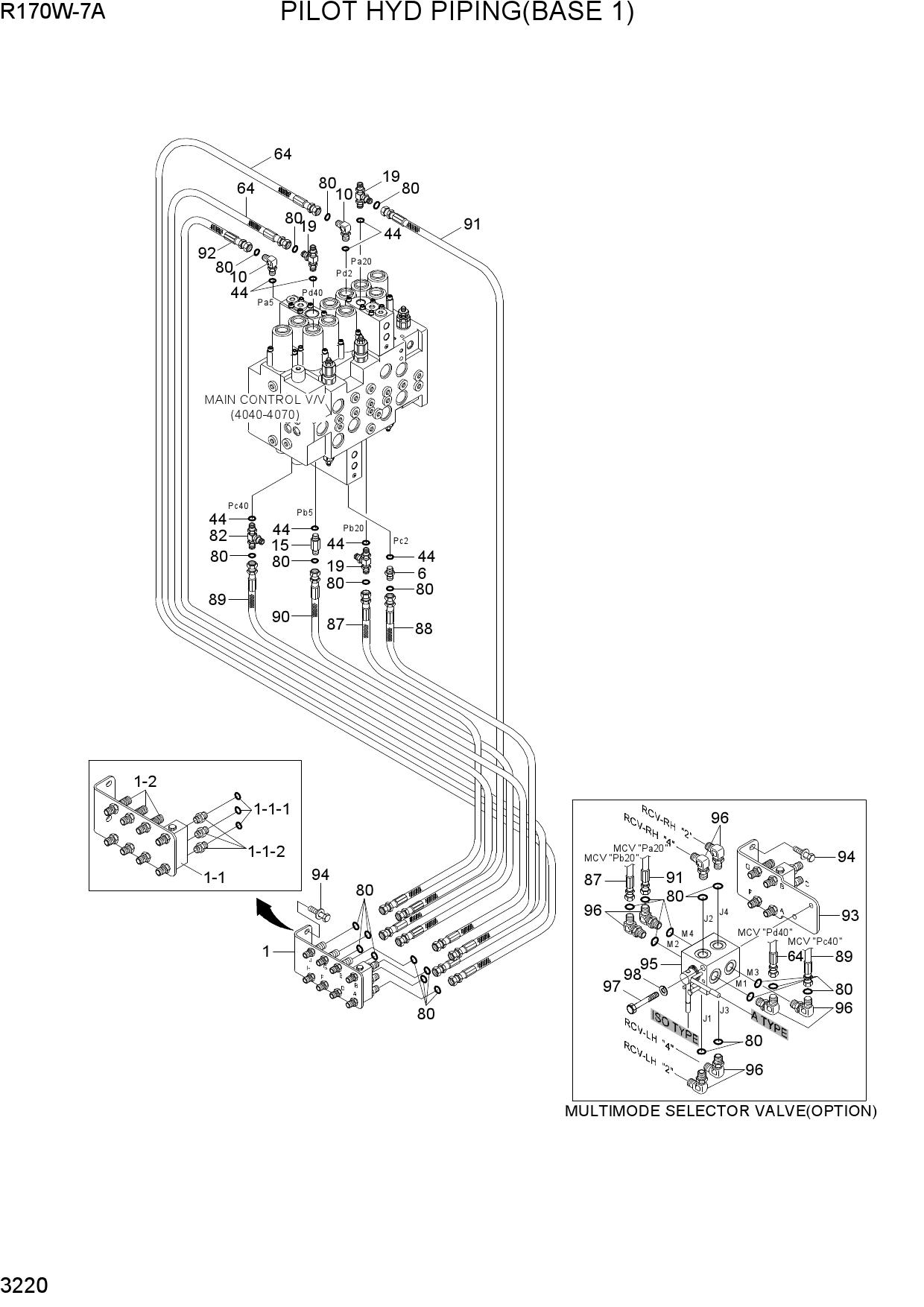

Запчасти для колесных экскаваторов Hyundai R170W-7A PILOT HYD PIPING(BASE 1)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 31N6-25010 | TERMINAL ASSY | |
| 1-1 | 31N6-25030 | SHUTTLE-5 PORT | |
| 1-1-1 | S621-011001 | O-RING | |
| 1-1-2 | X500-110001 | CONNECTOR-ORFS | |
| 1-2 | X540-120001 | CONNECTOR-ORFS | |
| 6 | X500-110001 | CONNECTOR-ORFS | |
| 10 | X520-110001 | ELBOW-90,ORFS | |
| 15 | X511-104513 | CONNECTOR-LONG,ORFS | |
| 19 | X820-045151 | TEE-R/TYPE,ORFS | |
| 44 | S631-011004 | O-RING | |
| 64 | X400-042033 | HOSE ASSY-SYNFLEX,ORFS | |
| 80 | S621-011001 | O-RING | |
| 82 | 31N4-22150 | TEE-LONG,ORFS | |
| 87 | X400-042019 | HOSE ASSY-SYNFLEX,ORFS | |
| 88 | X400-042021 | HOSE ASSY-SYNFLEX,ORFS | |
| 89 | X400-042022 | HOSE ASSY-SYNFLEX,ORFS | |
| 90 | X400-042024 | HOSE ASSY-SYNFLEX,ORFS | |
| 91 | X400-042026 | HOSE ASSY-ORFS 0X0 | |
| 92 | X400-042029 | HOSE ASSY-SYNFLEX,ORFS | |
| 93 | 31N4-20140 | TERMINAL ASSY | |
| 94 | S037-102046 | BOLT-W/WASHER | |
| 95 | 31N6-22050 | SELECTOR VLV-MULTIMODE | |
| 96 | X520-110001 | ELBOW-90,ORFS | |
| 97 | S015-080806 | BOLT-HEX | |
| 98 | S411-080006 | WASHER-SPRING |
