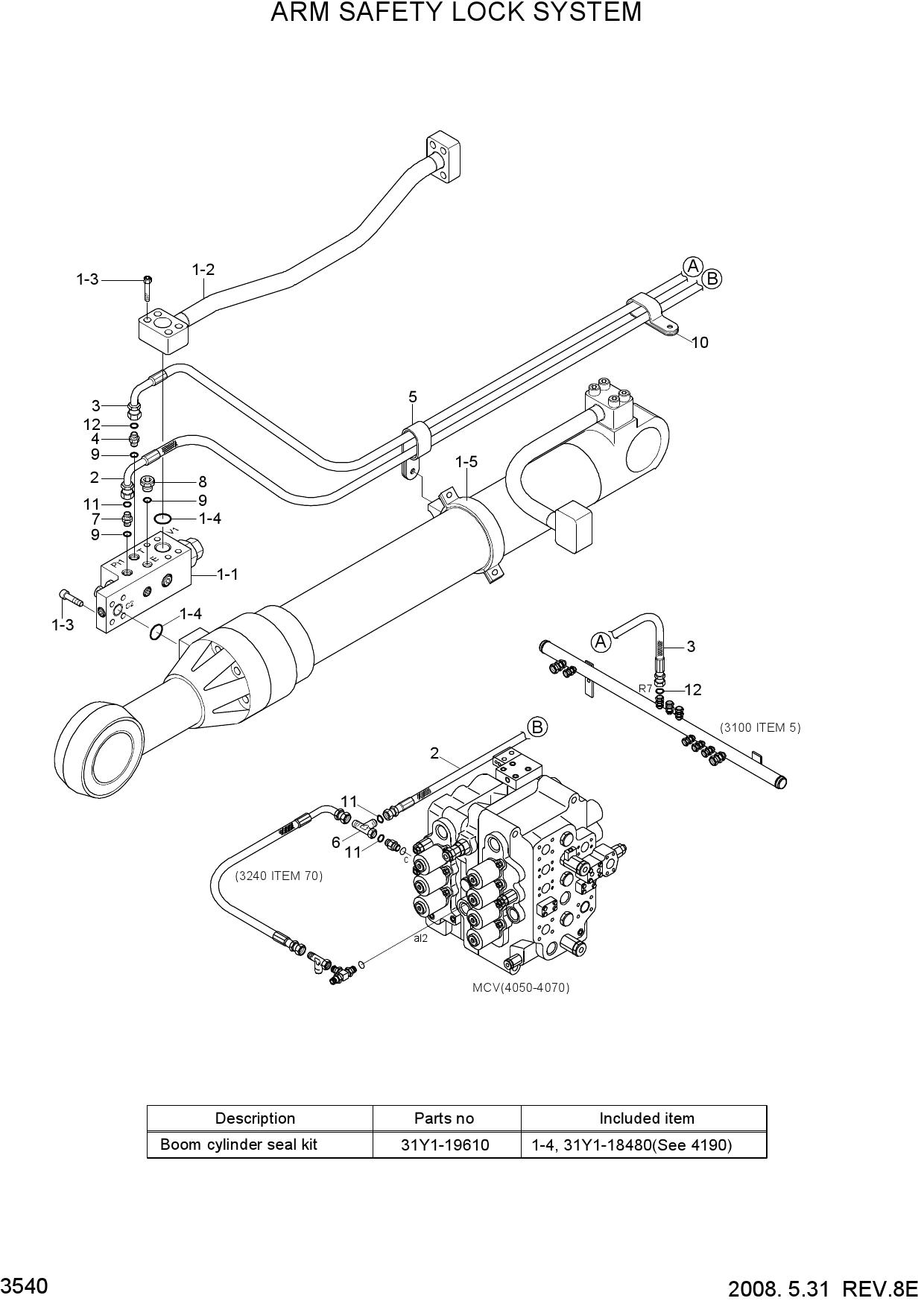

Запчасти для гусеничных экскаваторов Hyundai R370LC-7 ARM SAFETY LOCK SYSTEM
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 31NA-52133 | ARM CYLINDER ASSY | |
| 1 | 31NA-52134 | ARM CYLINDER ASSY | |
| 1-1 | 31NA-95010 | VALVE-SAFETY LOCK | |
| 1-2 | 31Y1-23881 | PIPE ASSY-RV | |
| 1-3 | S107-120606 | BOLT-SOCKET | |
| K1-4 | Y171-024004 | O-RING | |
| 2 | P930-042172 | HOSE ASSY-ORFS 0X90 | |
| 2 | P930-042168 | HOSE ASSY-ORFS 0X90 | |
| 2 | P930-042216 | HOSE ASSY-ORFS 0X90 | |
| 3 | P930-062182 | HOSE ASSY-ORFS 0X90 | |
| 3 | P930-062178 | HOSE ASSY-ORFS 0X90 | |
| 3 | P930-062226 | HOSE ASSY-ORFS 0X90 | |
| 4 | X500-110011 | CONNECTOR-ORFS | |
| 5 | 31E7-0313 | CLAMP-HOSE | |
| 6 | X840-515151 | TEE-R/TYPE,ORFS | |
| 7 | X500-110001 | CONNECTOR-ORFS | |
| 8 | P220-110102 | PLUG-HEX | |
| 9 | S631-011004 | O-RING | |
| 10 | 31L6-02460 | CLAMP-TUBE | |
| 11 | S621-011001 | O-RING | |
| 12 | S621-012001 | O-RING | |
| K | 31Y1-19610 | SEAL KIT |
