- PUMP MOUNTING
- HYDRAULIC TANK
- HYDRAULIC TANK(JEIL MCV)
- UPPER HYDRAULIC PIPING(BASE)
- UPPER HYDRAULIC PIPING(BASE, JEIL MCV))
- UPPER HYDRAULIC PIPING(ATTACH)
- UPPER HYDRAULIC PIPING(ATTACH, JEIL MCV)
- UPPER HYDRAULIC PIPING(TRAVEL)
- UPPER HYDRAULIC PIPING(TRAVEL, JEIL MCV)
- PILOT HYDRAULIC PIPING(CONTROL 1)
- PILOT HYD PIPING(CONTROL 1, JEIL MCV)
- PILOT HYDRAULIC PIPING(CONTROL 2)
- PILOT HYD PIPING(CONTROL 2, JEIL MCV)
- PILOT HYDRAULIC PIPING(CONTROL 3)
- PILOT HYD PIPING(CONTROL 3, JEIL MCV)
- PILOT HYDRAULIC PIPING(BASE 1)
- PILOT HYD PIPING(BASE 1, JEIL MCV)
- PILOT HYDRAULIC PIPING(BASE 2)
- PILOT HYD PIPING(BASE 2, JEIL MCV)
- PILOT HYDRAULIC PIPING(BASE 3)
- PILOT HYD PIPING(BASE 3, JEIL MCV)
- TRAVEL HYD PIPING(T/MOTOR TYPE 1)
- TRAVEL HYD PIPING(T/MOTOR TYPE 2)
- TRAVEL HYD PIPING(T/MOTOR TYPE 3)
- BOOM HYDRAULIC PIPING(6.5M, STD)
- BOOM GREASE LUB SYSTEM(6.5M, STD)
- BOOM HYDRAULIC PIPING(6.15M)
- BOOM GREASE LUB SYSTEM(6.15M)
- BOOM SAFETY LOCK SYSTEM
- BOOM HYDRAULIC PIPING(8.6M)
- BOOM GREASE LUB SYSTEM(8.6M)
- ARM HYDRAULIC PIPING(3.2M)
- ARM HYDRAULIC PIPING(2.5M, STD)
- ARM HYDRAULIC PIPING(3.9M)
- ARM HYDRAULIC PIPING(4.3M)
- ARM SAFETY LOCK SYSTEM
- ARM HYDRAULIC PIPING(5.1M)
- ARM HYDRAULIC PIPING(2.8M, #0141-)
- SINGLE ACTING MAIN PIPING KIT
- ATTACH PIPING KIT(S & D/ACTING)
- DOUBLE ACTING MAIN PIPING KIT
- SINGLE PEDAL(DOUBLE ACTING)
- QUICK CLAMP HYD PIPING
- QUICK CLAMP(HOOK TYPE)
- QUICK CLAMP(CLOSE TYPE)

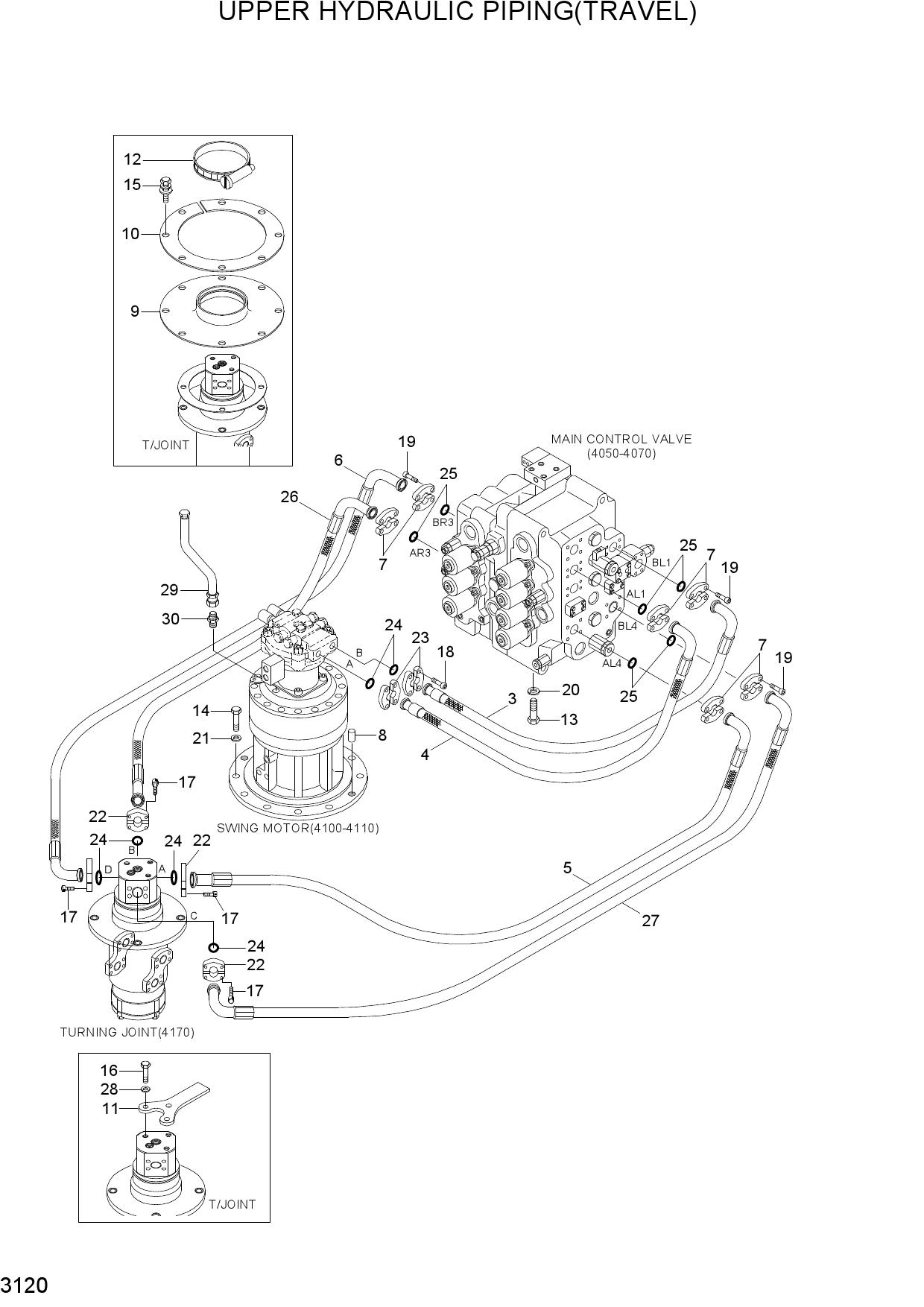

Запчасти для гусеничных экскаваторов Hyundai R370LC-7 UPPER HYDRAULIC PIPING(TRAVEL)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 3 | 31NA-12010 | HOSE ASSY | |
| 4 | 31NA-12020 | HOSE ASSY | |
| 5 | 31NA-12030 | HOSE ASSY | |
| 6 | 31NA-12040 | HOSE ASSY | |
| 7 | 31NA-12070 | FLANGE-HYD,SPLIT | |
| 8 | 31EH-30391 | PIN-DOWEL | |
| 9 | 31N1-40941 | RUBBER-T/JOINT | |
| 10 | 31N1-40951 | COVER-T/JOINT | |
| 11 | 31N1-40961 | BRACKET-T/JOINT | |
| 12 | S520-130000 | CLAMP-HOSE | |
| 13 | S017-16045D | BOLT-HEX | |
| 14 | S017-240856 | BOLT-HEX | |
| 15 | S037-102026 | BOLT-W/WASHER | |
| 16 | S017-140306 | BOLT-HEX | |
| 17 | S109-100306 | BOLT-SOCKET | |
| 18 | S109-120406 | BOLT-SOCKET | |
| 19 | S109-140406 | BOLT-SOCKET | |
| 20 | S411-160006 | WASHER-SPRING | |
| 21 | S441-240006 | WASHER-HARDENED | |
| 22 | P173-160104 | FLANGE-HYD,SPLIT | |
| 23 | P174-160115 | FLANGE-SPLIT | |
| 24 | Y171-024004 | O-RING | |
| 25 | Y171-027004 | O-RING | |
| 26 | 31NA-12090 | HOSE ASSY | |
| 27 | 31NA-12100 | HOSE ASSY | |
| 28 | S411-140006 | WASHER-SPRING | |
| 29 | 31NA-12240 | AIR BREATHER ASSY | |
| 30 | X500-430004 | CONNECTOR-ORFS |
