- PUMP MOUNTING
- HYDRAULIC TANK
- HYDRAULIC TANK(JEIL MCV)
- UPPER HYDRAULIC PIPING(BASE)
- UPPER HYDRAULIC PIPING(BASE, JEIL MCV))
- UPPER HYDRAULIC PIPING(ATTACH)
- UPPER HYDRAULIC PIPING(ATTACH, JEIL MCV)
- UPPER HYDRAULIC PIPING(TRAVEL)
- UPPER HYDRAULIC PIPING(TRAVEL, JEIL MCV)
- PILOT HYDRAULIC PIPING(CONTROL 1)
- PILOT HYD PIPING(CONTROL 1, JEIL MCV)
- PILOT HYDRAULIC PIPING(CONTROL 2)
- PILOT HYD PIPING(CONTROL 2, JEIL MCV)
- PILOT HYDRAULIC PIPING(CONTROL 3)
- PILOT HYD PIPING(CONTROL 3, JEIL MCV)
- PILOT HYDRAULIC PIPING(BASE 1)
- PILOT HYD PIPING(BASE 1, JEIL MCV)
- PILOT HYDRAULIC PIPING(BASE 2)
- PILOT HYD PIPING(BASE 2, JEIL MCV)
- PILOT HYDRAULIC PIPING(BASE 3)
- PILOT HYD PIPING(BASE 3, JEIL MCV)
- TRAVEL HYD PIPING(T/MOTOR TYPE 1)
- TRAVEL HYD PIPING(T/MOTOR TYPE 2)
- TRAVEL HYD PIPING(T/MOTOR TYPE 3)
- BOOM HYDRAULIC PIPING(6.5M, STD)
- BOOM GREASE LUB SYSTEM(6.5M, STD)
- BOOM HYDRAULIC PIPING(6.15M)
- BOOM GREASE LUB SYSTEM(6.15M)
- BOOM SAFETY LOCK SYSTEM
- BOOM HYDRAULIC PIPING(8.6M)
- BOOM GREASE LUB SYSTEM(8.6M)
- ARM HYDRAULIC PIPING(3.2M)
- ARM HYDRAULIC PIPING(2.5M, STD)
- ARM HYDRAULIC PIPING(3.9M)
- ARM HYDRAULIC PIPING(4.3M)
- ARM SAFETY LOCK SYSTEM
- ARM HYDRAULIC PIPING(5.1M)
- ARM HYDRAULIC PIPING(2.8M, #0141-)
- SINGLE ACTING MAIN PIPING KIT
- ATTACH PIPING KIT(S & D/ACTING)
- DOUBLE ACTING MAIN PIPING KIT
- SINGLE PEDAL(DOUBLE ACTING)
- QUICK CLAMP HYD PIPING
- QUICK CLAMP(HOOK TYPE)
- QUICK CLAMP(CLOSE TYPE)

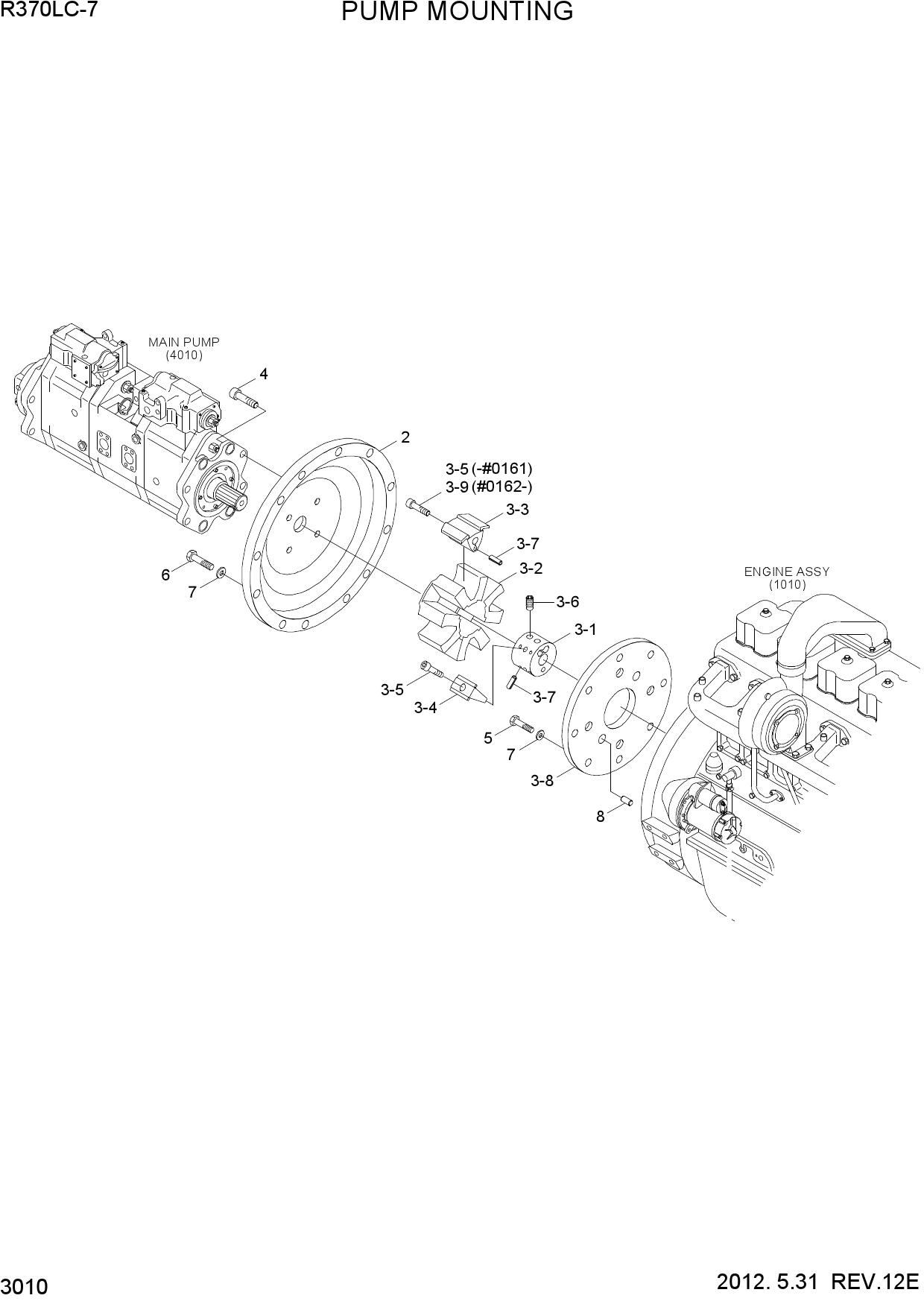

Запчасти для гусеничных экскаваторов Hyundai R370LC-7 PUMP MOUNTING
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 2 | E211-1502 | HOUSING | |
| 3 | 11E9-15022 | COUPLING ASSY | |
| 3 | 11E9-15023 | COUPLING ASSY | |
| 3-1 | 11E9-15080 | HUB | |
| 3-1 | 11E9-15081 | HUB | |
| 3-2 | 11E9-15091 | ELEMENT | |
| 3-2 | 11E9-15092 | ELEMENT | |
| 3-3 | 11E9-15101 | INSERT-A | |
| 3-3 | 11E9-15102 | INSERT-A | |
| 3-4 | 11E9-15111 | INSERT-R | |
| 3-4 | 11E9-15112 | INSERT-R | |
| 3-5 | S109-20050D | BOLT-SOCKET | |
| 3-5 | S109-20060D | BOLT-SOCKET | |
| 3-6 | 11E9-1507 | BOLT-CLAMPING | |
| 3-7 | S472-800162 | PIN-SPRING | |
| 3-8 | E211-1503 | PLATE | |
| 3-9 | S109-20055D | BOLT-SOCKET | |
| 4 | S109-20055D | BOLT-SOCKET | |
| 5 | S017-100356 | BOLT-HEX | |
| 6 | S017-100656 | BOLT-HEX | |
| 7 | S403-10200B | WASHER-PLAIN | |
| 8 | S472-910202 | PIN-SPRING |
