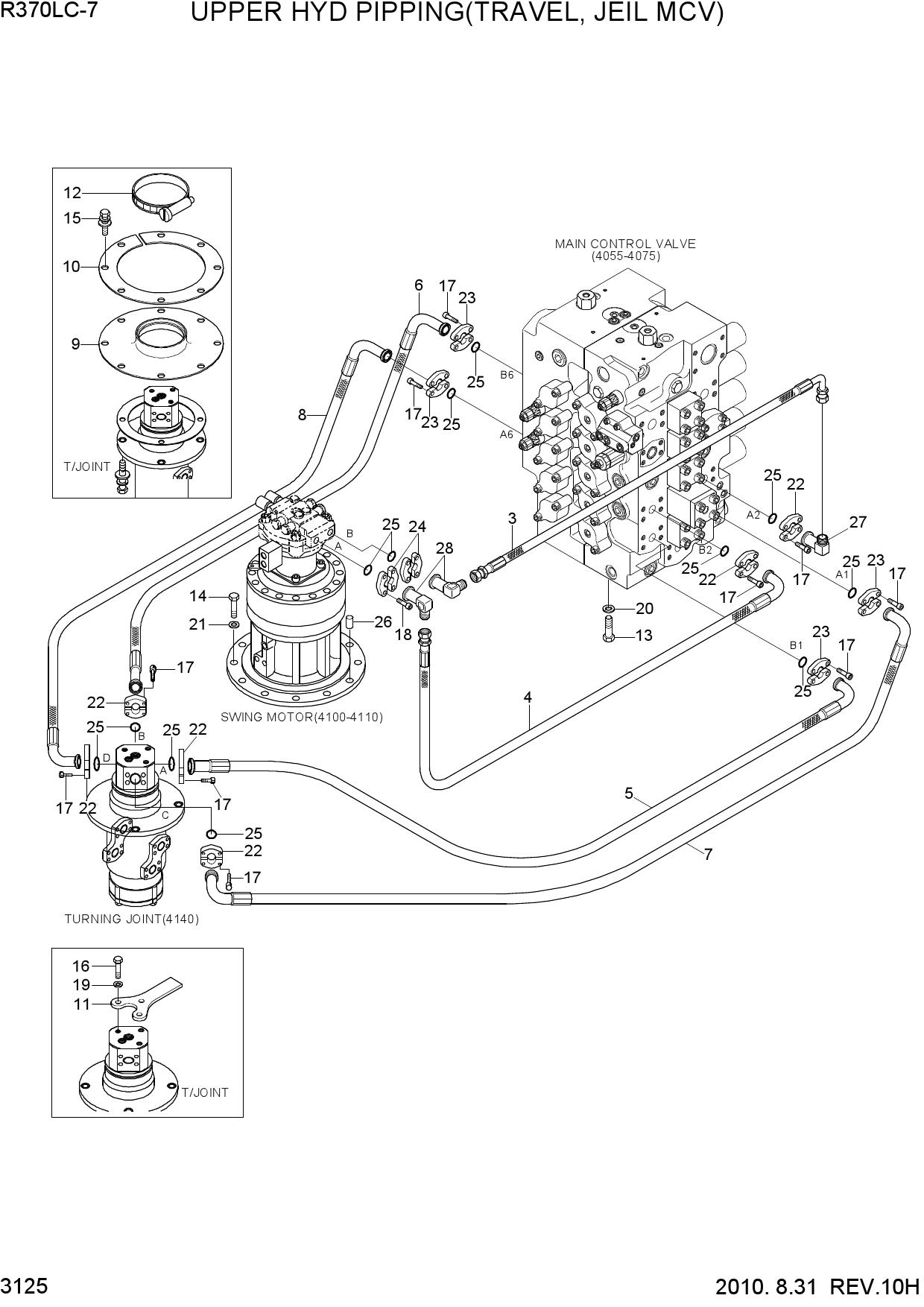

Запчасти для гусеничных экскаваторов Hyundai R370LC-7 UPPER HYDRAULIC PIPING(TRAVEL, JEIL MCV)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 3 | P930-166012 | HOSE ASSY-COMP,THE(0X90) | |
| 4 | P980-166314 | HOSE ASSY | |
| 5 | 31NA-14230 | HOSE ASSY | |
| 6 | 31NA-14240 | HOSE ASSY | |
| 7 | 31NA-14250 | HOSE ASSY | |
| 8 | 31NA-14260 | HOSE ASSY | |
| 9 | 31N1-40941 | RUBBER-T/JOINT | |
| 10 | 31N1-40951 | COVER-T/JOINT | |
| 11 | 31N1-40961 | BRACKET-T/JOINT | |
| 12 | S520-130000 | CLAMP-HOSE | |
| 13 | S017-20055D | BOLT-HEX | |
| 14 | S017-240856 | BOLT-HEX | |
| 15 | S037-102026 | BOLT-W/WASHER | |
| 16 | S017-140306 | BOLT-HEX | |
| 17 | S109-100306 | BOLT-SOCKET | |
| 18 | S109-120406 | BOLT-SOCKET | |
| 19 | S411-140006 | WASHER-SPRING | |
| 20 | S441-200006 | WASHER-HARDENED | |
| 21 | S411-240006 | WASHER-SPRING | |
| 22 | P173-160104 | FLANGE-HYD,SPLIT | |
| 23 | P174-160105 | FLANGE-HYD,SPLIT | |
| 24 | P174-160115 | FLANGE-SPLIT | |
| 25 | Y171-024004 | O-RING | |
| 26 | 31EH-30391 | PIN-DOWEL | |
| 27 | 31NB-12320 | ELBOW WA-ORFS | |
| 28 | 31NA-12050 | ELBOW 90-ORFS |
