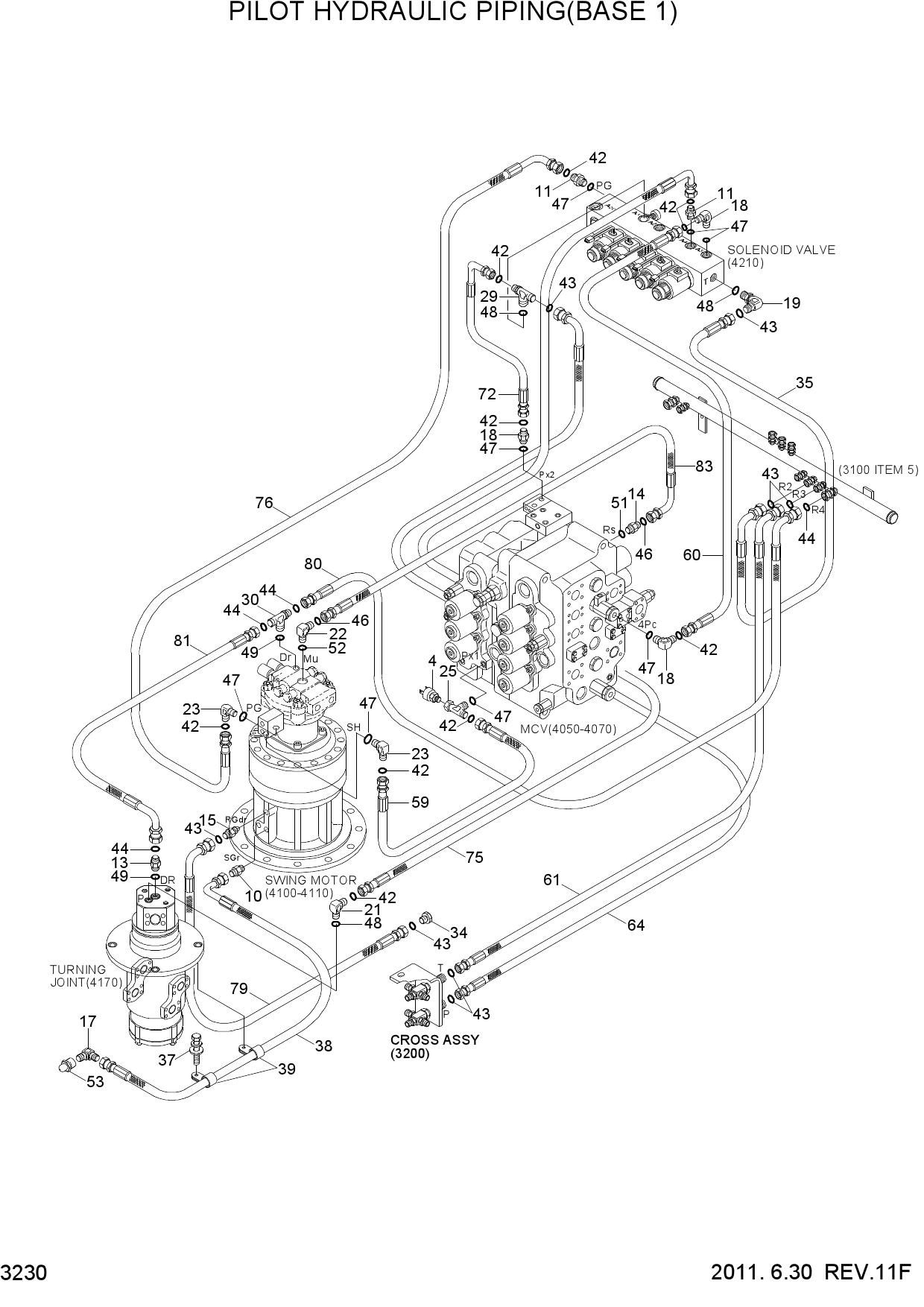

Запчасти для гусеничных экскаваторов Hyundai R370LC-7 PILOT HYDRAULIC PIPING(BASE 1)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 4 | 31NA-20080 | SWITCH-PRESSURE | |
| 4 | 31NA-20100 | SWITCH-PRESSURE | |
| 10 | P010-430011 | CONNECTOR | |
| 11 | X500-110001 | CONNECTOR-ORFS | |
| 13 | X500-110003 | CONNECTOR-ORFS | |
| 14 | X500-110005 | CONNECTOR-ORFS | |
| 15 | X500-430002 | CONNECTOR-ORFS | |
| 17 | 31NB-50280 | ELBOW-90 | |
| 18 | X520-110001 | ELBOW-90,ORFS | |
| 19 | X520-110002 | ELBOW-90,ORFS | |
| 21 | X520-110012 | ELBOW-90,ORFS | |
| 22 | X520-110020 | ELBOW-90,ORFS | |
| 23 | X530-110001 | ELBOW-45,ORFS | |
| 25 | 31NA-22310 | TEE-BRANCH TYPE | |
| 29 | X820-065251 | TEE-R/TYPE,ORFS | |
| 30 | X820-085353 | TEE-R/TYPE,ORFS | |
| 34 | X700-100103 | PLUG-ORFS | |
| 35 | X700-100103 | PLUG-ORFS | |
| 37 | S037-101556 | BOLT-W/WASHER | |
| 38 | P860-042025 | HOSE ASSY-SYN 0X90 | |
| 39 | S543-120002 | CLAMP-TUBE | |
| 42 | S621-011001 | O-RING | |
| 43 | S621-012001 | O-RING | |
| 44 | S621-014001 | O-RING | |
| 46 | S621-021001 | O-RING | |
| 47 | S631-011004 | O-RING | |
| 48 | S631-014004 | O-RING | |
| 49 | S631-018004 | O-RING | |
| 51 | S631-029004 | O-RING | |
| 52 | S631-038004 | O-RING | |
| 53 | S651-810002 | NIPPLE-GREASE | |
| 59 | X400-042036 | HOSE ASSY-SYNFLEX,ORFS | |
| 60 | X400-042053 | HOSE ASSY-SYNFLEX,ORFS | |
| 61 | X400-062050 | HOSE ASSY-SYNF,ORFS | |
| 64 | X400-062078 | HOSE ASSY-SYNF,ORFS | |
| 72 | X420-042046 | HOSE ASSY-SYNFLEX,ORFS | |
| 75 | X400-042063 | HOSE ASSY-SYNF,ORFS | |
| 76 | X420-042067 | HOSE ASSY-ORFS 0X90 | |
| 79 | P930-062020 | HOSE ASSY-ORFS 0X90 | |
| 80 | P930-082022 | HOSE ASSY-ORFS 0X90 | |
| 81 | P930-082034 | HOSE ASSY-ORFS 0X90 | |
| 83 | 31NA-22351 | HOSE ASSY |
