- PUMP MOUNTING
- HYDRAULIC TANK
- HYDRAULIC TANK(JEIL MCV)
- UPPER HYDRAULIC PIPING(BASE)
- UPPER HYDRAULIC PIPING(BASE, JEIL MCV))
- UPPER HYDRAULIC PIPING(ATTACH)
- UPPER HYDRAULIC PIPING(ATTACH, JEIL MCV)
- UPPER HYDRAULIC PIPING(TRAVEL)
- UPPER HYDRAULIC PIPING(TRAVEL, JEIL MCV)
- PILOT HYDRAULIC PIPING(CONTROL 1)
- PILOT HYD PIPING(CONTROL 1, JEIL MCV)
- PILOT HYDRAULIC PIPING(CONTROL 2)
- PILOT HYD PIPING(CONTROL 2, JEIL MCV)
- PILOT HYDRAULIC PIPING(CONTROL 3)
- PILOT HYD PIPING(CONTROL 3, JEIL MCV)
- PILOT HYDRAULIC PIPING(BASE 1)
- PILOT HYD PIPING(BASE 1, JEIL MCV)
- PILOT HYDRAULIC PIPING(BASE 2)
- PILOT HYD PIPING(BASE 2, JEIL MCV)
- PILOT HYDRAULIC PIPING(BASE 3)
- PILOT HYD PIPING(BASE 3, JEIL MCV)
- TRAVEL HYD PIPING(T/MOTOR TYPE 1)
- TRAVEL HYD PIPING(T/MOTOR TYPE 2)
- TRAVEL HYD PIPING(T/MOTOR TYPE 3)
- BOOM HYDRAULIC PIPING(6.5M, STD)
- BOOM GREASE LUB SYSTEM(6.5M, STD)
- BOOM HYDRAULIC PIPING(6.15M)
- BOOM GREASE LUB SYSTEM(6.15M)
- BOOM SAFETY LOCK SYSTEM
- BOOM HYDRAULIC PIPING(8.6M)
- BOOM GREASE LUB SYSTEM(8.6M)
- ARM HYDRAULIC PIPING(3.2M)
- ARM HYDRAULIC PIPING(2.5M, STD)
- ARM HYDRAULIC PIPING(3.9M)
- ARM HYDRAULIC PIPING(4.3M)
- ARM SAFETY LOCK SYSTEM
- ARM HYDRAULIC PIPING(5.1M)
- ARM HYDRAULIC PIPING(2.8M, #0141-)
- SINGLE ACTING MAIN PIPING KIT
- ATTACH PIPING KIT(S & D/ACTING)
- DOUBLE ACTING MAIN PIPING KIT
- SINGLE PEDAL(DOUBLE ACTING)
- QUICK CLAMP HYD PIPING
- QUICK CLAMP(HOOK TYPE)
- QUICK CLAMP(CLOSE TYPE)

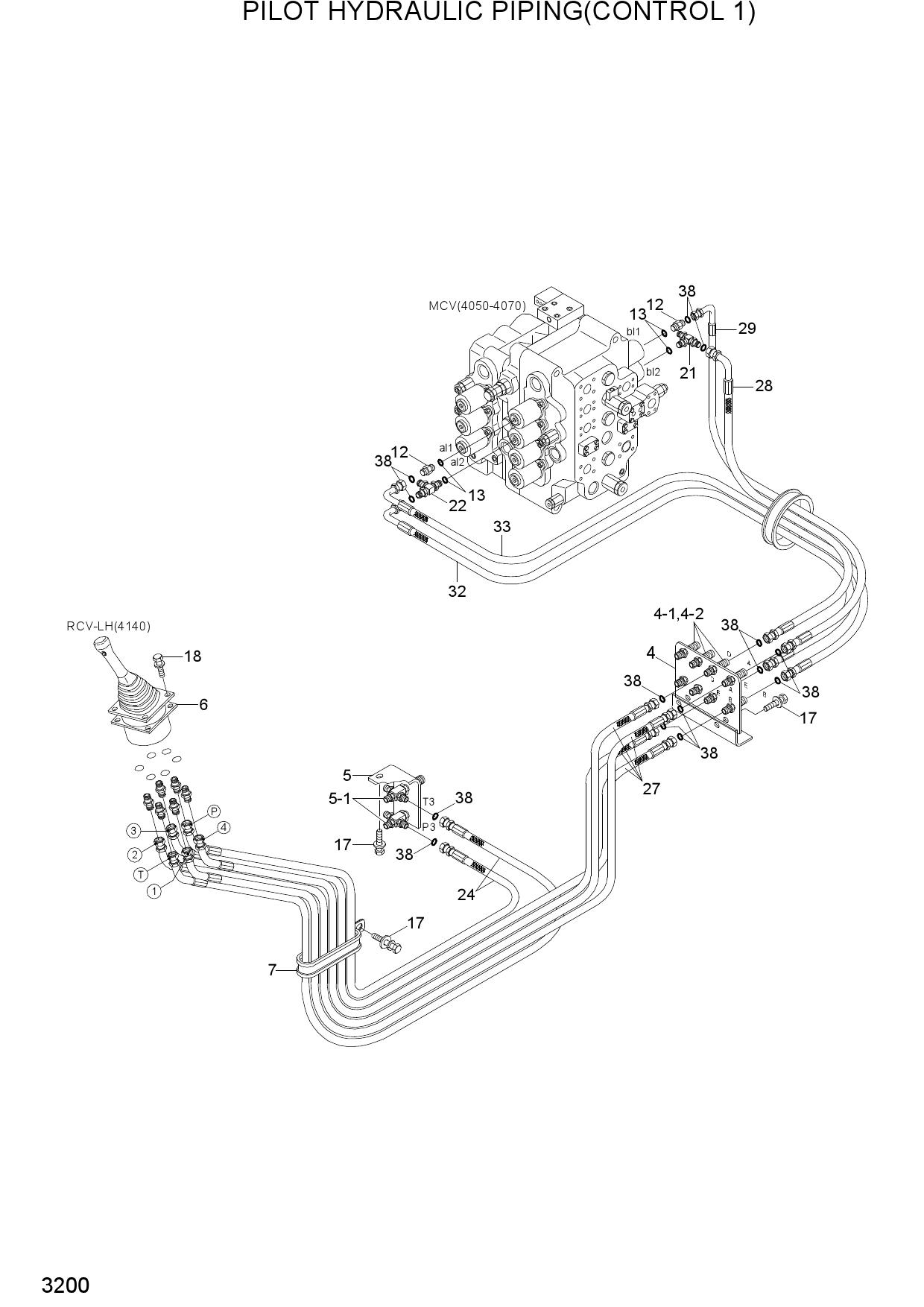

Запчасти для гусеничных экскаваторов Hyundai R370LC-7 PILOT HYDRAULIC PIPING(CONTROL 1)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 4 | 31NB-20011 | TERMINAL ASSY | |
| 4-1 | X540-120002 | CONNECTOR-ORFS | |
| 4-2 | 31N8-22150 | CONNECTOR-2 NUT | |
| 5 | 31NB-20022 | CROSS ASSY | |
| 5-1 | 31N8-24040 | CROSS-BULK HEAD TYPE | |
| 6 | 31M6-51061 | SHIM(3.2T) | |
| 7 | 31E7-0310 | CLAMP-HOSE | |
| 12 | X500-110002 | CONNECTOR-ORFS | |
| 13 | S631-014004 | O-RING | |
| 17 | S037-102526 | BOLT-W/WASHER | |
| 18 | S035-063046 | BOLT-W/WASHER | |
| 21 | X810-065152 | TEE-B/TYPE,ORFS | |
| 22 | X820-065152 | TEE-R/TYPE,ORFS | |
| 24 | P920-062026 | HOSE ASSY-ORFS 0X45 | |
| 27 | X410-062044 | HOSE ASSY-ORFS 0X45 | |
| 28 | X420-062032 | HOSE ASSY-SYNFLEX,ORFS | |
| 29 | X420-062033 | HOSE ASSY-ORFS 0X90 | |
| 32 | X420-062038 | HOSE ASSY-SYNF,ORFS 0X90 | |
| 33 | X420-062039 | HOSE ASSY-SYNFLEX,ORFS | |
| 38 | S621-012001 | O-RING |
Для поиска необходимых позиций выберите нужный раздел каталога запасных
частей Hyundai Чтобы купить запчасти для R370LC-7 в компании ООО
«ЮКОЗ ТРЕИД» позвоните нам по телефонам указанным в разделе Контакты или
отправьте сообщение через форму запроса в ближайший к вам филиал.
