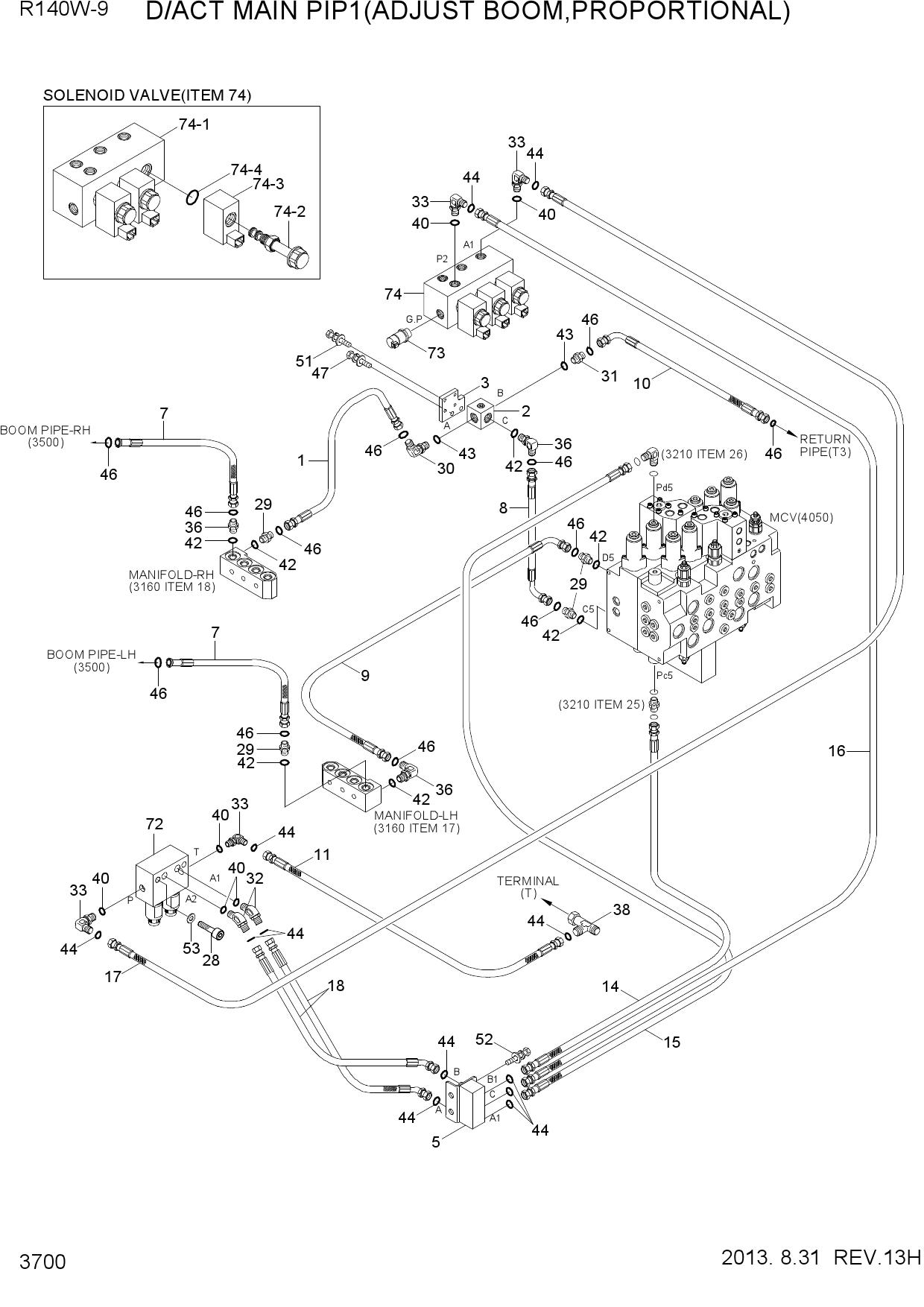

Запчасти для колесных экскаваторов Hyundai R140W-9 D/ACT MAIN PIP1(ADJUST,PROPORTIONAL)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | P910-126016 | HOSE ASSY-ORFS 0X0 | |
| 2 | 31N4-95260 | JOINT-3 WAY | |
| 3 | 31Q4-95010 | BRACKET-3 WAY JOINT | |
| 5 | 31Q6-90460 | 5-SHUTTLE ASSY | |
| 7 | P914-126035 | HOSE ASSY-ORFS 0X0 | |
| 8 | P933-126012 | HOSE ASSY-ORFS 0X90 | |
| 9 | P933-126015 | HOSE ASSY-ORFS | |
| 10 | P923-123026 | HOSE ASSY-ORFS | |
| 11 | P910-042025 | HOSE ASSY-ORFS 0X0 | |
| 14 | P910-042045 | HOSE ASSY-ORFS 0X0 | |
| 15 | P910-042058 | HOSE ASSY-ORFS 0X0 | |
| 16 | P910-042062 | HOSE ASSY-ORFS 0X0 | |
| 17 | P910-042080 | HOSE ASSY-ORFS 0X0 | |
| 18 | P920-042022 | HOSE ASSY-ORFS 0X45 | |
| 28 | S109-080606 | BOLT-SOCKET | |
| 29 | X500-110004 | CONNECTOR-ORFS | |
| 30 | X530-110018 | ELBOW-45,ORFS | |
| 31 | 31N4-95290 | CONNECTOR | |
| 32 | X530-110001 | ELBOW-45,ORFS | |
| 33 | X520-110001 | ELBOW-90,ORFS | |
| 36 | X520-110004 | ELBOW-90,ORFS | |
| 38 | X840-515151 | TEE-R/TYPE,ORFS | |
| 40 | S631-011004 | O-RING | |
| 42 | S631-024004 | O-RING | |
| 43 | S631-029004 | O-RING | |
| 44 | S621-011001 | O-RING | |
| 46 | S621-018001 | O-RING | |
| 47 | S037-123526 | BOLT-W/WASHER | |
| 51 | S035-083026 | BOLT-W/WASHER | |
| 52 | S037-102026 | BOLT-W/WASHER | |
| 53 | S403-08000B | WASHER-PLAIN | |
| 72 | 31QA-20010 | 2-EPPR VALVE | |
| 73 | 31Q4-40830 | SENSOR-PRESSURE | |
| 74 | 31Q6-20050 | VALVE-SOLENOID |
