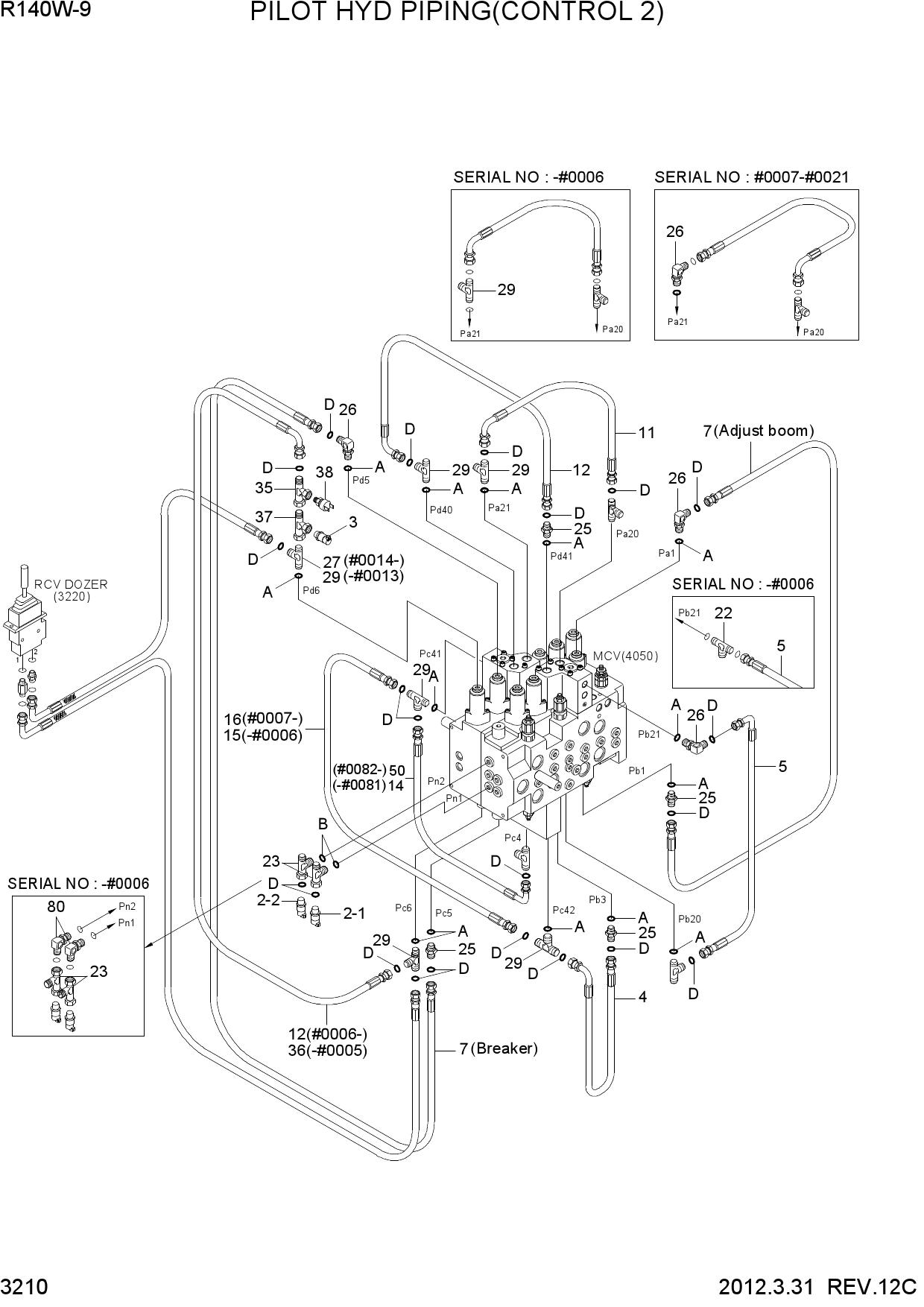

Запчасти для колесных экскаваторов Hyundai R140W-9 PILOT HYD PIPING(CONTROL 2)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 2-1 | 31Q8-40510 | SENSOR-PRESSURE | |
| 2-1 | 31Q4-40820 | SENSOR-PRESSURE | |
| 2-2 | 31Q8-40510 | SENSOR-PRESSURE | |
| 2-2 | 31Q4-40820 | SENSOR-PRESSURE | |
| 3 | 31Q8-40520 | PRESSURE SENSOR | |
| 3 | 31Q4-40830 | SENSOR-PRESSURE | |
| 4 | X400-042007 | HOSE ASSY-SYNFLEX,ORFS | |
| 5 | X400-042020 | HOSE ASSY-SYNFLEX,ORFS | |
| 5 | X420-042022 | HOSE ASSY-SYNFLEX,ORFS | |
| 5 | X400-042022 | HOSE ASSY-SYNFLEX,ORFS | |
| 7 | X400-042021 | HOSE ASSY-SYNFLEX,ORFS | |
| 7 | X400-042021 | HOSE ASSY-SYNFLEX,ORFS | |
| 7 | X400-042021 | HOSE ASSY-SYNFLEX,ORFS | |
| 7 | X400-042021 | HOSE ASSY-SYNFLEX,ORFS | |
| 11 | X420-042009 | HOSE ASSY-ORFS 0X90 | |
| 12 | X420-042012 | HOSE ASSY-ORFS 0X90 | |
| 12 | X420-042012 | HOSE ASSY-ORFS 0X90 | |
| 14 | X420-042022 | HOSE ASSY-SYNFLEX,ORFS | |
| 15 | X420-042023 | HOSE ASSY-SYNFLEX,ORFS | |
| 16 | X400-042023 | HOSE ASSY-SYNF,ORFS | |
| 16 | X400-042023 | HOSE ASSY-SYNF,ORFS | |
| 22 | 31N6-24120 | TEE-SHUTTLE | |
| 23 | 31N6-66080 | TEE-BRENCH TEST | |
| 23 | 31QA-22310 | TEE-BRANCH TYPE | |
| 25 | X500-110001 | CONNECTOR-ORFS | |
| 26 | X520-110001 | ELBOW-90,ORFS | |
| 26 | X520-110001 | ELBOW-90,ORFS | |
| 26 | X520-110001 | ELBOW-90,ORFS | |
| 27 | X810-045151 | TEE-B/TYPE,ORFS | |
| 29 | X820-045151 | TEE-R/TYPE,ORFS | |
| 29 | X820-045151 | TEE-R/TYPE,ORFS | |
| 29 | X820-045151 | TEE-R/TYPE,ORFS | |
| 35 | 31N5-10410 | TEE-SHUTTLE | |
| 36 | X420-042021 | HOSE ASSY-SYNFLEX,ORFS | |
| 37 | 31Q4-20160 | TEE-WITH TEST PORT | |
| 38 | 31E5-40540 | SWITCH-PRESSURE | |
| 50 | X420-042022 | HOSE ASSY-SYNFLEX,ORFS | |
| 80 | X520-110012 | ELBOW-90,ORFS | |
| A | S631-011004 | O-RING | |
| B | S631-014004 | O-RING | |
| D | S621-011001 | O-RING |
