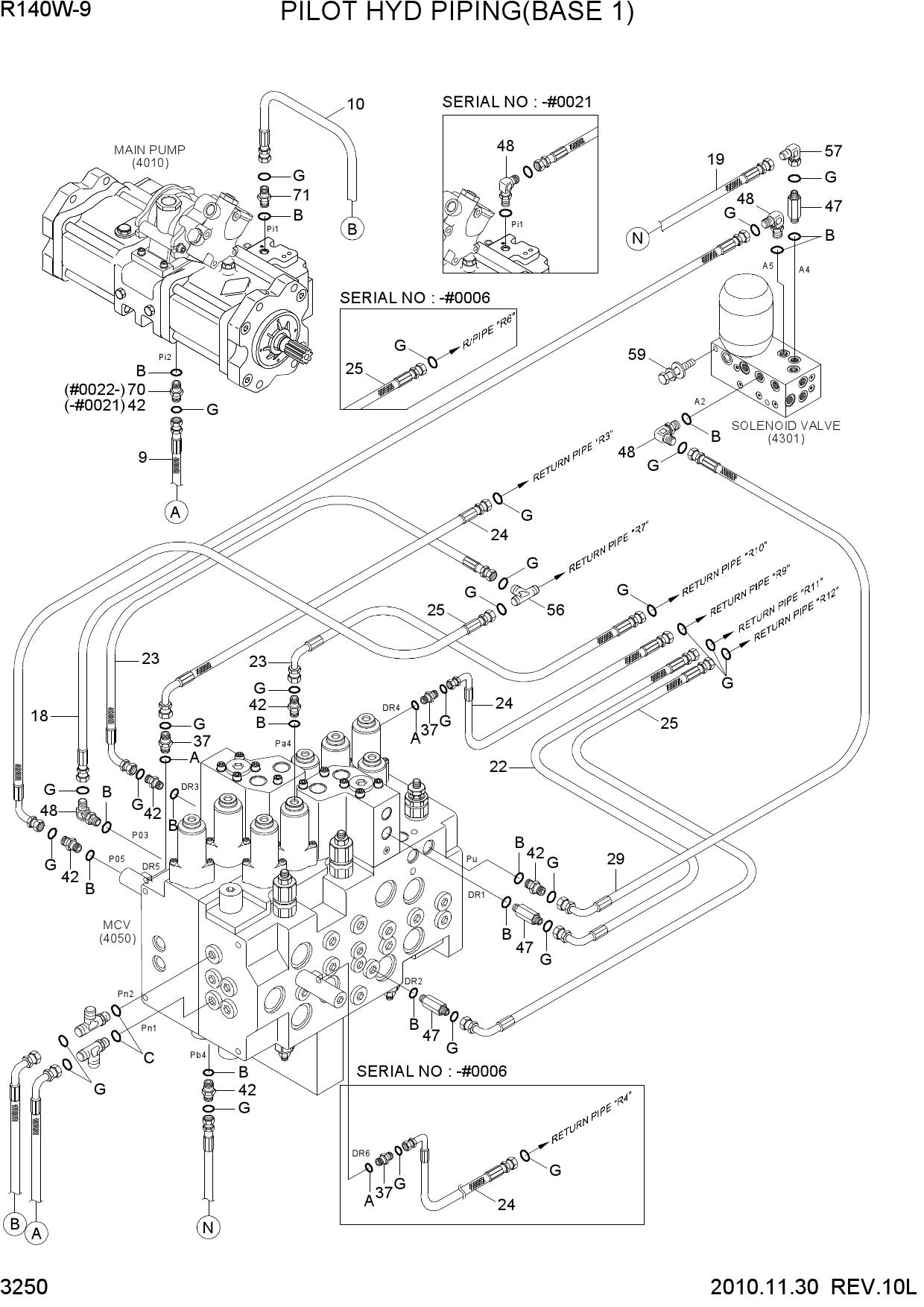

Запчасти для колесных экскаваторов Hyundai R140W-9 PILOT HYD PIPING(BASE 1)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 9 | P930-043045 | HOSE ASSY-ORFS 0X90 | |
| 9 | P930-043044 | HOSE ASSY-ORFS 0X90 | |
| 10 | P930-043052 | HOSE ASSY-ORFS 0X90 | |
| 10 | P930-043048 | HOSE ASSY-ORFS 0X90 | |
| 10 | P930-043050 | HOSE ASSY-ORFS 0X90 | |
| 18 | X400-042039 | HOSE ASSY-SYNF,ORFS | |
| 18 | X400-042038 | HOSE ASSY-SYNF,ORFS | |
| 19 | X400-042040 | HOSE ASSY-SYNFLEX,ORFS | |
| 19 | X400-042037 | HOSE ASSY-SYNF,ORFS | |
| 22 | X420-042006 | HOSE ASSY-SYNFLEX,ORFS | |
| 23 | X420-042007 | HOSE ASSY-SYNFLEX,ORFS | |
| 24 | X420-042008 | HOSE ASSY-SYNFLEX,ORFS | |
| 24 | X420-042008 | HOSE ASSY-SYNFLEX,ORFS | |
| 25 | X420-042010 | HOSE ASSY-SYNFLEX,ORFS | |
| 29 | X420-042042 | HOSE ASSY-SYNFLEX,ORFS | |
| 29 | X420-042040 | HOSE ASSY-ORFS 0X90 | |
| 37 | 31Q6-20210 | CONNECTOR-ORFS | |
| 37 | 31Q6-20210 | CONNECTOR-ORFS | |
| 42 | X500-110001 | CONNECTOR-ORFS | |
| 42 | X500-110001 | CONNECTOR-ORFS | |
| 47 | X511-104513 | CONNECTOR-LONG,ORFS | |
| 48 | X520-110001 | ELBOW-90,ORFS | |
| 48 | X520-110001 | ELBOW-90,ORFS | |
| 56 | X840-515151 | TEE-R/TYPE,ORFS | |
| 56 | X840-515151 | TEE-R/TYPE,ORFS | |
| 57 | X850-515100 | ELBOW-90,SWIVEL,ORFS | |
| 59 | S017-101206 | BOLT-HEX | |
| 70 | 31N6-25060 | FILTER-LAST GUARD | |
| 71 | 31Q4-25050 | FILTER-LAST GUARD | |
| A | S631-008004 | O-RING | |
| A | S631-008004 | O-RING | |
| B | S631-011004 | O-RING | |
| C | S631-014004 | O-RING | |
| G | S621-011001 | O-RING | |
| G | S621-011001 | O-RING |
