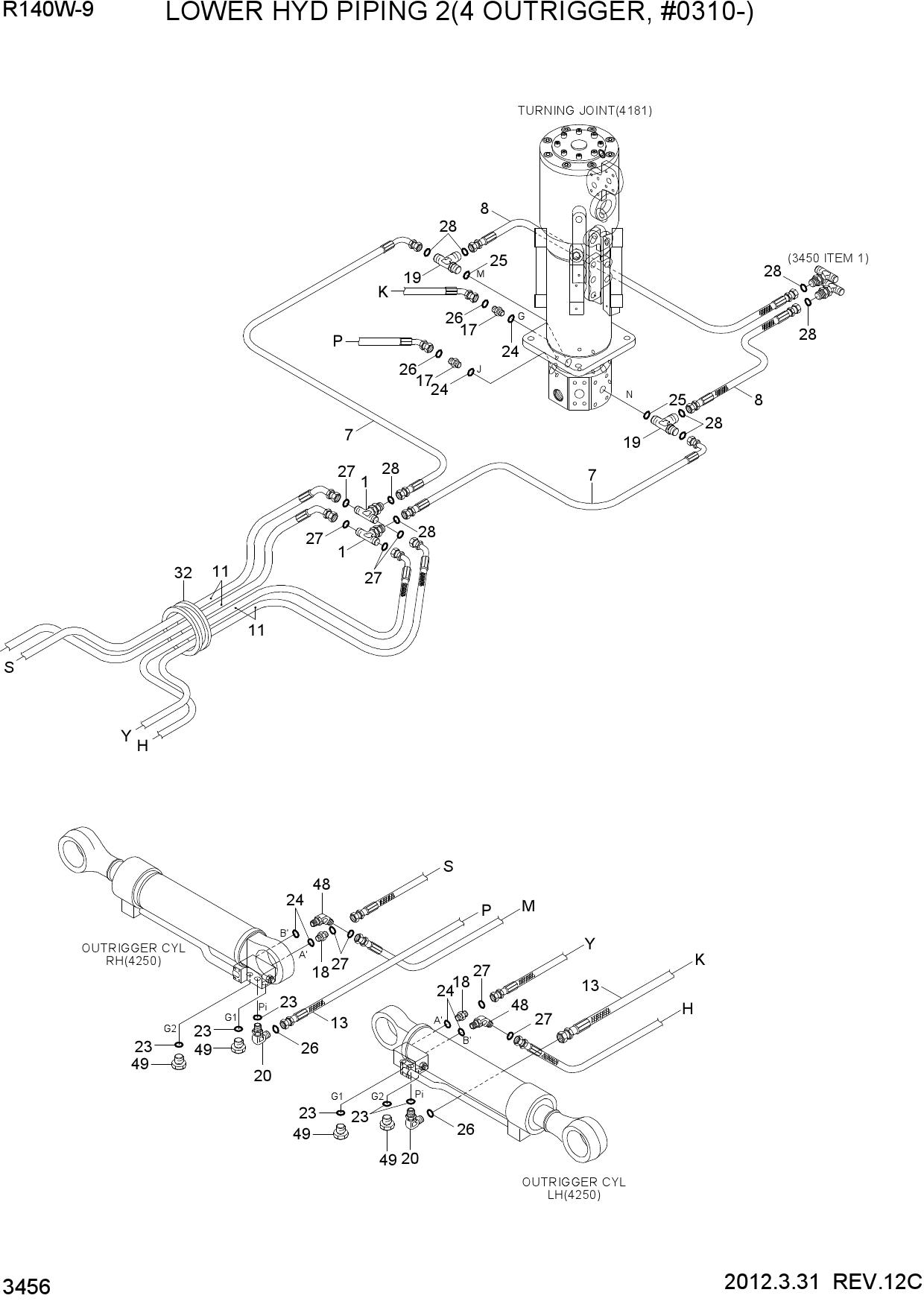

Запчасти для колесных экскаваторов Hyundai R140W-9 LOWER HYD PIPING 2(4 OUTRIGGER, #0310-)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 31Q4-43180 | TEE | |
| 7 | P933-087031 | HOSE ASSY-ORFS 0X90 | |
| 8 | P913-087013 | HOSE ASSY-ORFS 0X0 | |
| 8 | P913-087012 | HOSE ASSY-ORFS 0X0 | |
| 11 | P933-067020 | HOSE ASSY-ORFS 0X90 | |
| 13 | P923-044054 | HOSE ASSY-ORFS 0X45 | |
| 17 | X500-110013 | CONNECTOR-ORFS | |
| 18 | X500-110002 | CONNECTOR-ORFS | |
| 19 | X820-085353 | TEE-R/TYPE,ORFS | |
| 20 | X520-110001 | ELBOW-90,ORFS | |
| 23 | S631-011004 | O-RING | |
| 24 | S631-014004 | O-RING | |
| 25 | S631-018004 | O-RING | |
| 26 | S621-011001 | O-RING | |
| 27 | S621-012001 | O-RING | |
| 28 | S621-014001 | O-RING | |
| 32 | S760-091414 | GROMMET | |
| 48 | X530-110002 | ELBOW-45,ORFS | |
| 49 | P220-110102 | PLUG-HEX |
