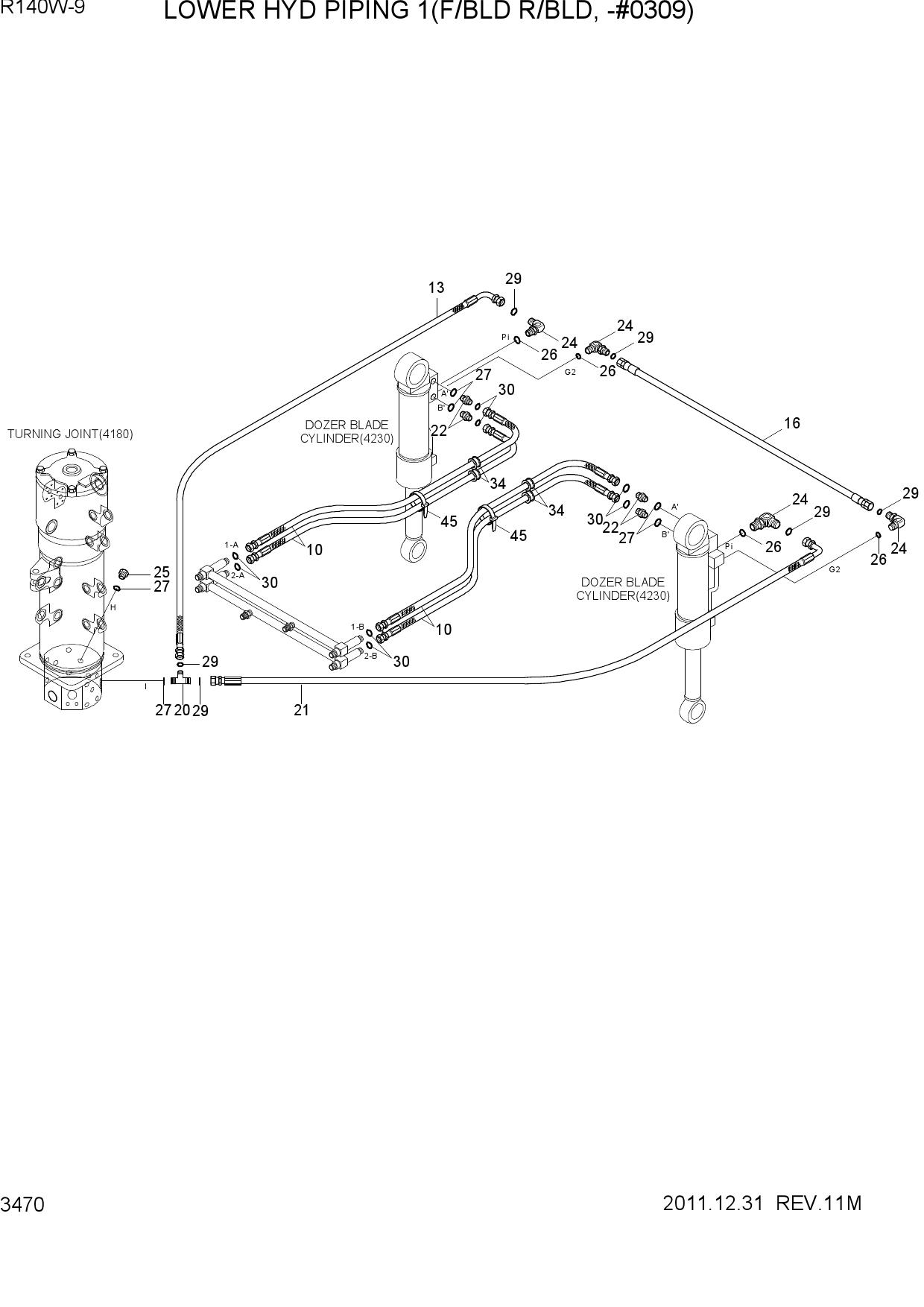

Запчасти для колесных экскаваторов Hyundai R140W-9 LOWER HYD PIPING 1(F/BLD R/BLD, -#0309)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 10 | P913-069025 | HOSE ASSY-ORFS 0X0 | |
| 13 | P913-044036 | HOSE ASSY-ORFS 0X0 | |
| 16 | P913-049018 | HOSE ASSY-ORFS 0X0 | |
| 20 | X820-065151 | TEE-R/TYPE,ORFS | |
| 21 | P913-044039 | HOSE ASSY-ORFS 0X0 | |
| 22 | X500-110002 | CONNECTOR-ORFS | |
| 24 | X520-110001 | ELBOW-90,ORFS | |
| 25 | P220-110103 | PLUG-HEX | |
| 26 | S631-011004 | O-RING | |
| 27 | S631-014004 | O-RING | |
| 29 | S621-011001 | O-RING | |
| 30 | S621-012001 | O-RING | |
| 34 | S760-102200 | GROMMET | |
| 45 | S552-102370 | CLAMP-BAND |
