- PUMP MOUNTING
- HYDRAULIC TANK
- HYDRAULIC TANK(MCV TYPE 3)
- UPPER HYDRAULIC PIPING(BASE)
- UPPER HYD PIPING(BASE, MCV TYPE 1)
- UPPER HYDRAULIC PIPING(BASE, MCV TYPE 3)
- UPPER HYDRAULIC PIPING(ATTACH)
- UPPER HYD PIPING(ATTACH, MCV TYPE 3)
- UPPER HYDRAULIC PIPING(TRAVEL)
- UPPER HYD PIPING(TRAVEL, MCV TYPE 3)
- PILOT HYD PIP(CNTL 1,MCV TYPE 1,-#0169)
- PILOT HYD PIP(CNTL 1,MCV TYPE 2,#0170-)
- PILOT HYD PIP(CNTL 1,MCV TYPE 3,#0443-)
- PILOT HYD PIP(CNTL 2,MCV TYPE 1,-#0169)
- PILOT HYD PIP(CNTL 2,MCV TYPE 2,#0170-)
- PILOT HYD PIP(CNTL 2,MCV TYPE 3,#0443-)
- PILOT HYD PIP(CNTL 3,MCV TYPE 1,-#0169)
- PILOT HYD PIP(CNTL 3,MCV TYPE 2,#0170-)
- PILOT HYD PIP(CNTL 3,MCV TYPE 3,#0443-)
- PILOT HYD PIP(BASE 1,MCV TYPE1,-#0169)
- PILOT HYD PIP(BASE 1,MCV TYPE2,#0170-)
- PILOT HYD PIP(BASE 1,MCV TYPE3,#0443-)
- PILOT HYD PIP(BASE 1,MCV TYPE1,#0746-)
- PILOT HYD PIP(BASE 2,MCV TYPE1,-#0169)
- PILOT HYD PIP(BASE 2,MCV TYPE2,#0170-)
- PILOT HYD PIP(BASE 2,MCV TYPE3,#0443-)
- PILOT HYD PIP(BASE 2,MCV TYPE1,#0746-)
- PILOT HYD PIP(BASE 3,MCV TYPE1,-#0169)
- PILOT HYD PIP(BASE 3,MCV TYPE2,#0170-)
- PILOT HYD PIP(BASE 3,MCV TYPE3,#0443-)
- PILOT HYD PIP(BASE 3,MCV TYPE1,#0746-)
- TRAVEL HYDRAULIC PIPING(T/MOTOR TYPE 1)
- TRAVEL HYDRAULIC PIPING(T/MOTOR TYPE 2)
- BOOM HYD PIPING(6.5M, STD, -#0134)
- BOOM HYD PIPING(6.5M, STD, #0135-)
- BOOM GREASE LUB SYSTEM(6.5M, STD)
- BOOM HYDRAULIC PIPING(6.15M)
- BOOM GREASE LUB SYSTEM(6.15M)
- BOOM SAFETY LOCK SYSTEM
- BOOM SAFETY LOCK SYSTEM(MCV TYPE 3)
- BOOM HYDRAULIC PIPING(8.6M)
- BOOM GREASE LUB SYSTEM(8.6M)
- ARM HYDRAULIC PIPING(3.2M, STD)
- ARM HYDRAULIC PIPING(2.5M)
- ARM HYDRAULIC PIPING(3.9M)
- ARM HYDRAULIC PIPING(4.3M)
- ARM SAFETY LOCK SYSTEM
- ARM SAFETY LOCK SYSTEM(MCV TYPE 3)
- ARM HYDRAULIC PIPING(5.1M)
- ARM HYDRAULIC PIPING(2.8M, #0219-)
- SINGLE ACTING MAIN PIPING KIT
- SINGLE ACTING MAIN PIP KIT(MCV TYPE 3)
- ATTACH PIPING KIT(S & D/ACTING)
- DOUBLE ACTING MAIN PIPING KIT
- DOUBLE ACTING MAIN PIP KIT(MCV TYPE 3)
- SINGLE PEDAL(DOUBLE ACTING)
- QUICK CLAMP HYD PIPING
- QUICK CLAMP(CLOSE TYPE)
- QUICK CLAMP(HOOK TYPE)

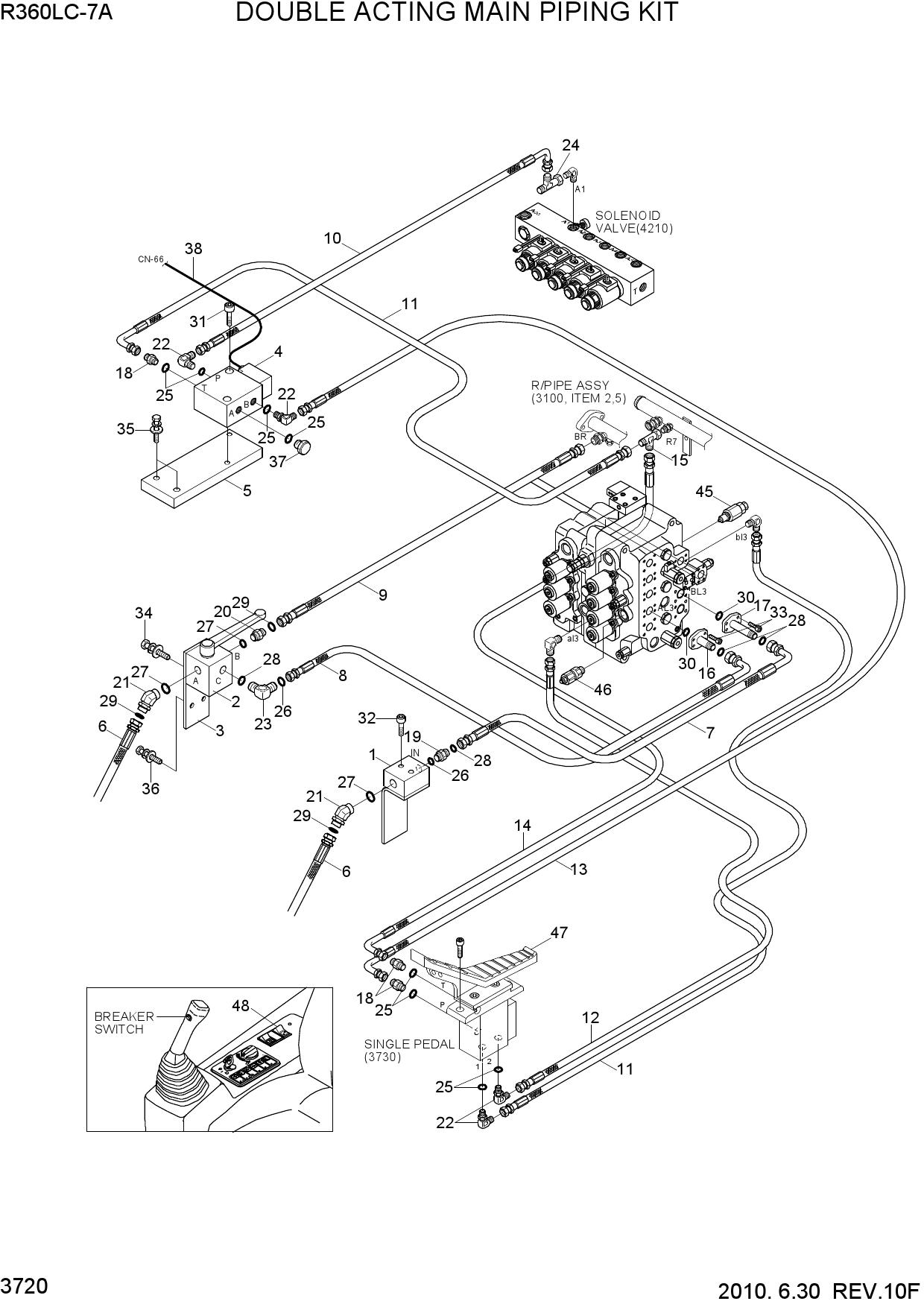

Запчасти для гусеничных экскаваторов Hyundai R360LC-7A DOUBLE ACTING MAIN PIPING KIT
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 31EM-91540 | JOINT ASSY-HOSE | |
| 2 | 31EM-91620 | JOINT-3 WAY | |
| 3 | 31E9-95010 | BRACKET-3 WAY JOINT | |
| 4 | 31N6-91230D | SOLENOID VLV-BREAKER | |
| 4-1 | XKBN-00192 | COIL-BREAKER SOL | |
| 5 | 31N6-91250 | BRACKET-SOL VLV | |
| 6 | P943-207334 | HOSE ASSY | |
| 6 | P944-207333 | HOSE ASSY-ORFS 0X0 | |
| 7 | P933-166025 | HOSE ASSY-ORFS 0X90 | |
| 7 | P933-166026 | HOSE ASSY-ORFS 0X90 | |
| 8 | P933-166033 | HOSE ASSY-ORFS 0X90 | |
| 9 | 31NA-92290 | HOSE ASSY | |
| 9 | P913-203029 | HOSE ASSY-ORFS 0X0 | |
| 10 | P420-042030 | HOSE ASSY-COMP 0X90 | |
| 11 | P400-042072 | HOSE ASSY-COMPACT | |
| 12 | P400-042082 | HOSE ASSY-COMPACT | |
| 13 | P420-042106 | HOSE ASSY-COMP 0X90 | |
| 14 | P420-042082 | HOSE ASSY-COMP 0X90 | |
| 15 | 31N6-22030 | TEE-SWIVEL NUT | |
| 16 | 31NA-92280 | PIPE ASSY | |
| 17 | 31NA-92300 | PIPE ASSY | |
| 18 | P010-110002 | CONNECTOR | |
| 19 | X500-110005 | CONNECTOR-ORFS | |
| 20 | X500-110006 | CONNECTOR-ORFS | |
| 21 | X530-110006 | ELBOW-45 | |
| 22 | P020-110002 | ELBOW-90 | |
| 23 | X520-110005 | ELBOW-90,ORFS | |
| 24 | 31ER-20040 | TEE-SWIVEL | |
| 25 | S631-011004 | O-RING | |
| 26 | S631-029004 | O-RING | |
| 27 | S631-038004 | O-RING | |
| 28 | S621-021001 | O-RING | |
| 29 | S621-025001 | O-RING | |
| 30 | Y171-027004 | O-RING | |
| 31 | S109-080456 | BOLT-SOCKET | |
| 32 | S109-120656 | BOLT-SOCKET | |
| 33 | S109-140406 | BOLT-SOCKET | |
| 34 | S035-082522 | BOLT-W/WASHER | |
| 35 | S037-102522 | BOLT-W/WASHER | |
| 36 | S037-123022 | BOLT-W/WASHER | |
| 37 | P220-110102 | PLUG-HEX | |
| 38 | 21NB-00200 | HARNESS-EXT | |
| 45 | 31EH-90140 | PORT RELIEF VALVE | |
| 46 | 3537-326-380-30 | PORT RELIEF VALVE | |
| 47 | 34E7-04720 | PEDAL-SINGLE | |
| 48 | 21E6-30540 | SWITCH-BREAKER |
