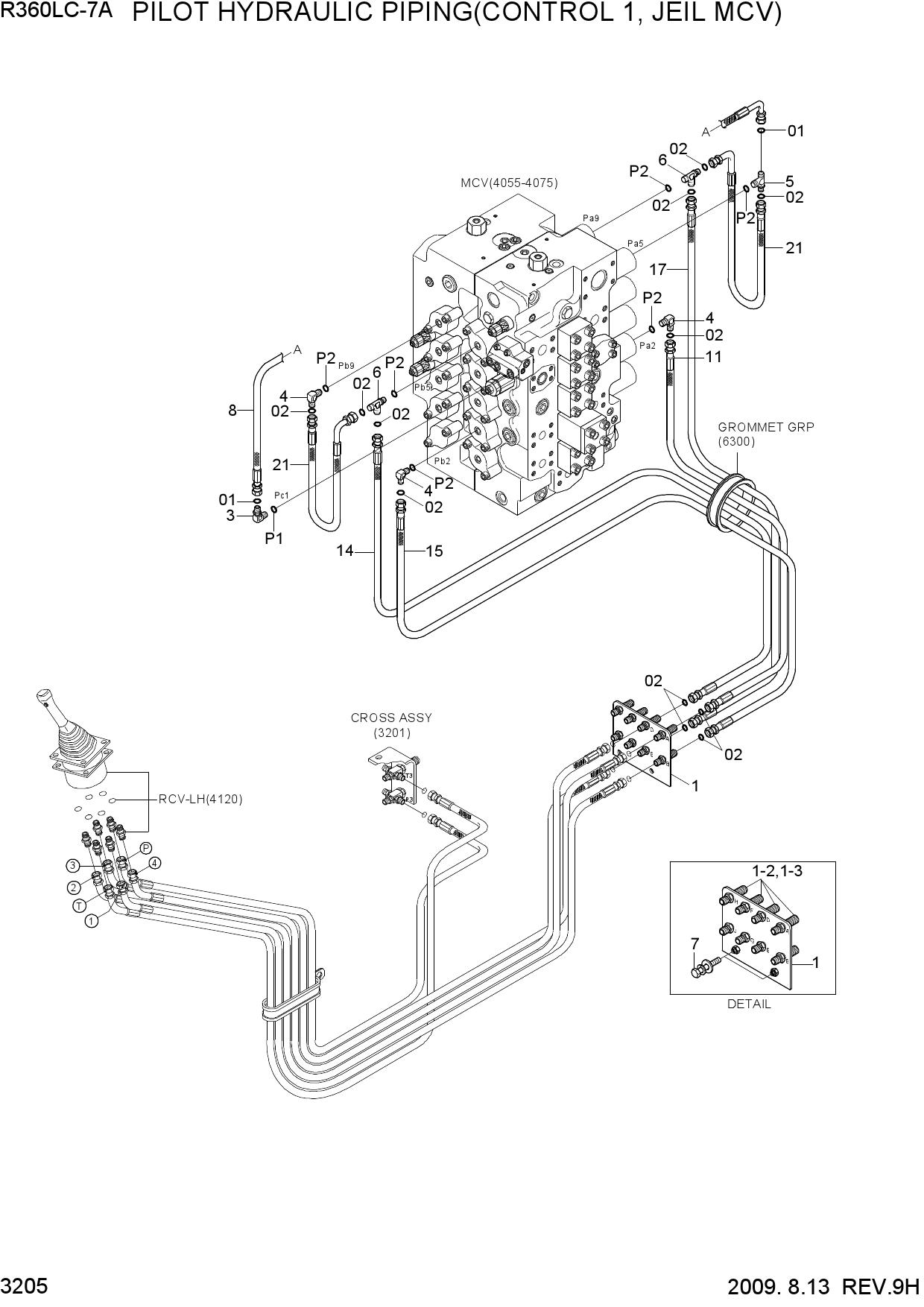

Запчасти для гусеничных экскаваторов Hyundai R360LC-7A PILOT HYD PIP(CNTL 1,MCV TYPE 3,#0443-)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 001 | 31NB-20011 | TERMINAL ASSY | |
| 3 | X520-110001 | ELBOW-90,ORFS | |
| 4 | X520-110002 | ELBOW-90,ORFS | |
| 5 | X820-065251 | TEE-R/TYPE,ORFS | |
| 6 | X820-065252 | TEE-R/TYPE,ORFS | |
| 7 | S037-102526 | BOLT-W/WASHER | |
| 8 | X420-042018 | HOSE ASSY-SYNFLEX,ORFS | |
| 11 | X400-062024 | HOSE ASSY-SYNFLEX,ORFS | |
| 11 | X400-062023 | HOSE ASSY-SYNF,ORFS | |
| 14 | X400-062038 | HOSE ASSY-SYNF,ORFS | |
| 14 | X400-062037 | HOSE ASSY-SYNFLEX,ORFS | |
| 15 | X400-062032 | HOSE ASSY-SYNF,ORFS | |
| 17 | X400-062030 | HOSE ASSY-SYNFLEX,ORFS | |
| 21 | X420-062009 | HOSE ASSY-ORFS 0X90 | |
| P1 | S631-011004 | O-RING | |
| P2 | S631-014004 | O-RING | |
| 001 | S621-011001 | O-RING | |
| 002 | S621-012001 | O-RING |
