- PUMP MOUNTING
- HYDRAULIC TANK
- HYDRAULIC TANK(MCV TYPE 3)
- UPPER HYDRAULIC PIPING(BASE)
- UPPER HYD PIPING(BASE, MCV TYPE 1)
- UPPER HYDRAULIC PIPING(BASE, MCV TYPE 3)
- UPPER HYDRAULIC PIPING(ATTACH)
- UPPER HYD PIPING(ATTACH, MCV TYPE 3)
- UPPER HYDRAULIC PIPING(TRAVEL)
- UPPER HYD PIPING(TRAVEL, MCV TYPE 3)
- PILOT HYD PIP(CNTL 1,MCV TYPE 1,-#0169)
- PILOT HYD PIP(CNTL 1,MCV TYPE 2,#0170-)
- PILOT HYD PIP(CNTL 1,MCV TYPE 3,#0443-)
- PILOT HYD PIP(CNTL 2,MCV TYPE 1,-#0169)
- PILOT HYD PIP(CNTL 2,MCV TYPE 2,#0170-)
- PILOT HYD PIP(CNTL 2,MCV TYPE 3,#0443-)
- PILOT HYD PIP(CNTL 3,MCV TYPE 1,-#0169)
- PILOT HYD PIP(CNTL 3,MCV TYPE 2,#0170-)
- PILOT HYD PIP(CNTL 3,MCV TYPE 3,#0443-)
- PILOT HYD PIP(BASE 1,MCV TYPE1,-#0169)
- PILOT HYD PIP(BASE 1,MCV TYPE2,#0170-)
- PILOT HYD PIP(BASE 1,MCV TYPE3,#0443-)
- PILOT HYD PIP(BASE 1,MCV TYPE1,#0746-)
- PILOT HYD PIP(BASE 2,MCV TYPE1,-#0169)
- PILOT HYD PIP(BASE 2,MCV TYPE2,#0170-)
- PILOT HYD PIP(BASE 2,MCV TYPE3,#0443-)
- PILOT HYD PIP(BASE 2,MCV TYPE1,#0746-)
- PILOT HYD PIP(BASE 3,MCV TYPE1,-#0169)
- PILOT HYD PIP(BASE 3,MCV TYPE2,#0170-)
- PILOT HYD PIP(BASE 3,MCV TYPE3,#0443-)
- PILOT HYD PIP(BASE 3,MCV TYPE1,#0746-)
- TRAVEL HYDRAULIC PIPING(T/MOTOR TYPE 1)
- TRAVEL HYDRAULIC PIPING(T/MOTOR TYPE 2)
- BOOM HYD PIPING(6.5M, STD, -#0134)
- BOOM HYD PIPING(6.5M, STD, #0135-)
- BOOM GREASE LUB SYSTEM(6.5M, STD)
- BOOM HYDRAULIC PIPING(6.15M)
- BOOM GREASE LUB SYSTEM(6.15M)
- BOOM SAFETY LOCK SYSTEM
- BOOM SAFETY LOCK SYSTEM(MCV TYPE 3)
- BOOM HYDRAULIC PIPING(8.6M)
- BOOM GREASE LUB SYSTEM(8.6M)
- ARM HYDRAULIC PIPING(3.2M, STD)
- ARM HYDRAULIC PIPING(2.5M)
- ARM HYDRAULIC PIPING(3.9M)
- ARM HYDRAULIC PIPING(4.3M)
- ARM SAFETY LOCK SYSTEM
- ARM SAFETY LOCK SYSTEM(MCV TYPE 3)
- ARM HYDRAULIC PIPING(5.1M)
- ARM HYDRAULIC PIPING(2.8M, #0219-)
- SINGLE ACTING MAIN PIPING KIT
- SINGLE ACTING MAIN PIP KIT(MCV TYPE 3)
- ATTACH PIPING KIT(S & D/ACTING)
- DOUBLE ACTING MAIN PIPING KIT
- DOUBLE ACTING MAIN PIP KIT(MCV TYPE 3)
- SINGLE PEDAL(DOUBLE ACTING)
- QUICK CLAMP HYD PIPING
- QUICK CLAMP(CLOSE TYPE)
- QUICK CLAMP(HOOK TYPE)

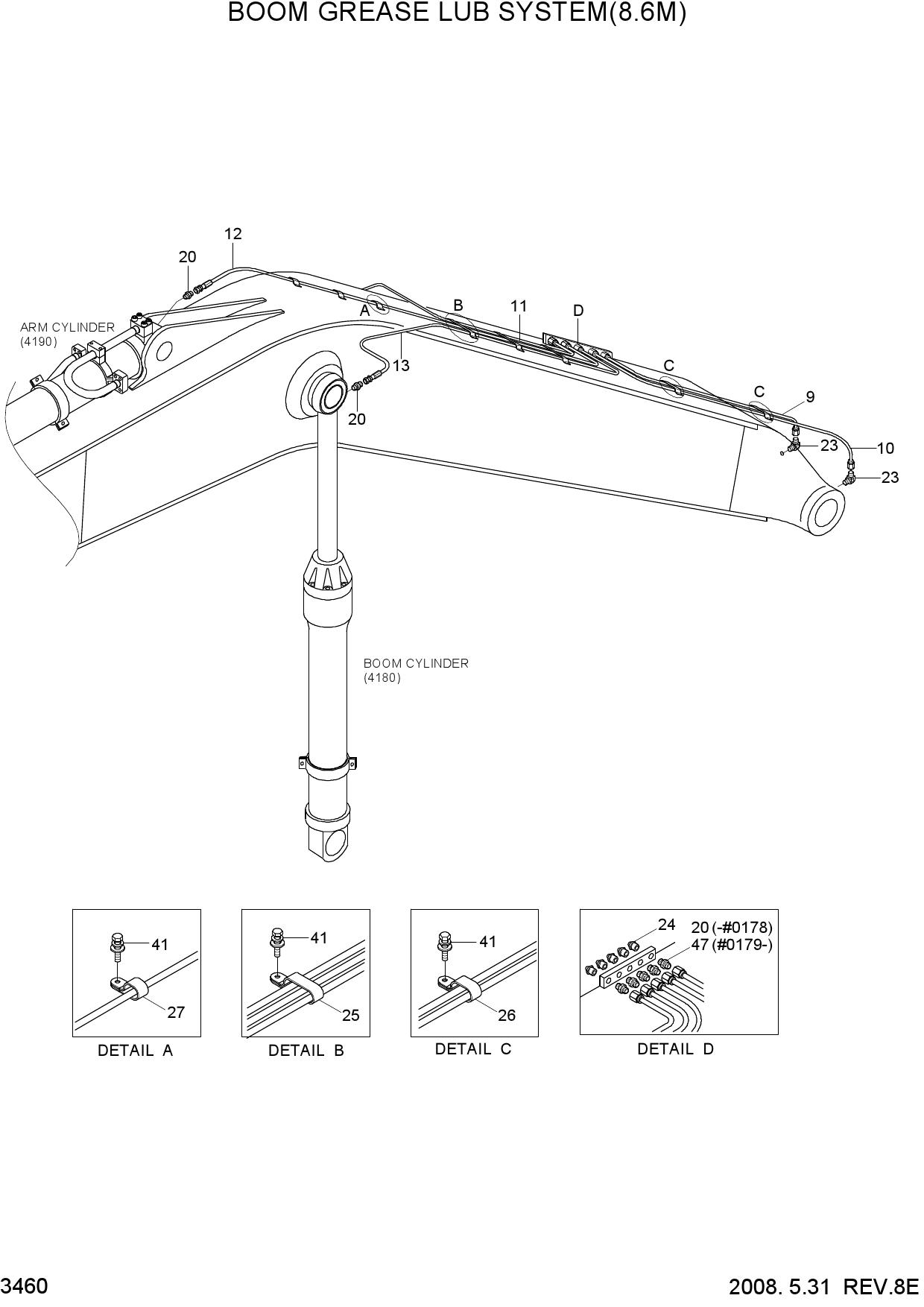

Запчасти для гусеничных экскаваторов Hyundai R360LC-7A BOOM GREASE LUB SYSTEM(8.6M)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 9 | P840-042025 | HOSE ASSY-SYN THD | |
| 10 | P840-042026 | HOSE ASSY-SYN THD | |
| 11 | P840-042052 | HOSE ASSY-SYN THD | |
| 12 | P840-042109 | HOSE ASSY-SYN THD | |
| 13 | P840-042054 | HOSE ASSY-SYN THD | |
| 20 | P010-430011 | CONNECTOR | |
| 20 | P010-430011 | CONNECTOR | |
| 23 | 31NB-50280 | ELBOW-90 | |
| 24 | S651-810002 | NIPPLE-GREASE | |
| 25 | 31N8-50390 | CLAMP-HOSE | |
| 26 | 31N8-50380 | CLAMP-HOSE | |
| 27 | 31N8-50370 | CLAMP-HOSE | |
| 41 | S035-062022 | BOLT-W/WASHER | |
| 47 | 31W5-70060 | CONNECTOR |
