- PUMP MOUNTING
- HYDRAULIC TANK
- HYDRAULIC TANK(MCV TYPE 3)
- UPPER HYDRAULIC PIPING(BASE)
- UPPER HYD PIPING(BASE, MCV TYPE 1)
- UPPER HYDRAULIC PIPING(BASE, MCV TYPE 3)
- UPPER HYDRAULIC PIPING(ATTACH)
- UPPER HYD PIPING(ATTACH, MCV TYPE 3)
- UPPER HYDRAULIC PIPING(TRAVEL)
- UPPER HYD PIPING(TRAVEL, MCV TYPE 3)
- PILOT HYD PIP(CNTL 1,MCV TYPE 1,-#0169)
- PILOT HYD PIP(CNTL 1,MCV TYPE 2,#0170-)
- PILOT HYD PIP(CNTL 1,MCV TYPE 3,#0443-)
- PILOT HYD PIP(CNTL 2,MCV TYPE 1,-#0169)
- PILOT HYD PIP(CNTL 2,MCV TYPE 2,#0170-)
- PILOT HYD PIP(CNTL 2,MCV TYPE 3,#0443-)
- PILOT HYD PIP(CNTL 3,MCV TYPE 1,-#0169)
- PILOT HYD PIP(CNTL 3,MCV TYPE 2,#0170-)
- PILOT HYD PIP(CNTL 3,MCV TYPE 3,#0443-)
- PILOT HYD PIP(BASE 1,MCV TYPE1,-#0169)
- PILOT HYD PIP(BASE 1,MCV TYPE2,#0170-)
- PILOT HYD PIP(BASE 1,MCV TYPE3,#0443-)
- PILOT HYD PIP(BASE 1,MCV TYPE1,#0746-)
- PILOT HYD PIP(BASE 2,MCV TYPE1,-#0169)
- PILOT HYD PIP(BASE 2,MCV TYPE2,#0170-)
- PILOT HYD PIP(BASE 2,MCV TYPE3,#0443-)
- PILOT HYD PIP(BASE 2,MCV TYPE1,#0746-)
- PILOT HYD PIP(BASE 3,MCV TYPE1,-#0169)
- PILOT HYD PIP(BASE 3,MCV TYPE2,#0170-)
- PILOT HYD PIP(BASE 3,MCV TYPE3,#0443-)
- PILOT HYD PIP(BASE 3,MCV TYPE1,#0746-)
- TRAVEL HYDRAULIC PIPING(T/MOTOR TYPE 1)
- TRAVEL HYDRAULIC PIPING(T/MOTOR TYPE 2)
- BOOM HYD PIPING(6.5M, STD, -#0134)
- BOOM HYD PIPING(6.5M, STD, #0135-)
- BOOM GREASE LUB SYSTEM(6.5M, STD)
- BOOM HYDRAULIC PIPING(6.15M)
- BOOM GREASE LUB SYSTEM(6.15M)
- BOOM SAFETY LOCK SYSTEM
- BOOM SAFETY LOCK SYSTEM(MCV TYPE 3)
- BOOM HYDRAULIC PIPING(8.6M)
- BOOM GREASE LUB SYSTEM(8.6M)
- ARM HYDRAULIC PIPING(3.2M, STD)
- ARM HYDRAULIC PIPING(2.5M)
- ARM HYDRAULIC PIPING(3.9M)
- ARM HYDRAULIC PIPING(4.3M)
- ARM SAFETY LOCK SYSTEM
- ARM SAFETY LOCK SYSTEM(MCV TYPE 3)
- ARM HYDRAULIC PIPING(5.1M)
- ARM HYDRAULIC PIPING(2.8M, #0219-)
- SINGLE ACTING MAIN PIPING KIT
- SINGLE ACTING MAIN PIP KIT(MCV TYPE 3)
- ATTACH PIPING KIT(S & D/ACTING)
- DOUBLE ACTING MAIN PIPING KIT
- DOUBLE ACTING MAIN PIP KIT(MCV TYPE 3)
- SINGLE PEDAL(DOUBLE ACTING)
- QUICK CLAMP HYD PIPING
- QUICK CLAMP(CLOSE TYPE)
- QUICK CLAMP(HOOK TYPE)

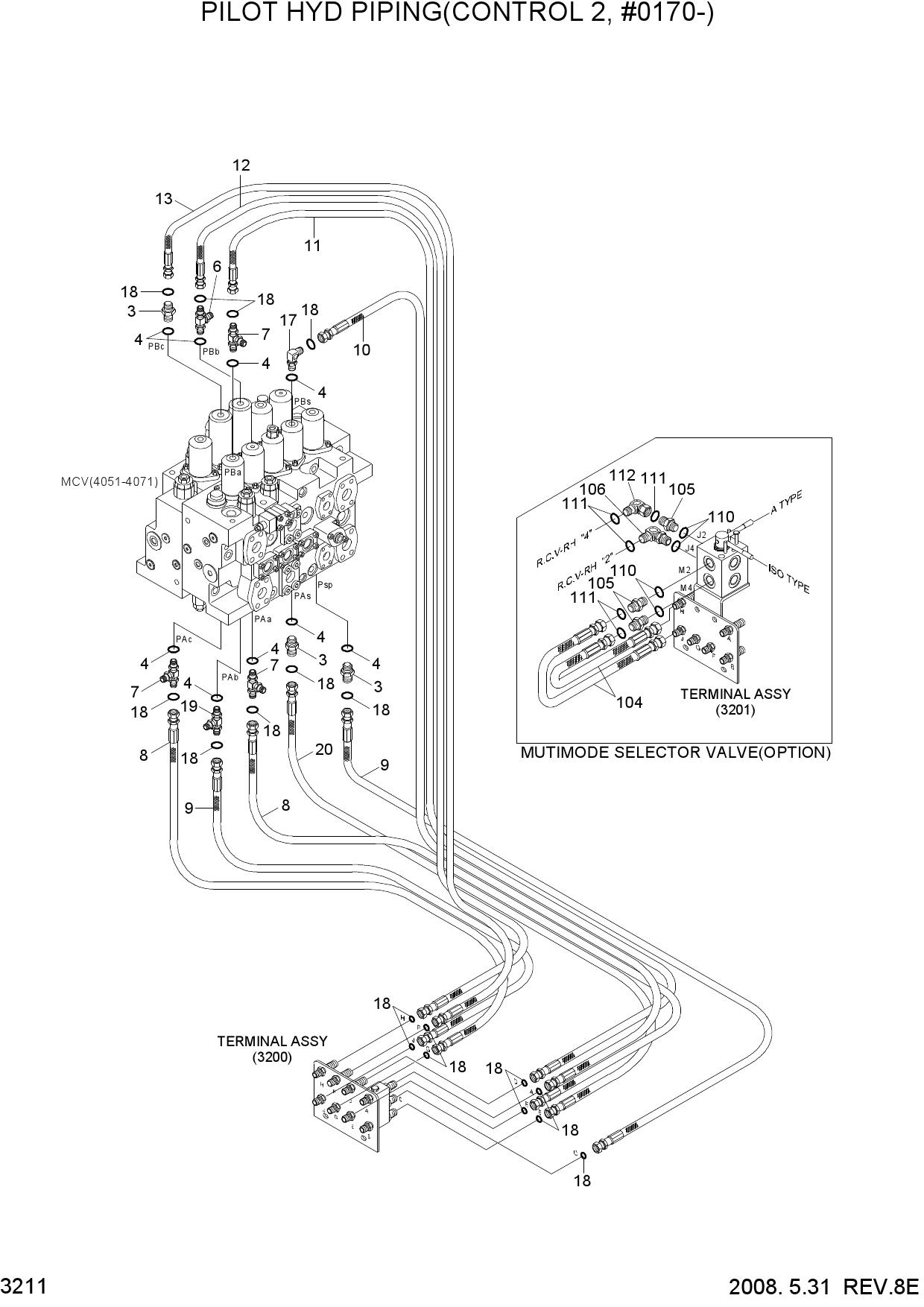

Запчасти для гусеничных экскаваторов Hyundai R360LC-7A PILOT HYD PIP(CNTL 2,MCV TYPE 2,#0170-)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| N* | 30NA-23120 | CONTROL LINE INSTALL | |
| N* | 30NA-23120 | CONTROL LINE INSTALL | |
| 2 | 31N8-24010 | TERMINAL ASSY-C | |
| 3 | X500-110002 | CONNECTOR-ORFS | |
| 4 | S631-014004 | O-RING | |
| 5 | S037-102526 | BOLT-W/WASHER | |
| 6 | X810-065252 | TEE-B/TYPE,ORFS | |
| 7 | X820-065252 | TEE-R/TYPE,ORFS | |
| 8 | X400-062029 | HOSE ASSY-SYNF,ORFS | |
| 9 | X420-062027 | HOSE ASSY-ORFS 0X90 | |
| 10 | X400-062033 | HOSE ASSY-SYNFLEX,ORFS | |
| 11 | X400-062037 | HOSE ASSY-SYNFLEX,ORFS | |
| 12 | X400-062039 | HOSE ASSY-SYNF ORFS | |
| 13 | X400-062044 | HOSE ASSY-SYNFLEX,ORFS | |
| 17 | X520-110002 | ELBOW-90,ORFS | |
| 18 | S621-012001 | O-RING | |
| 19 | X820-065152 | TEE-R/TYPE,ORFS | |
| 20 | X400-062025 | HOSE ASSY-SYNFLEX,ORFS | |
| 104 | P910-062008 | HOSE ASSY-ORFS 0X0 | |
| 105 | X500-110011 | CONNECTOR-ORFS | |
| 106 | X520-110011 | ELBOW-90,ORFS | |
| 110 | S631-011004 | O-RING | |
| 111 | S621-012001 | O-RING | |
| 112 | X850-525200 | ELBOW-90,SWIVEL,ORFS |
