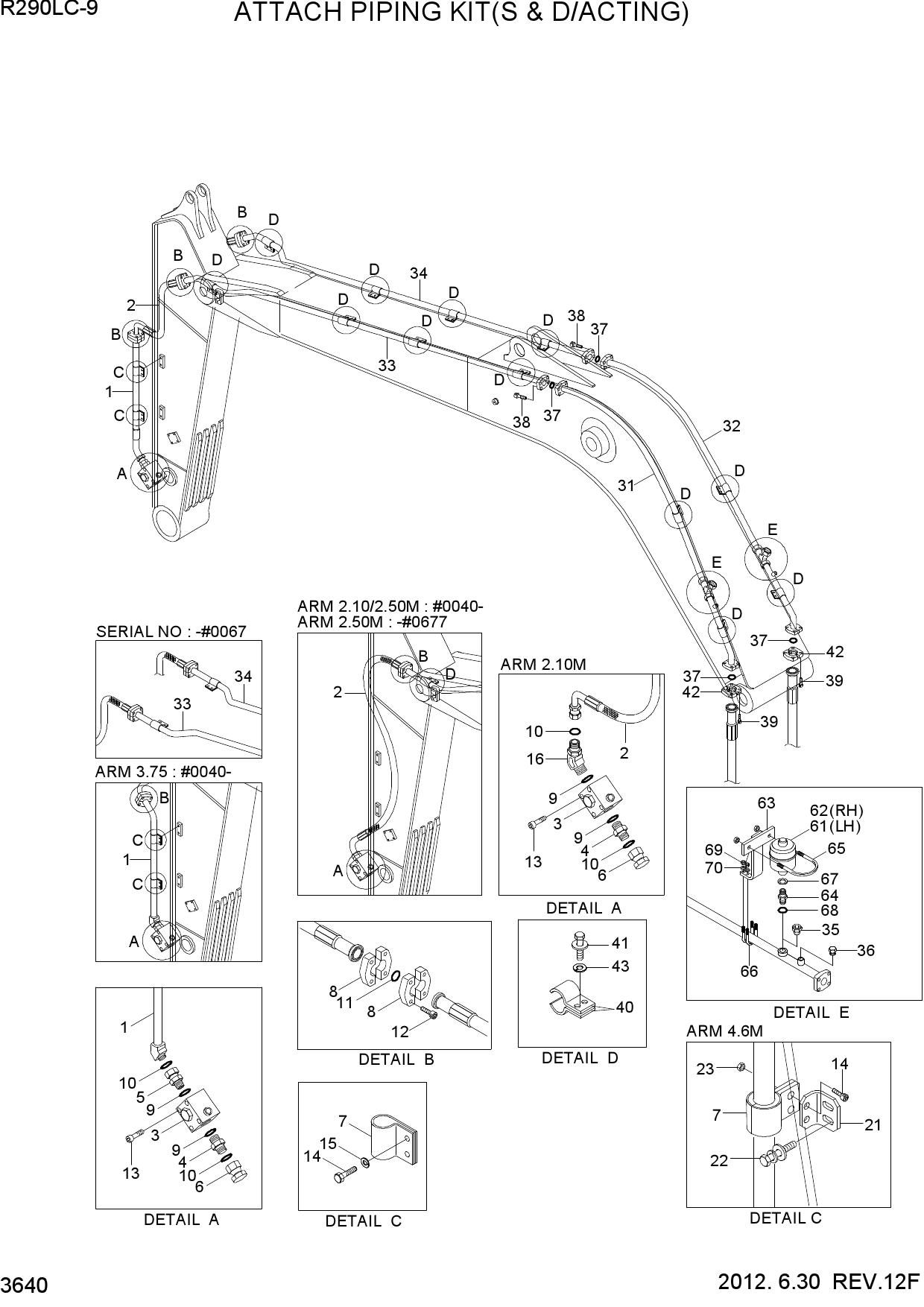

Запчасти для гусеничных экскаваторов Hyundai R290LC-9 ATTACH PIPING KIT(S & D/ACTING)

< В раздел SINGLE PEDAL(DOUBLE ACTING) >
№ Номер Описание Заказать
*-2 31Q8-91410 ARM PIPING KIT-BREAKER
*-2 34Q8-91410 ARM PIPING KIT-BREAKER
*-2 34Q8-91411 ARM PIPING KIT-BREAKER
*-2 31Q8-91420 ARM PIPING KIT-BREAKER
*-2 31Q8-91421 ARM PIPING KIT-BREAKER
*-2 34Q8-91420 ARM PIPING KIT-BREAKER
*-2 34Q8-91421 ARM PIPING KIT-BREAKER
*-2 31Q8-91430 ARM PIPING KIT-BREAKER
*-2 31Q8-91431 ARM PIPING KIT-BREAKER
*-2 31Q8-91432 ARM PIPING KIT-BREAKER
*-2 34Q8-91430 ARM PIPING KIT-BREAKER
*-2 34Q8-91431 ARM PIPING KIT-BREAKER
*-2 31Q8-91440 ARM PIPING KIT-BREAKER
*-2 34Q8-91440 ARM PIPING KIT-BREAKER
*-2 34Q8-91441 ARM PIPING KIT-BREAKER
*-2 31Q8-91480 ARM PIPING KIT-BREAKER
*-2 34Q8-91480 ARM PIPING KIT-BREAKER
*-2 34Q8-91481 ARM PIPING KIT-BREAKER
*-2 34Q8-91470 ARM PIPING KIT-BREAKER
*-2 34Q8-91471 ARM PIPING KIT-BREAKER
1 31Q8-91510 PIPE WA
1 31Q8-91520 PIPE WA
1 31Q8-91520 PIPE WA
1 31Q8-91530 PIPE WA
1 31Q8-91580 PIPE WA
1 31Q8-91581 PIPE WA
1 31Q8-91730 PIPE WA
1 31Q8-92400 PIPE WA
2 P705-207338 HOSE ASSY-FLG 0X90
2 P704-207328 HOSE ASSY-FLG 0X90
2 P994-207333 HOSE ASSY-FLG 0X90
2 P995-207334 HOSE ASSY-ORFS 0X90
2 P704-207330 HOSE ASSY-FLG 0X90
2 P994-207343 HOSE ASSY-FLG 0X90
2 P705-207336 HOSE ASSY-FLG 0X90
2 P704-207347 HOSE ASSY-FLG 0X90
2 P705-207348 HOSE ASSY-FLG 0X90
2 P705-207338 HOSE ASSY-FLG 0X90
2 P705-166335 HOSE ASSY-FLG 0X90
3 31Q8-91550 STOP VALVE
3 31Q8-91551 STOP VALVE
3 31Q8-92550 STOP VALVE-LH
3 31Q8-92560 STOP VALVE-RH
4 X500-110006 CONNECTOR-ORFS
4 P010-110007 CONNECTOR
4 X500-110006 CONNECTOR-ORFS
4 P010-110007 CONNECTOR
4 X500-110006 CONNECTOR-ORFS
4 X500-110006 CONNECTOR-ORFS
4 X500-110006 CONNECTOR-ORFS
4 P010-110007 CONNECTOR
4 P010-110006 CONNECTOR
5 31Q8-91560 ADAPTER
5 31Q8-91560 ADAPTER
5 31Q8-91560 ADAPTER
5 31Q6-91560 ADAPTER
5 31Q8-91560 ADAPTER
6 X710-100107 CAP-HYD,ORFS
6 P290-100107 CAP
6 P290-100106 CAP
7 31ND-51001 CLAMP ASSY
7 31ND-51001 CLAMP ASSY
7 31ND-51001 CLAMP ASSY
7 31E7-01711 CLAMP ASSY
7 31ND-51001 CLAMP ASSY
7 31ND-51001 CLAMP ASSY
8 P173-200106 FLANGE-HYD,SPLIT
8 P173-200106 FLANGE-HYD,SPLIT
8 P173-200106 FLANGE-HYD,SPLIT
8 P173-200106 FLANGE-HYD,SPLIT
8 P173-200106 FLANGE-HYD,SPLIT
8 P173-200106 FLANGE-HYD,SPLIT
8 P173-200106 FLANGE-HYD,SPLIT
8 P173-160104 FLANGE-HYD,SPLIT
9 S631-038004 O-RING
9 S631-029004 O-RING
10 S621-025001 O-RING
10 S621-025001 O-RING
10 S621-021001 O-RING
11 Y171-027004 O-RING
11 Y171-027004 O-RING
11 Y171-027004 O-RING
11 Y171-027004 O-RING
11 Y171-027004 O-RING
11 Y171-027004 O-RING
11 Y171-027004 O-RING
11 Y171-024004 O-RING
12 S109-100406 BOLT-SOCKET
12 S109-100406 BOLT-SOCKET
12 S109-100406 BOLT-SOCKET
12 S109-100406 BOLT-SOCKET
12 S109-100406 BOLT-SOCKET
12 S109-100406 BOLT-SOCKET
12 S109-100406 BOLT-SOCKET
12 S109-100306 BOLT-SOCKET
13 S109-120706 BOLT-SOCKET
14 S017-16050D BOLT-HEX
14 S017-16050D BOLT-HEX
14 S017-16050D BOLT-HEX
14 S017-16050D BOLT-HEX
14 S017-16050D BOLT-HEX
14 S037-123526 BOLT-W/WASHER
15 S411-160006 WASHER-SPRING
15 S411-160006 WASHER-SPRING
15 S411-160006 WASHER-SPRING
15 S411-160006 WASHER-SPRING
15 S411-160006 WASHER-SPRING
16 X530-110006 ELBOW-45
20 31Q8-92410 PIPW WA
21 31Q8-92430 BRACKET
22 S037-124526 BOLT-W/WASHER
23 S207-12100B NUT-HEX
*-3 31Q8-91310 BOOM PIPINT KIT
*-3 31Q8-91311 BOOM PIPING KIT
*-3 34Q8-91310 BOOM PIPING KIT-BREAKER
*-3 31Q8-91320 BOOM PIPING KIT
*-3 34Q8-91320 BOOM PIPING KIT-BREAKER
31 31Q8-91610 PIPE ASSY
31 31Q8-91740 PIPE WA
32 31Q8-91620 PIPE ASSY
32 31Q8-91750 PIPE WA
33 31Q8-91630 PIPE ASSY
33 31Q8-91631 PIPE ASSY
33 31Q8-91760 PIPE WA
34 31Q8-91640 PIPE ASSY
34 31Q8-91641 PIPE ASSY
34 31Q8-91770 PIPE WA
35 P220-110205 PLUG-SOCKET
36 31EK-11130 COUPLING-SCREW
37 Y171-027004 O-RING
37 Y171-024004 O-RING
38 S109-100506 BOLT-SOCKET
39 S109-100406 BOLT-SOCKET
39 S109-100306 BOLT-SOCKET
40 34L1-01851 CLAMP ASSY
40 31ND-51001 CLAMP ASSY
40 31E7-01711 CLAMP ASSY
41 S037-123526 BOLT-W/WASHER
41 S017-16050D BOLT-HEX
41 S037-123526 BOLT-W/WASHER
42 P173-200106 FLANGE-HYD,SPLIT
42 P173-160104 FLANGE-HYD,SPLIT
43 S411-160006 WASHER-SPRING
*-4 31Q8-90370 ACCUMULATOR KIT
61 31Q8-91670 ACCUMULATOR
62 31Q8-91680 ACCUMULATOR
63 32E6-92080 BRACKET-ACCUM
64 31Q8-91690 CONNECTOR
65 32E6-92060 U-BOLT
66 S071-034330 U-BOLT
67 31Q8-91700 SEAL
68 S631-024004 O-RING
69 S205-10100B NUT-HEX
70 S403-10200B WASHER-PLAIN
Для поиска необходимых позиций выберите нужный раздел каталога запасных частей Hyundai Чтобы купить запчасти для R290LC-9 в компании ООО «ЮКОЗ ТРЕИД» позвоните нам по телефонам указанным в разделе Контакты или отправьте сообщение через форму запроса в ближайший к вам филиал.
