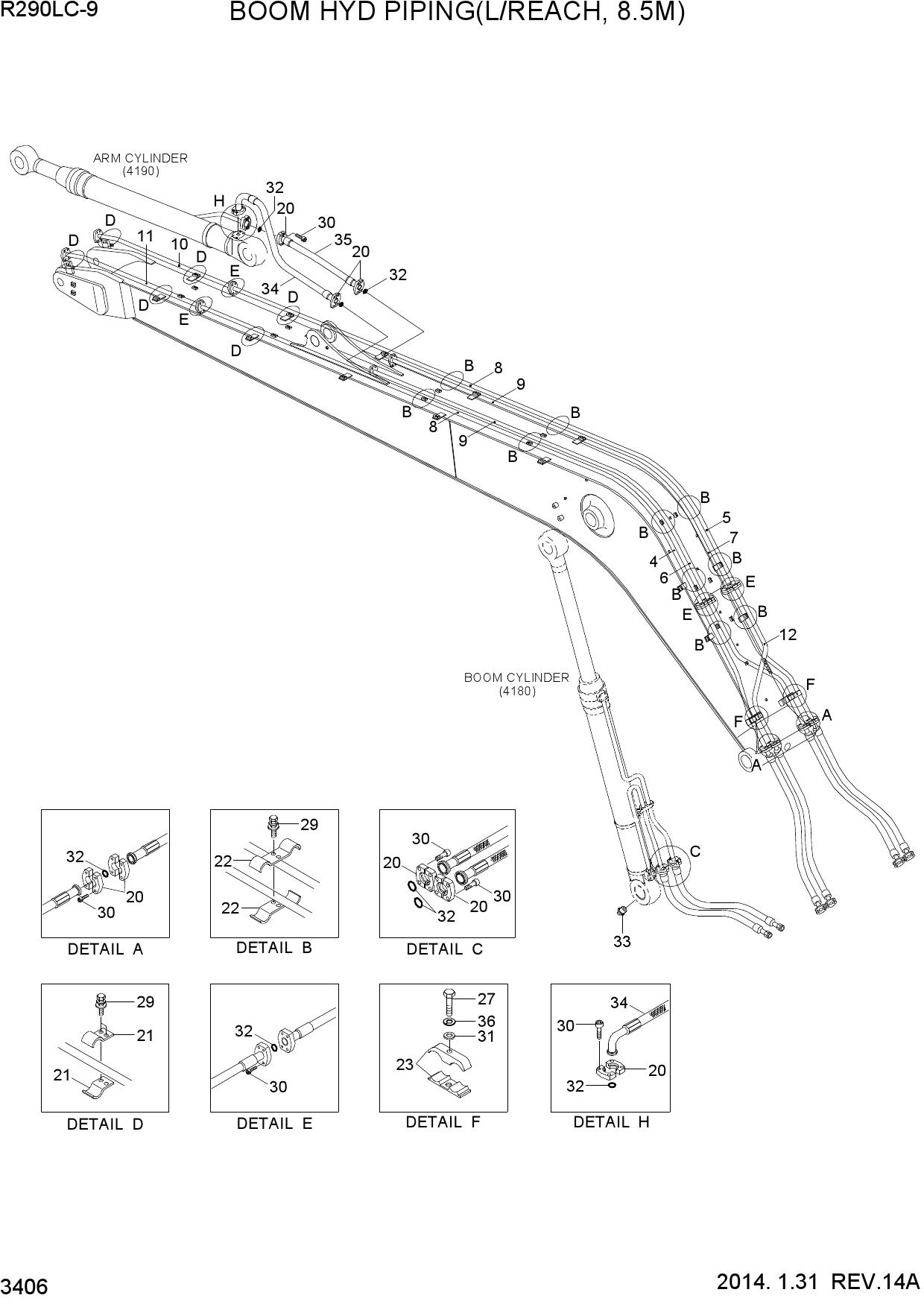

Запчасти для гусеничных экскаваторов Hyundai R290LC-9 BOOM HYD PIPING(L/REACH, 8.5M)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 4 | 31Q8-50510 | PIPE WA-BUCKET CYL,LC | |
| 5 | 31Q8-50520 | PIPE WA-BUCKET CYL,SC | |
| 6 | 31Q8-50530 | PIPE WA-ARM CYL,LC | |
| 7 | 31Q8-50540 | PIPE WA-ARM CYL,SC | |
| 8 | 31Q8-50550 | PIPE WA | |
| 9 | 31Q8-50560 | PIPE WA | |
| 10 | 31Q8-50570 | PIPE WA | |
| 11 | 31Q8-50580 | PIPE WA | |
| 12 | P840-042024 | HOSE ASSY-SYN THD | |
| 20 | P173-160104 | FLANGE-HYD,SPLIT | |
| 21 | 31E7-01711 | CLAMP ASSY | |
| 22 | 31E7-01750 | CLAMP ASSY | |
| 23 | 31Q6-50200 | CLAMP-PIPE | |
| 27 | S017-120606 | BOLT-HEX | |
| 27 | S017-120656 | BOLT-HEX | |
| 29 | S037-124026 | BOLT-W/WASHER | |
| 30 | S109-100306 | BOLT-SOCKET | |
| 31 | S441-12000B | WASHER-HARDENED | |
| 31 | S403-12200B | WASHER-PLAIN | |
| 32 | Y171-024004 | O-RING | |
| 33 | S651-810002 | NIPPLE-GREASE | |
| 34 | 31Q8-50240 | HOSE ASSY-FLG 0X90 | |
| 34 | 31Q6-55970 | HOSE ASSY-FLG(HI-GRADE) | |
| 35 | P680-168325 | HOSE ASSY-FLG 0X0 | |
| 35 | 31Q8-55920 | HOSE ASSY-FLG(HI-GRADE) | |
| 36 | S411-120006 | WASHER-SPRING |
