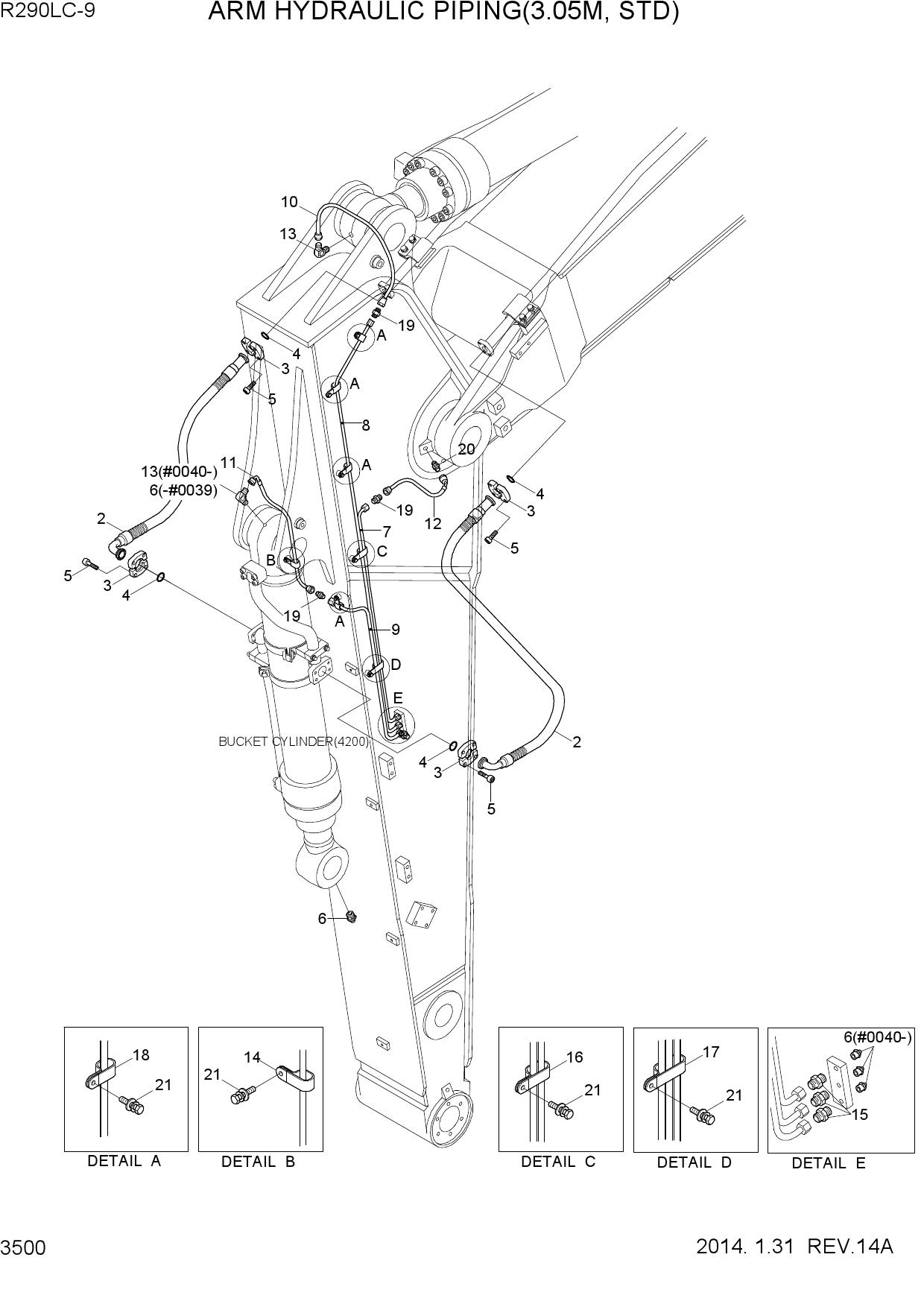

Запчасти для гусеничных экскаваторов Hyundai R290LC-9 ARM HYDRAULIC PIPING(3.05M, STD)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 2 | 31Q8-60131 | HOSE ASSY-FLG 0X90 | |
| 2 | 31Q8-65910 | HOSE ASSY-FLG(HI-GRADE) | |
| 3 | P173-160104 | FLANGE-HYD,SPLIT | |
| 4 | Y171-024004 | O-RING | |
| 5 | S109-100306 | BOLT-SOCKET | |
| 6 | S651-810002 | NIPPLE-GREASE | |
| 6 | S651-810002 | NIPPLE-GREASE | |
| 7 | 31Q8-60200 | PIPE ASSY | |
| 8 | 31Q8-60210 | PIPE ASSY | |
| 8 | 31Q8-60310 | PIPE ASSY | |
| 8 | 31Q8-60350 | PIPE ASSY | |
| 9 | 31Q8-60220 | PIPE ASSY | |
| 10 | P843-042019 | HOSE ASSY-SYN 0X0 | |
| 10 | P843-042011 | HOSE ASSY-SYN 0X0 | |
| 10 | P843-042012 | HOSE ASSY-SYN 0X0 | |
| 11 | P853-042013 | HOSE ASSY-SYN 0X45 | |
| 12 | P860-042009 | HOSE ASSY-SYN 0X90 | |
| 12 | P860-042011 | HOSE ASSY-SYN 0X90 | |
| 13 | 31NB-50280 | ELBOW-90 | |
| 14 | 31Q6-50370 | CLAMP-HOSE | |
| 15 | 31Q8-60150 | CONNECTOR-TUBE | |
| 16 | 31Q8-60160 | CLAMP-TUBE | |
| 17 | 31Q8-60170 | CLAMP-TUBE | |
| 18 | 31Q8-60230 | CLAMP-TUBE | |
| 18 | 31Q8-60230 | CLAMP-TUBE | |
| 19 | E131-0626 | CONNECTOR | |
| 20 | P010-430011 | CONNECTOR | |
| 21 | S035-082026 | BOLT-W/WASHER | |
| 21 | S035-082026 | BOLT-W/WASHER |
