- PUMP MOUNTING
- HYDRAULIC TANK
- UPPER HYDRAULIC PIPING(BASE)
- UPPER HYDRAULIC PIPING(ATTACH)
- UPPER HYDRAULIC PIPING(TRAVEL)
- PILOT HYD PIPING(CONTROL 1)
- PILOT HYD PIP(CNTL 1, W/PATTERN CHANGE)
- PILOT HYD PIPING(CONTROL 2)
- PILOT HYD PIP(CNTL 2, W/PATTERN CHANGE)
- PILOT HYD PIPING(CONTROL 3)
- PILOT HYD PIP(CNTL 3, W/PATTERN CHANGE)
- PILOT HYD PIP(CNTL, 2-PATTERN, #0064-)
- PILOT HYDRAULIC PIPING(BASE 1)
- PILOT HYDRAULIC PIPING(BASE 2)
- PILOT HYDRAULIC PIPING(BASE 3)
- TRAVEL HYDRAULIC PIPING(TYPE 1, -#0317)
- TRAVEL HYDRAULIC PIPING(TYPE 2, #0318-)
- TRAVEL HYDRAULIC PIPING(TYPE 3,4)
- BOOM HYD PIPING(6.25M, STD)
- BOOM HYD PIPING(L/REACH, 10.2M)
- BOOM HYD PIPING(L/REACH, 8.5M)
- BOOM GREASE LUB SYSTEM(6.25M, STD)
- BOOM GREASE LUB SYSTEM(L/REACH, 10.2M)
- BOOM GREASE LUB SYSTEM(L/REACH, 8.5M)
- BOOM SAFETY LOCK SYSTEM
- QUICK CLAMP HYD PIPING
- QUICK CLAMP HYD PIPING(OPTION)
- QUICK CLAMP(CLOSE TYPE 1, -#1715)
- QUICK CLAMP(CLOSE TYPE 1, OPT, -#1715)
- QUICK CLAMP(CLOSE TYPE 2, -#0692)
- QUICK CLAMP(CLOSE TYPE 2, #0693-#1715)
- QUICK CLAMP(CLOSE TYPE 2, OPT, -#1715)
- QUICK CLAMP(HOOK TYPE 1, -#1715)
- QUICK CLAMP(HOOK TYPE 1, OPT, -#1715)
- QUICK CLAMP(HOOK TYPE 2, -#0692)
- QUICK CLAMP(HOOK TYPE 2, #0693-#1715)
- QUICK CLAMP(HOOK TYPE 2, OPT, -#1715)
- QUICK CLAMP(CLOSE TYPE 2, #1962-)
- QUICK CLAMP(CLOSE TYPE 3, #1716-)
- QUICK CLAMP(CLOSE TYPE 2, OPT, #1962-)
- QUICK CLAMP(CLOSE TYPE 3, OPT, #1716-)
- QUICK CLAMP(HOOK TYPE 2, #1962-)
- QUICK CLAMP(HOOK TYPE 3, #1716-)
- QUICK CLAMP(HOOK TYPE 2, OPT, #1962-)
- QUICK CLAMP(HOOK TYPE 3, OPT, #1716-)
- ARM HYDRAULIC PIPING(3.05M, STD)
- ARM HYD PIPING(2.1M, S/SHORT, #0025-)
- ARM HYD PIPING(2.5M, SHORT, #0025-)
- ARM HYD PIPING(3.75M, LONG, #0025-)
- ARM SAFETY LOCK SYSTEM
- ARM HYD PIPING(L/REACH, 7.85M, #0043-)
- ARM HYD PIPING(2.85M, SHORT, #0693-)
- ARM HYD PIPING(LONG REACH, 4.6M)
- DOUBLE ACTING MAIN PIPING KIT 1(-#1349)
- DOUBLE ACTING MAIN PIPING KIT 1(#1350-)
- DOUBLE ACTING MAIN PIPING KIT 2(-#0310)
- DOUBLE ACTING MAIN PIPING KIT 2(#0311-)
- ATTACH PIPING KIT(S & D/ACTING)
- SINGLE PEDAL(DOUBLE ACTING)
- SINGLE ACTING MAIN PIPING KIT(-#1349)
- SINGLE ACTING MAIN PIPING KIT(#1350-)

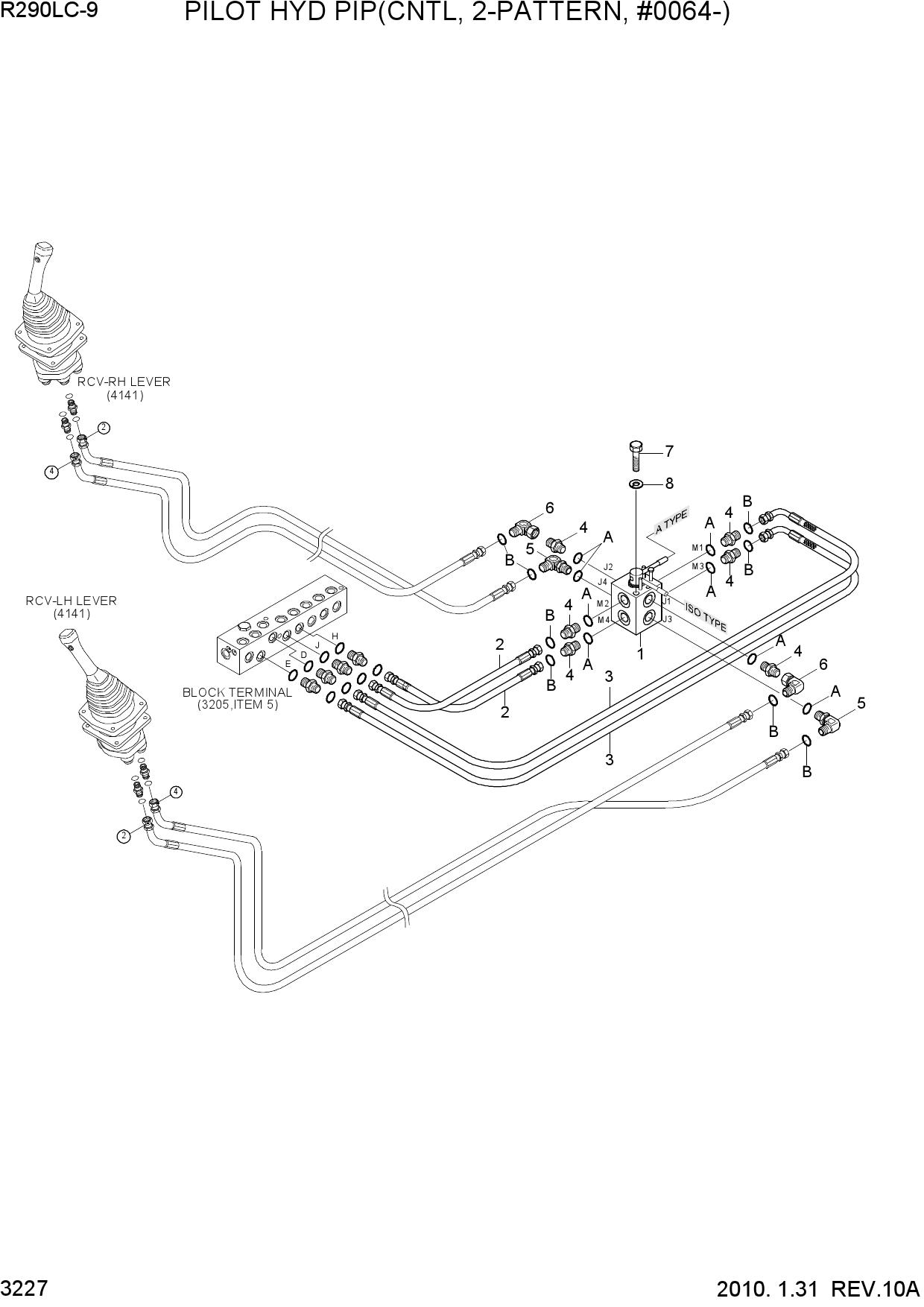

Запчасти для гусеничных экскаваторов Hyundai R290LC-9 PILOT HYD PIP(CNTL, 2-PATTERN, #0064-)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 31N6-22050 | SELECTOR VLV-MULTIMODE | |
| 2 | X400-062010 | HOSE ASSY-SYNF,ORFS | |
| 3 | X420-062019 | HOSE ASSY-ORFS 0X90 | |
| 4 | X500-110011 | CONNECTOR-ORFS | |
| 5 | X520-110011 | ELBOW-90,ORFS | |
| 6 | X850-525200 | ELBOW-90,SWIVEL,ORFS | |
| 7 | S015-080756 | BOLT-HEX | |
| 8 | S403-08200B | WASHER-PLAIN | |
| A | S631-011004 | O-RING | |
| B | S621-012001 | O-RING |
Для поиска необходимых позиций выберите нужный раздел каталога запасных
частей Hyundai Чтобы купить запчасти для R290LC-9 в компании ООО
«ЮКОЗ ТРЕИД» позвоните нам по телефонам указанным в разделе Контакты или
отправьте сообщение через форму запроса в ближайший к вам филиал.
