- PUMP MOUNTING
- HYDRAULIC TANK
- UPPER HYDRAULIC PIPING(BASE)
- UPPER HYDRAULIC PIPING(ATTACH)
- UPPER HYDRAULIC PIPING(TRAVEL)
- PILOT HYD PIPING(CONTROL 1)
- PILOT HYD PIP(CNTL 1, W/PATTERN CHANGE)
- PILOT HYD PIPING(CONTROL 2)
- PILOT HYD PIP(CNTL 2, W/PATTERN CHANGE)
- PILOT HYD PIPING(CONTROL 3)
- PILOT HYD PIP(CNTL 3, W/PATTERN CHANGE)
- PILOT HYD PIP(CNTL, 2-PATTERN, #0064-)
- PILOT HYDRAULIC PIPING(BASE 1)
- PILOT HYDRAULIC PIPING(BASE 2)
- PILOT HYDRAULIC PIPING(BASE 3)
- TRAVEL HYDRAULIC PIPING(TYPE 1, -#0317)
- TRAVEL HYDRAULIC PIPING(TYPE 2, #0318-)
- TRAVEL HYDRAULIC PIPING(TYPE 3,4)
- BOOM HYD PIPING(6.25M, STD)
- BOOM HYD PIPING(L/REACH, 10.2M)
- BOOM HYD PIPING(L/REACH, 8.5M)
- BOOM GREASE LUB SYSTEM(6.25M, STD)
- BOOM GREASE LUB SYSTEM(L/REACH, 10.2M)
- BOOM GREASE LUB SYSTEM(L/REACH, 8.5M)
- BOOM SAFETY LOCK SYSTEM
- QUICK CLAMP HYD PIPING
- QUICK CLAMP HYD PIPING(OPTION)
- QUICK CLAMP(CLOSE TYPE 1, -#1715)
- QUICK CLAMP(CLOSE TYPE 1, OPT, -#1715)
- QUICK CLAMP(CLOSE TYPE 2, -#0692)
- QUICK CLAMP(CLOSE TYPE 2, #0693-#1715)
- QUICK CLAMP(CLOSE TYPE 2, OPT, -#1715)
- QUICK CLAMP(HOOK TYPE 1, -#1715)
- QUICK CLAMP(HOOK TYPE 1, OPT, -#1715)
- QUICK CLAMP(HOOK TYPE 2, -#0692)
- QUICK CLAMP(HOOK TYPE 2, #0693-#1715)
- QUICK CLAMP(HOOK TYPE 2, OPT, -#1715)
- QUICK CLAMP(CLOSE TYPE 2, #1962-)
- QUICK CLAMP(CLOSE TYPE 3, #1716-)
- QUICK CLAMP(CLOSE TYPE 2, OPT, #1962-)
- QUICK CLAMP(CLOSE TYPE 3, OPT, #1716-)
- QUICK CLAMP(HOOK TYPE 2, #1962-)
- QUICK CLAMP(HOOK TYPE 3, #1716-)
- QUICK CLAMP(HOOK TYPE 2, OPT, #1962-)
- QUICK CLAMP(HOOK TYPE 3, OPT, #1716-)
- ARM HYDRAULIC PIPING(3.05M, STD)
- ARM HYD PIPING(2.1M, S/SHORT, #0025-)
- ARM HYD PIPING(2.5M, SHORT, #0025-)
- ARM HYD PIPING(3.75M, LONG, #0025-)
- ARM SAFETY LOCK SYSTEM
- ARM HYD PIPING(L/REACH, 7.85M, #0043-)
- ARM HYD PIPING(2.85M, SHORT, #0693-)
- ARM HYD PIPING(LONG REACH, 4.6M)
- DOUBLE ACTING MAIN PIPING KIT 1(-#1349)
- DOUBLE ACTING MAIN PIPING KIT 1(#1350-)
- DOUBLE ACTING MAIN PIPING KIT 2(-#0310)
- DOUBLE ACTING MAIN PIPING KIT 2(#0311-)
- ATTACH PIPING KIT(S & D/ACTING)
- SINGLE PEDAL(DOUBLE ACTING)
- SINGLE ACTING MAIN PIPING KIT(-#1349)
- SINGLE ACTING MAIN PIPING KIT(#1350-)

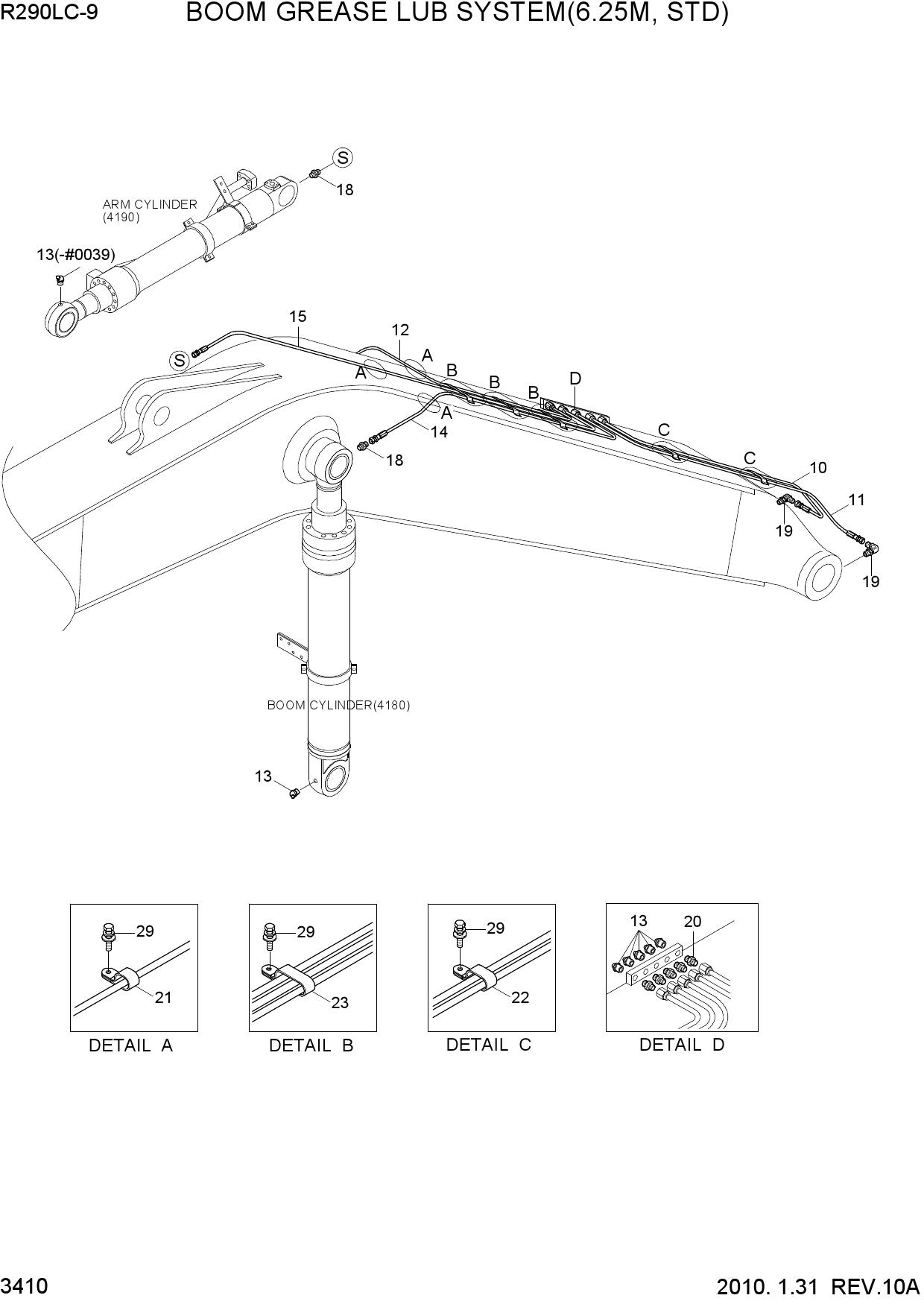

Запчасти для гусеничных экскаваторов Hyundai R290LC-9 BOOM GREASE LUB SYSTEM(6.25M, STD)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 10 | P840-042024 | HOSE ASSY-SYN THD | |
| 11 | P840-042025 | HOSE ASSY-SYN THD | |
| 12 | P840-042051 | HOSE ASSY-SYN THD | |
| 13 | S651-810002 | NIPPLE-GREASE | |
| 13 | S651-810002 | NIPPLE-GREASE | |
| 14 | P840-042053 | HOSE ASSY-SYN THD | |
| 15 | P840-042062 | HOSE ASSY-SYN THD | |
| 18 | P010-430011 | CONNECTOR | |
| 19 | 31NB-50280 | ELBOW-90 | |
| 20 | 31W5-70060 | CONNECTOR | |
| 20 | 31QA-50200 | CONNECTOR | |
| 21 | 31Q6-50370 | CLAMP-HOSE | |
| 21 | 31Q6-50370 | CLAMP-HOSE | |
| 22 | 31Q6-50380 | CLAMP-HOSE | |
| 23 | 31Q6-50390 | CLAMP-HOSE | |
| 29 | S035-082026 | BOLT-W/WASHER | |
| 29 | S035-082026 | BOLT-W/WASHER |
Для поиска необходимых позиций выберите нужный раздел каталога запасных
частей Hyundai Чтобы купить запчасти для R290LC-9 в компании ООО
«ЮКОЗ ТРЕИД» позвоните нам по телефонам указанным в разделе Контакты или
отправьте сообщение через форму запроса в ближайший к вам филиал.
