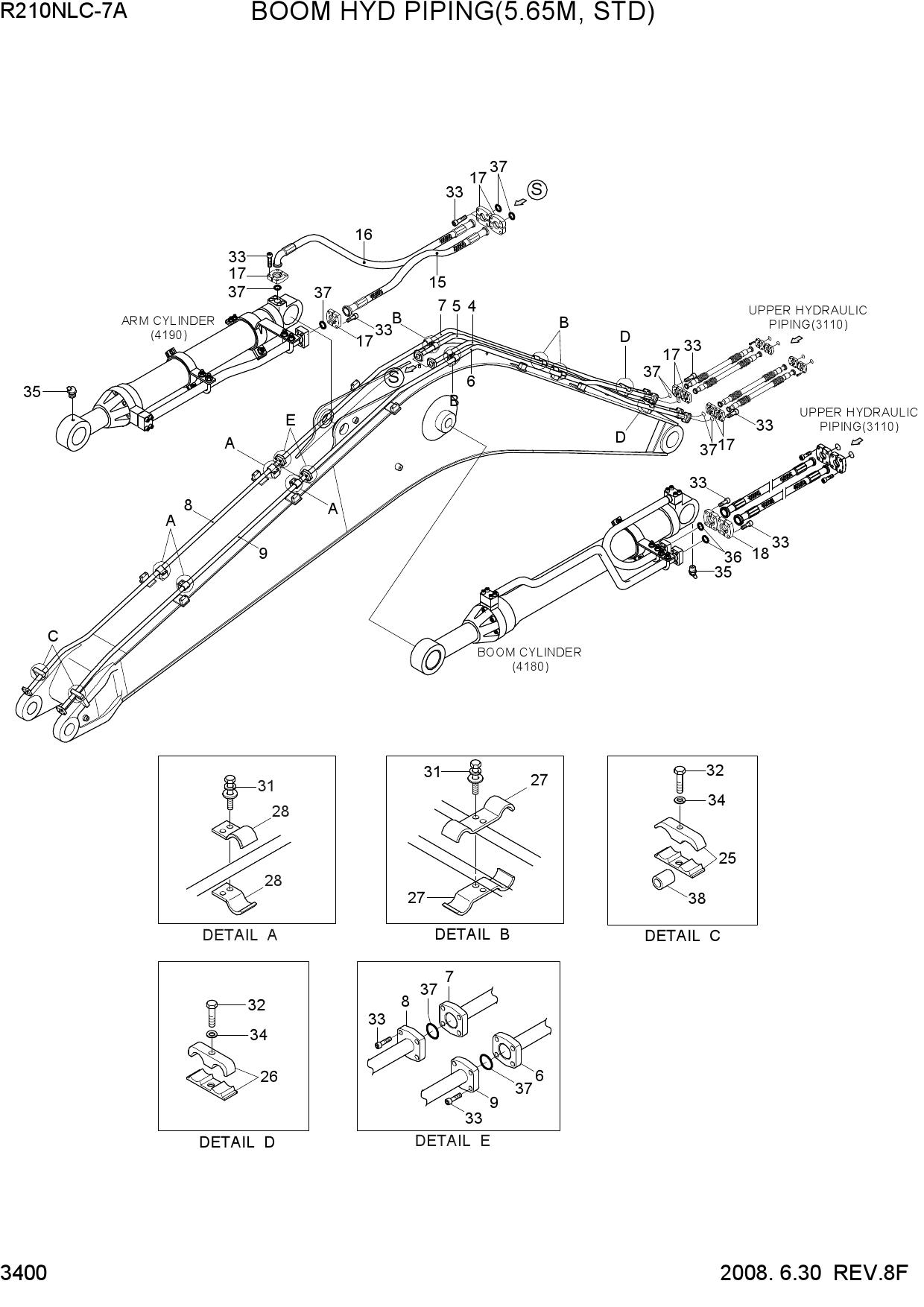

Запчасти для гусеничных экскаваторов Hyundai R210NCL-7A BOOM HYD PIPING(5.65M, STD)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 4 | 31N6-53410 | PIPE ASSY | |
| 5 | 31N6-53420 | PIPE ASSY | |
| 6 | 31N6-53430 | PIPE ASSY | |
| 7 | 31N6-53440 | PIPE ASSY | |
| 8 | 31N6-53450 | PIPE ASSY | |
| 9 | 31N6-53460 | PIPE ASSY | |
| 15 | P680-167322FL | HOSE ASSY-FLG 0X0 | |
| 16 | P700-167321FL | HOSE ASSY-FLG 0X90 | |
| 16 | 31N6-57110 | HOSE ASSY-FLG 0X90 | |
| 17 | P173-160104 | FLANGE-HYD,SPLIT | |
| 18 | P173-120102 | FLANGE-HYD,SPLIT | |
| 25 | 31N6-50310 | CLAMP ASSY | |
| 26 | 31N8-51170 | CLAMP ASSY | |
| 27 | 31E7-01750 | CLAMP ASSY | |
| 28 | 31E7-01711 | CLAMP ASSY | |
| 31 | S037-123526 | BOLT-W/WASHER | |
| 32 | S017-16080D | BOLT-HEX | |
| 33 | S109-100306 | BOLT-SOCKET | |
| 34 | S441-160006 | WASHER-HARDENED | |
| 35 | S651-810002 | NIPPLE-GREASE | |
| 36 | Y171-019004 | O-RING | |
| 37 | Y171-024004 | O-RING | |
| 38 | 31N5-50230 | SPACER-PIPE |
