- PUMP MOUNTING
- HYDRAULIC TANK
- UPPER HYDRAULIC PIPING 1(BASE)
- UPPER HYDRAULIC PIPING 2(ATTACH)
- UPPER HYDRAULIC PIPING 3(TRAVEL)
- UPPER HYD PIPING 4(ADJUST BOOM)
- UPPER HYD PIPING 5(ADJUST BOOM)
- CONTROL VALVE(ADJUST BOOM)
- PILOT HYDRAULIC PIPING 1(CONTROL)
- PILOT HYDRAULIC PIPING 2(BASE)
- PILOT HYDRAULIC PIPING 3(BASE)
- PILOT HYDRAULIC PIPING 4(BASE)
- PILOT HYDRAULIC PIPING 5(BASE)
- PILOT HYDRAULIC PIPING 6(BASE)
- TRAVEL HYDRAULIC PIPING
- BOOM HYD PIPING(5.65M, STD)
- BOOM GREASE LUB SYSTEM(5.65M, STD)
- BOOM HYD PIPING(ADJUST BOOM)
- BOOM GREASE LUB SYSTEM(ADJUST BOOM)
- BOOM SAFETY LOCK SYSTEM
- QUICK CLAMP PIPING
- QUICK CLAMP(HOOK TYPE)
- QUICK CLAMP(CLOSE TYPE)
- QUICK CLAMP CYLINDER(DAEMO)
- QUICK CLAMP(HOOK TYPE)
- QUICK CLAMP(CLOSE TYPE)
- QUICK CLAMP CYLINDER(HANWOO)
- ARM HYDRAULIC PIPING
- ARM SAFETY LOCK SYSTEM
- ARM HYD PIPING(3.9M, LONG)
- ATTACH PIPING KIT(S & D/ACTING)
- ATTACH PIPING KIT(ADJUST BOOM)
- DOUBLE ACTING MAIN PIPING KIT
- D/ ACTING MAIN PIPING KIT(ADJUST BOOM)
- SINGLE PEDAL(DOUBLE ACTING)
- SINGLE ACTING MAIN PIPING KIT

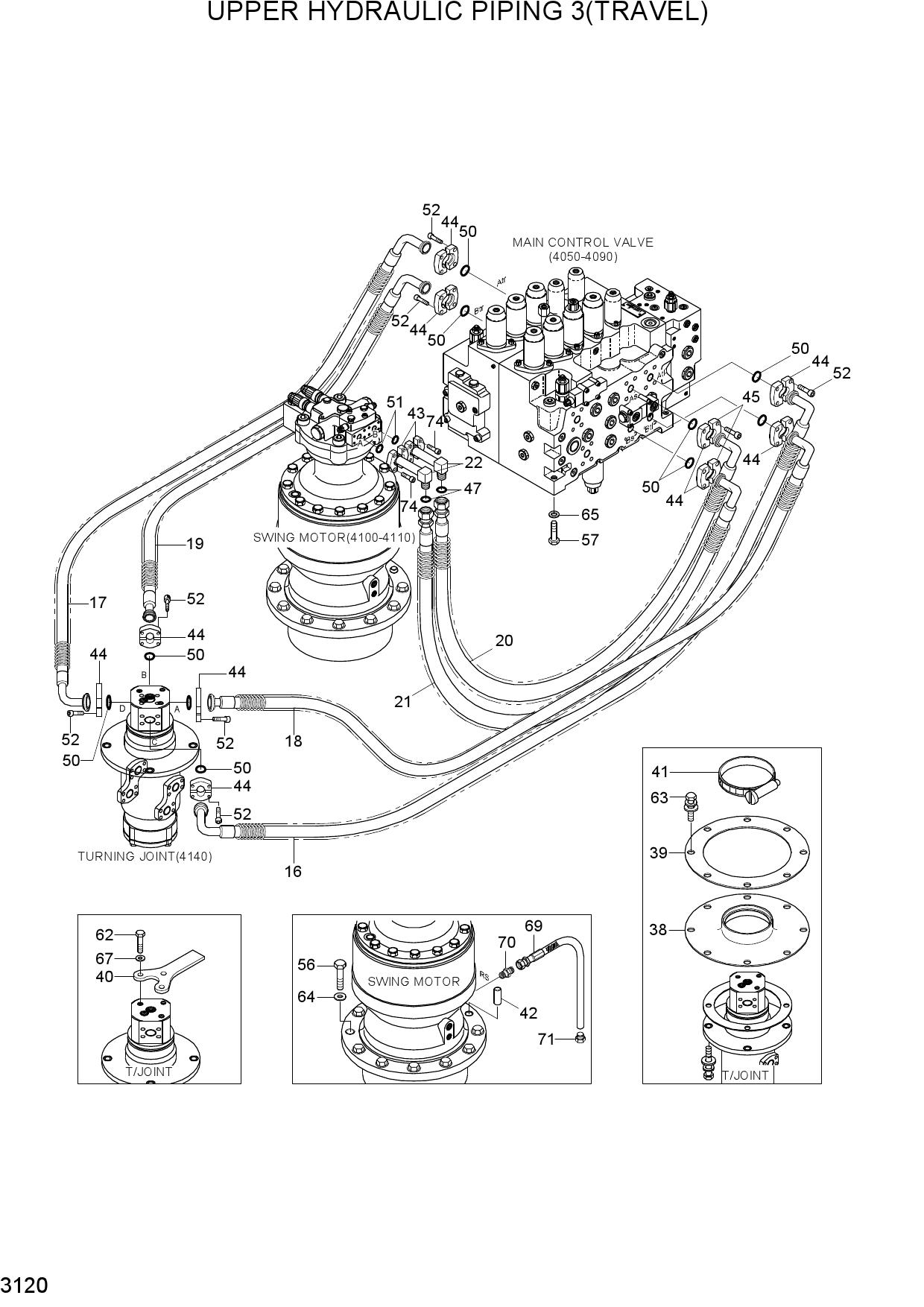

Запчасти для гусеничных экскаваторов Hyundai R210NCL-7A UPPER HYDRAULIC PIPING 3(TRAVEL)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 16 | 31N6-13210 | HOSE ASSY-90X90 | |
| 17 | 31N6-13220 | HOSE ASSY-90X90 | |
| 18 | 31N6-13230 | HOSE ASSY-90X90 | |
| 19 | 31N6-13240 | HOSE ASSY-90X90 | |
| 20 | 31N6-14260 | HOSE ASSY | |
| 21 | 31N6-14270 | HOSE ASSY | |
| 22 | 31N8-11322 | ELBOW-90,ORFS | |
| 38 | 31N1-40941 | RUBBER-T/JOINT | |
| 39 | 31N1-40951 | COVER-T/JOINT | |
| 40 | 31N1-40961 | BRACKET-T/JOINT | |
| 41 | S520-130000 | CLAMP-HOSE | |
| 42 | 31E4-3039 | PIN-DOWEL | |
| 43 | P173-120102 | FLANGE-HYD,SPLIT | |
| 44 | P173-160104 | FLANGE-HYD,SPLIT | |
| 47 | S621-018001 | O-RING | |
| 50 | Y171-024004 | O-RING | |
| 51 | Y171-019004 | O-RING | |
| 52 | S109-100306 | BOLT-SOCKET | |
| 56 | S017-20075D | BOLT-HEX | |
| 57 | S017-120406 | BOLT-HEX | |
| 62 | S017-140306 | BOLT-HEX | |
| 63 | S037-102026 | BOLT-W/WASHER | |
| 64 | S441-200006 | WASHER-HARDENED | |
| 65 | S403-12100B | WASHER-PLAIN | |
| 67 | S403-141006 | WASHER-PLAIN | |
| 69 | P400-062010 | HOSE ASSY-COMPACT | |
| 70 | P010-430015 | CONNECTOR | |
| 71 | 31EM-22090 | PLUG | |
| 74 | S109-100706 | BOLT-SOCKET |
