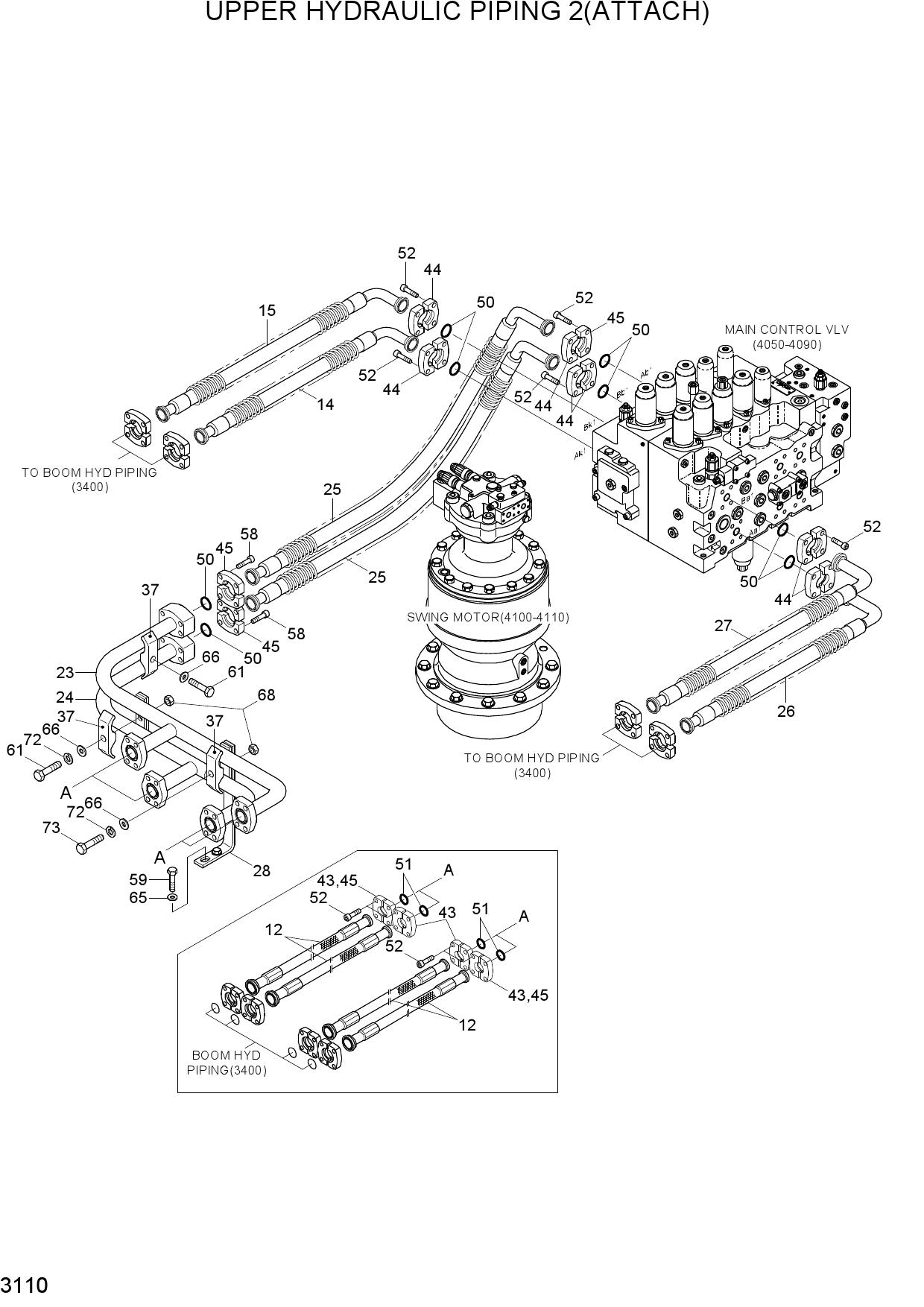

Запчасти для гусеничных экскаваторов Hyundai R210NCL-7A UPPER HYDRAULIC PIPING 2(ATTACH)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 12 | P683-127316 | HOSE ASSY-FLG 0X0 | |
| 14 | 31N6-14350 | HOSE ASSY | |
| 14 | 31N6-13290 | HOSE ASSY-0X90 | |
| 15 | 31N6-14340 | HOSE ASSY | |
| 15 | 31N6-13300 | HOSE ASSY-0X90 | |
| 23 | 31N6-13310 | PIPE ASSY | |
| 24 | 31N6-13320 | PIPE ASSY | |
| 25 | 31N6-13270 | HOSE ASSY-0X90 | |
| 26 | 31N6-14321 | HOSE ASSY | |
| 26 | 31N6-13051 | HOSE ASSY-0X90 | |
| 27 | 31N6-14330 | HOSE ASSY | |
| 27 | 31N6-13061 | HOSE ASSY-0X90 | |
| 28 | 31N6-13070 | BRACKET | |
| 37 | 31EM-12170 | CLAMP-PIPE | |
| 43 | P173-120102 | FLANGE-HYD,SPLIT | |
| 44 | P173-160104 | FLANGE-HYD,SPLIT | |
| 45 | 31E9-01320 | FLANGE-SPLIT | |
| 50 | Y171-024004 | O-RING | |
| 51 | Y171-019004 | O-RING | |
| 52 | S109-100306 | BOLT-SOCKET | |
| 58 | S109-100456 | BOLT-SOCKET | |
| 59 | S017-120256 | BOLT-HEX | |
| 61 | S017-100706 | BOLT-HEX | |
| 65 | S403-12100B | WASHER-PLAIN | |
| 66 | S403-10100B | WASHER-PLAIN | |
| 68 | S205-101006 | NUT-HEX | |
| 72 | S411-100006 | WASHER-SPRING | |
| 73 | S017-100856 | BOLT-HEX |
