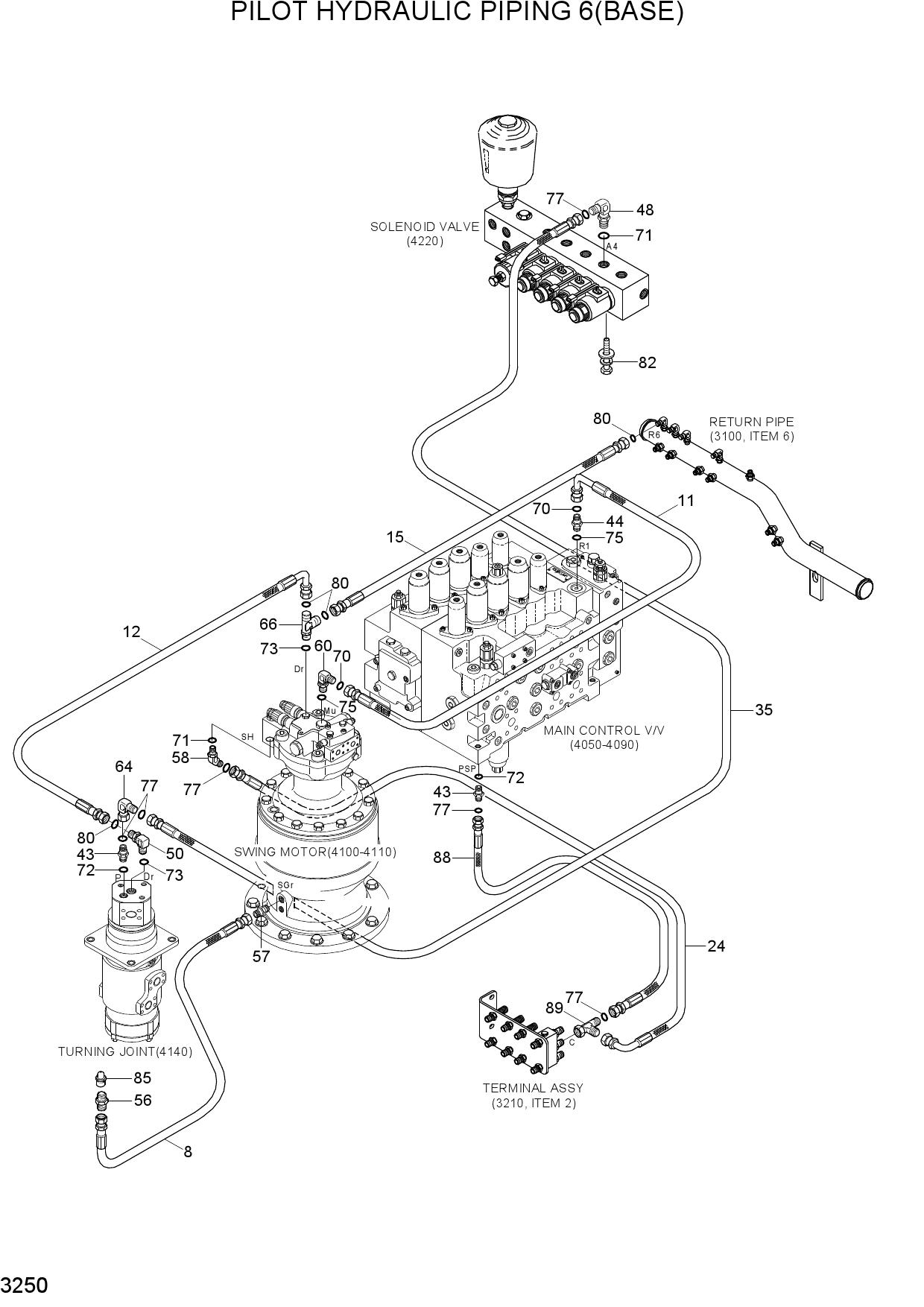

Запчасти для гусеничных экскаваторов Hyundai R210NCL-7A PILOT HYDRAULIC PIPING 6(BASE)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 8 | P840-042021 | HOSE ASSY-SYN THD | |
| 11 | P930-162015 | HOSE ASSY-ORFS 0X90 | |
| 12 | P930-082026 | HOSE ASSY-ORFS 0X90 | |
| 15 | P910-082015 | HOSE ASSY-ORFS 0X0 | |
| 24 | X420-042036 | HOSE ASSY-SYNF,ORFS 0X90 | |
| 35 | X400-042056 | HOSE ASSY-SYNF,ORFS | |
| 43 | X500-110013 | CONNECTOR-ORFS | |
| 44 | X500-110005 | CONNECTOR-ORFS | |
| 48 | X520-110001 | ELBOW-90,ORFS | |
| 50 | X520-110003 | ELBOW-90,ORFS | |
| 56 | 31W5-70060 | CONNECTOR | |
| 57 | P010-430002 | CONNECTOR | |
| 58 | X530-110001 | ELBOW-45,ORFS | |
| 60 | X520-110005 | ELBOW-90,ORFS | |
| 64 | X850-515100 | ELBOW-90,SWIVEL,ORFS | |
| 66 | X820-085353 | TEE-R/TYPE,ORFS | |
| 70 | S621-021001 | O-RING | |
| 71 | S631-011004 | O-RING | |
| 72 | S631-014004 | O-RING | |
| 73 | S631-018004 | O-RING | |
| 75 | S631-029004 | O-RING | |
| 77 | S621-011001 | O-RING | |
| 80 | S621-014001 | O-RING | |
| 82 | S035-082526 | BOLT-W/WASHER | |
| 85 | S653-810002 | NIPPLE-GREASE | |
| 88 | X400-042020 | HOSE ASSY-SYNFLEX,ORFS | |
| 89 | X840-515151 | TEE-R/TYPE,ORFS |
