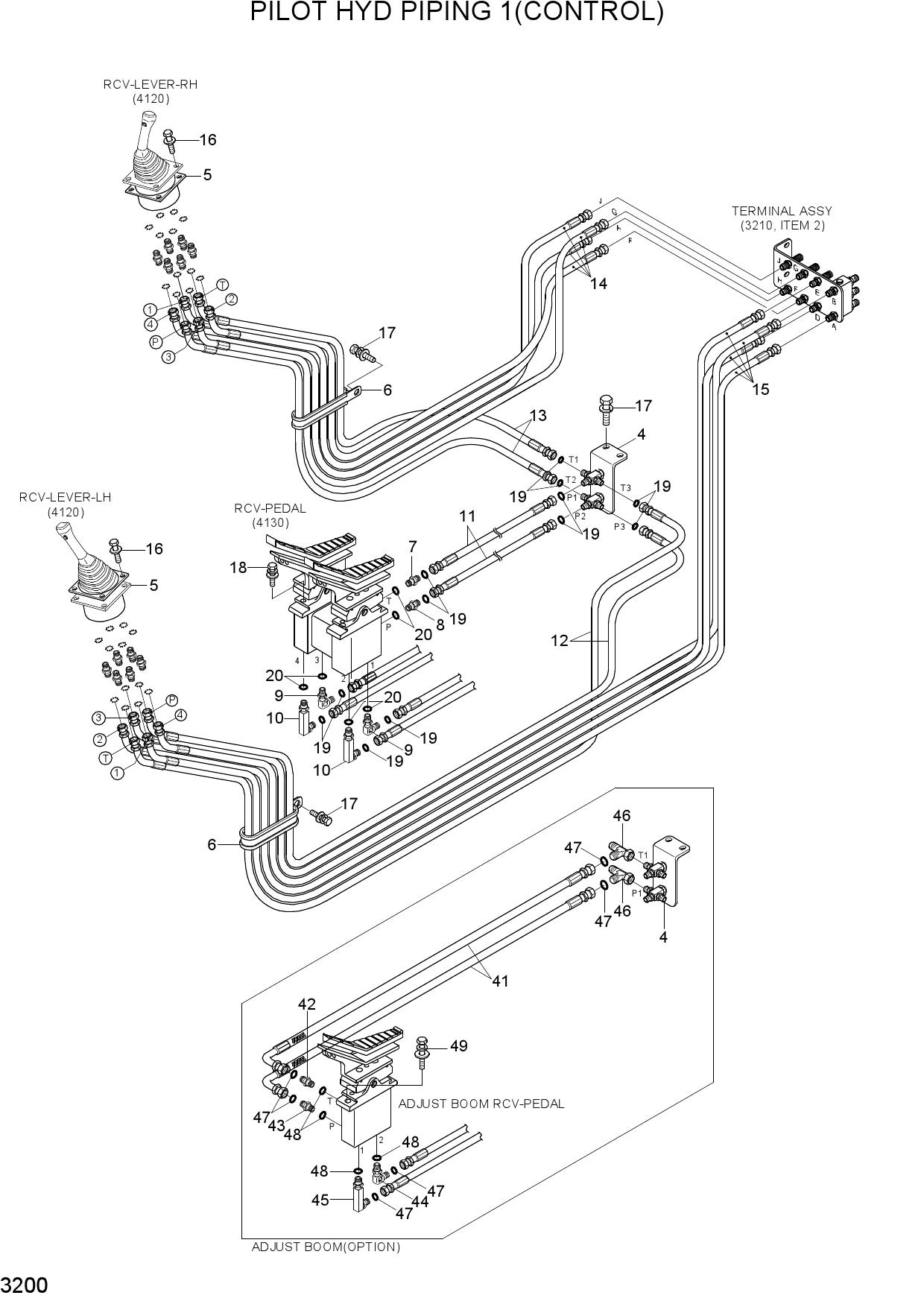

Запчасти для гусеничных экскаваторов Hyundai R210NCL-7A PILOT HYDRAULIC PIPING 1(CONTROL)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 4 | 31N6-25100 | CROSS ASSY | |
| 5 | 31M6-51061 | SHIM(3.2T) | |
| 6 | 31E7-0312 | CLAMP-HOSE | |
| 7 | X500-110001 | CONNECTOR-ORFS | |
| 8 | 31N6-25060 | FILTER-LAST GUARD | |
| 9 | X520-110001 | ELBOW-90,ORFS | |
| 10 | 31N6-25110 | ELBOW-90,ORFS,LONG | |
| 11 | X400-042019 | HOSE ASSY-SYNFLEX,ORFS | |
| 12 | X410-042026 | HOSE ASSY-SYNFLEX,ORFS | |
| 13 | X410-042028 | HOSE ASSY-SYNFLEX,ORFS | |
| 14 | X410-042036 | HOSE ASSY-SYNFLEX,ORFS | |
| 15 | X410-042038 | HOSE ASSY-ORFS 0X45 | |
| 16 | S035-063046 | BOLT-W/WASHER | |
| 17 | S037-102526 | BOLT-W/WASHER | |
| 18 | S037-103026 | BOLT-W/WASHER | |
| 19 | S621-011001 | O-RING | |
| 20 | S631-011004 | O-RING | |
| 41 | X420-042020 | HOSE ASSY-SYNFLEX,ORFS | |
| 42 | X500-110001 | CONNECTOR-ORFS | |
| 43 | 31N6-25060 | FILTER-LAST GUARD | |
| 44 | X520-110001 | ELBOW-90,ORFS | |
| 45 | 31N6-25110 | ELBOW-90,ORFS,LONG | |
| 46 | X840-515151 | TEE-R/TYPE,ORFS | |
| 47 | S621-011001 | O-RING | |
| 48 | S631-011004 | O-RING | |
| 49 | S037-103026 | BOLT-W/WASHER |
