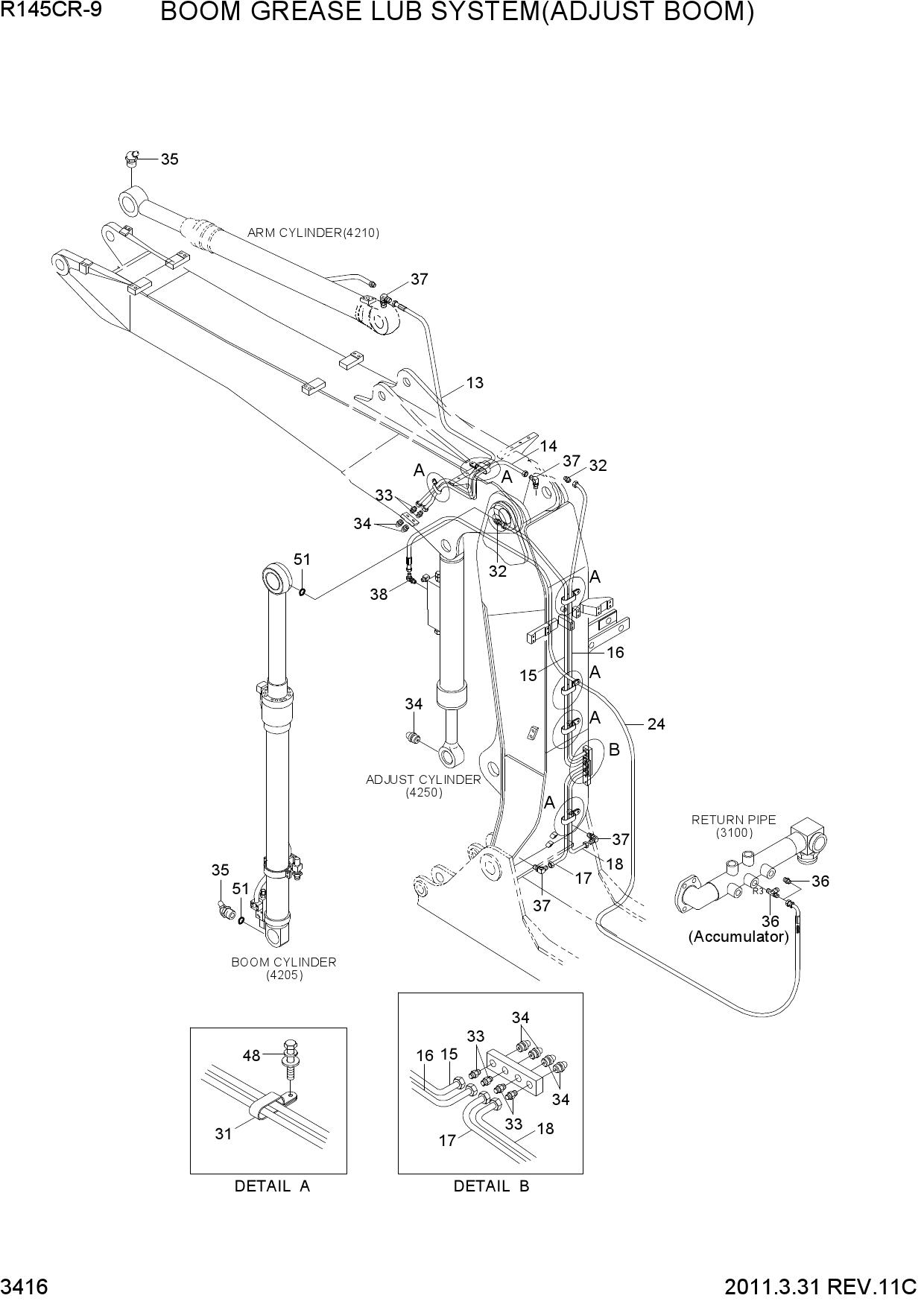

Запчасти для гусеничных экскаваторов Hyundai R145CR-9 BOOM GREASE LUB SYSTEM(ADJUST BOOM)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 13 | P840-042029 | HOSE ASSY-SYN THD | |
| 13 | P840-042032 | HOSE ASSY-SYN THD | |
| 14 | P840-042025 | HOSE ASSY-SYN THD | |
| 14 | P840-042027 | HOSE ASSY-SYN THD | |
| 15 | P840-042036 | HOSE ASSY-SYN THD | |
| 16 | P840-042035 | HOSE ASSY-SYN THD | |
| 17 | P840-042016 | HOSE ASSY-SYN THD | |
| 18 | P840-042015 | HOSE ASSY-SYN THD | |
| 24 | P933-042127 | HOSE ASSY-ORFS 0X0 | |
| 31 | 31Q6-50380 | CLAMP-HOSE | |
| 31 | 31Q6-50380 | CLAMP-HOSE | |
| 32 | P010-430011 | CONNECTOR | |
| 33 | 31W5-70060 | CONNECTOR | |
| 34 | S651-810002 | NIPPLE-GREASE | |
| 35 | S653-810002 | NIPPLE-GREASE | |
| 36 | X500-110013 | CONNECTOR-ORFS | |
| 36 | X820-065251 | TEE-R/TYPE,ORFS | |
| 37 | 31NB-50280 | ELBOW-90 | |
| 38 | 31N6-90550 | ELBOW-90,ORFS | |
| 48 | S035-082026 | BOLT-W/WASHER | |
| 48 | S035-082026 | BOLT-W/WASHER | |
| 51 | S621-014001 | O-RING |
