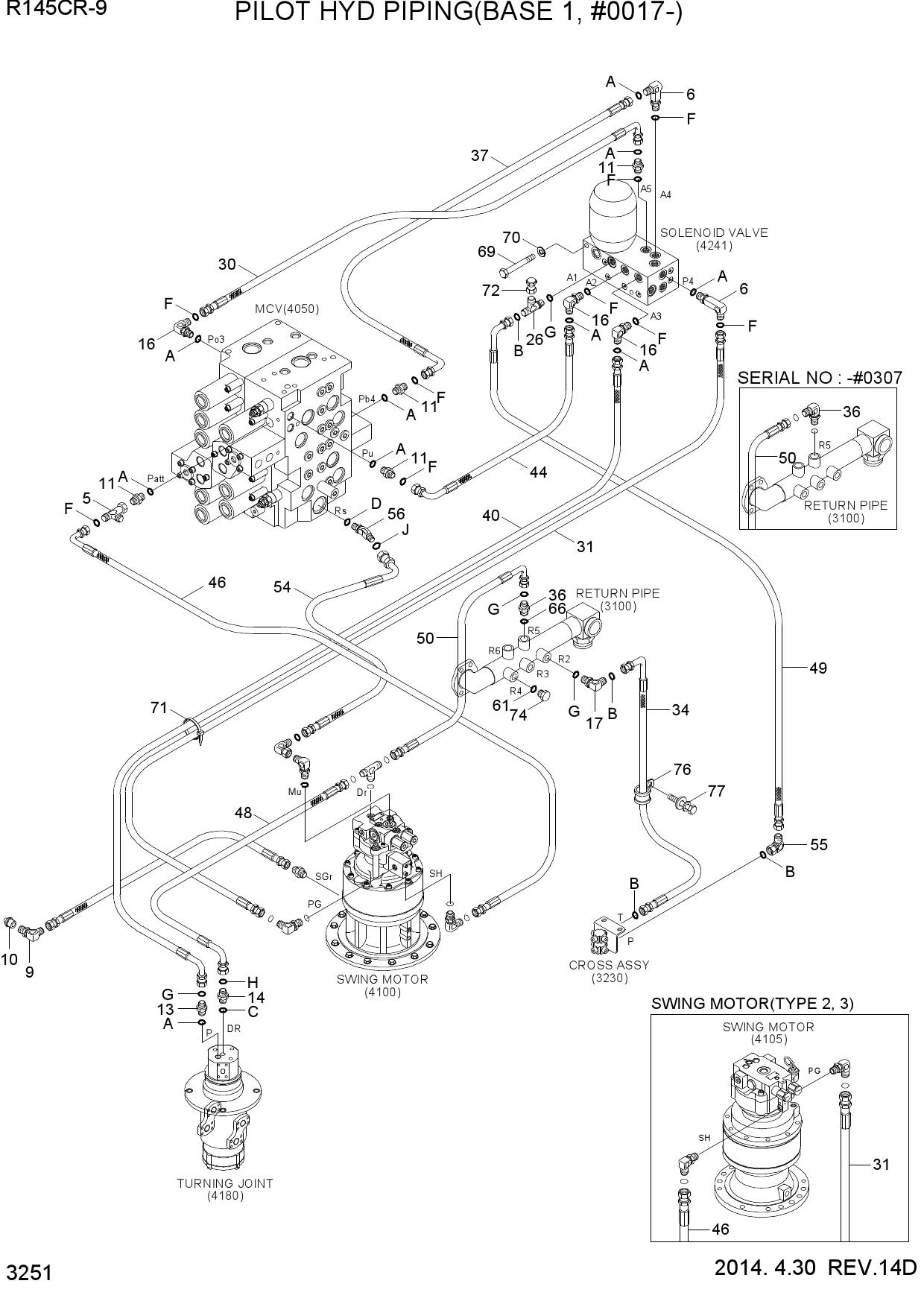

Запчасти для гусеничных экскаваторов Hyundai R145CR-9 PILOT HYD PIPING(BASE 1, #0017-)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 5 | 31N6-66080 | TEE-BRENCH TEST | |
| 6 | 31N6-25110 | ELBOW-90,ORFS,LONG | |
| 9 | 61L1-3909 | ELBOW-90 | |
| 10 | S651-810002 | NIPPLE-GREASE | |
| 11 | X500-110001 | CONNECTOR-ORFS | |
| 13 | X500-110013 | CONNECTOR-ORFS | |
| 14 | X511-108526 | CONNECTOR-LONG,ORFS | |
| 16 | X520-110001 | ELBOW-90,ORFS | |
| 17 | X520-110002 | ELBOW-90,ORFS | |
| 19 | X520-110004 | ELBOW-90,ORFS | |
| 26 | X820-065251 | TEE-R/TYPE,ORFS | |
| 30 | P930-042014 | HOSE ASSY-ORFS 0X90 | |
| 31 | P910-042028 | HOSE ASSY-ORFS 0X0 | |
| 34 | P930-062048 | HOSE ASSY-ORFS 0X90 | |
| 36 | X520-110013 | ELBOW-90,ORFS | |
| 36 | X500-110012 | CONNECTOR-ORFS | |
| 37 | P930-042018 | HOSE ASSY-ORFS 0X90 | |
| 40 | P930-042026 | HOSE ASSY-ORFS 0X90 | |
| 44 | P930-042024 | HOSE ASSY-ORFS 0X90 | |
| 46 | P930-042044 | HOSE ASSY-ORFS 0X90 | |
| 48 | P930-062013 | HOSE ASSY-ORFS 0X90 | |
| 49 | P930-062039 | HOSE ASSY-ORFS 0X90 | |
| 50 | P930-082008 | HOSE ASSY-ORFS 0X90 | |
| 50 | P930-082009 | HOSE ASSY-ORFS 0X90 | |
| 54 | P933-122028 | HOSE ASSY-ORFS 0X90 | |
| 55 | X850-525200 | ELBOW-90,SWIVEL,ORFS | |
| 56 | 31Q4-41050 | ELBOW-15,LONG | |
| 61 | S631-011004 | O-RING | |
| 66 | S621-012001 | O-RING | |
| 69 | S017-101156 | BOLT-HEX | |
| 70 | S411-100006 | WASHER-SPRING | |
| 71 | S551-050203 | CLAMP-BAND | |
| 72 | X710-100102 | CAP-ORFS | |
| 74 | P220-110103 | PLUG-HEX | |
| 76 | 31L7-10240 | CLAMP-TUBE INS | |
| 77 | S037-102026 | BOLT-W/WASHER | |
| A | S621-011001 | O-RING | |
| B | S621-012001 | O-RING | |
| C | S621-014001 | O-RING | |
| D | S621-018001 | O-RING | |
| F | S631-011004 | O-RING | |
| G | S631-014004 | O-RING | |
| H | S631-018004 | O-RING | |
| J | S631-024004 | O-RING |
