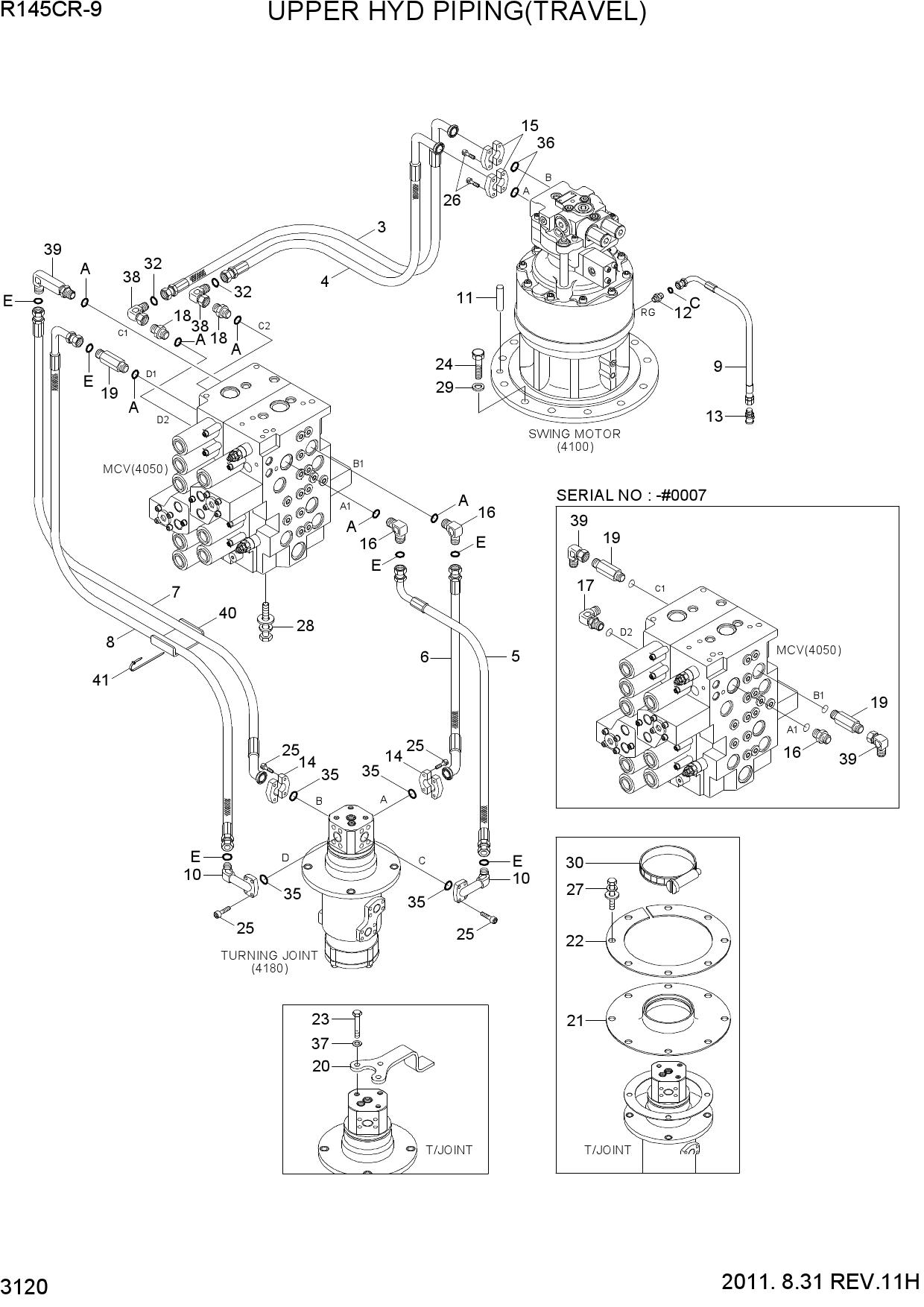

Запчасти для гусеничных экскаваторов Hyundai R145CR-9 UPPER HYD PIPING(TRAVEL)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 3 | P983-085331 | HOSE ASSY-ORFS 0X90 | |
| 3 | P983-085327 | HOSE ASSY-ORFS 0X90 | |
| 4 | P983-085326 | HOSE ASSY-ORFS 0X90 | |
| 4 | P983-085325 | HOSE ASSY-ORFS 0X90 | |
| 5 | P933-128030 | HOSE ASSY-ORFS 0X90 | |
| 5 | P933-128028 | HOSE ASSY-ORFS 0X90 | |
| 6 | 31Q4-14220 | HOSE ASSY | |
| 7 | 31Q4-14230 | HOSE ASSY | |
| 8 | P933-128025 | HOSE ASSY-ORFS 0X90 | |
| 8 | P933-128024 | HOSE ASSY-ORFS 0X90 | |
| 9 | 31Q4-14212 | HOSE ASSY | |
| 10 | 31N4-12071 | PIPE ASSY | |
| 10 | 31Q4-12071 | PIPE WA | |
| 11 | 31E3-3053 | PIN-DOWEL | |
| 12 | 31N7-12400 | CONNECTOR-ORFS | |
| 13 | 31Q4-11200 | VALVE-DRAIN | |
| 14 | P173-120102 | FLANGE-HYD,SPLIT | |
| 15 | P173-080101 | FLANGE-SPLIT | |
| 16 | X500-110004 | CONNECTOR-ORFS | |
| 16 | X520-110004 | ELBOW-90,ORFS | |
| 17 | X520-110016 | ELBOW-90,ORFS | |
| 18 | X500-110017 | CONNECTOR-ORFS | |
| 18 | X500-110017 | CONNECTOR-ORFS | |
| 19 | X511-112546 | CONNECTOR-LONG,ORFS | |
| 19 | X511-112546 | CONNECTOR-LONG,ORFS | |
| 20 | 31Q4-11160 | BRACKET-T/JOINT | |
| 21 | 31N1-40941 | RUBBER-T/JOINT | |
| 22 | 31N1-40951 | COVER-T/JOINT | |
| 23 | S017-140306 | BOLT-HEX | |
| 24 | S017-16055D | BOLT-HEX | |
| 25 | S109-100306 | BOLT-SOCKET | |
| 26 | S109-080256 | BOLT-SOCKET | |
| 27 | S037-102026 | BOLT-W/WASHER | |
| 28 | S037-123526 | BOLT-W/WASHER | |
| 29 | S441-160006 | WASHER-HARDENED | |
| 30 | S520-130000 | CLAMP-HOSE | |
| 32 | S621-014001 | O-RING | |
| 35 | Y171-019001 | O-RING | |
| 36 | Y171-015004 | O-RING | |
| 37 | S411-140006 | WASHER-SPRING | |
| 38 | X850-535300 | ELBOW-90,SWIVEL,ORFS | |
| 38 | X850-535300 | ELBOW-90,SWIVEL,ORFS | |
| 39 | X850-545400 | ELBOW-90,SWIVEL,ORFS | |
| 39 | 31N5-10250 | ELBOW-90,LONG,ORFS | |
| 40 | 34E7-03140 | GROMMET | |
| 41 | S551-050203 | CLAMP-BAND | |
| A | S631-024004 | O-RING | |
| C | S621-012001 | O-RING | |
| E | S621-018001 | O-RING |
