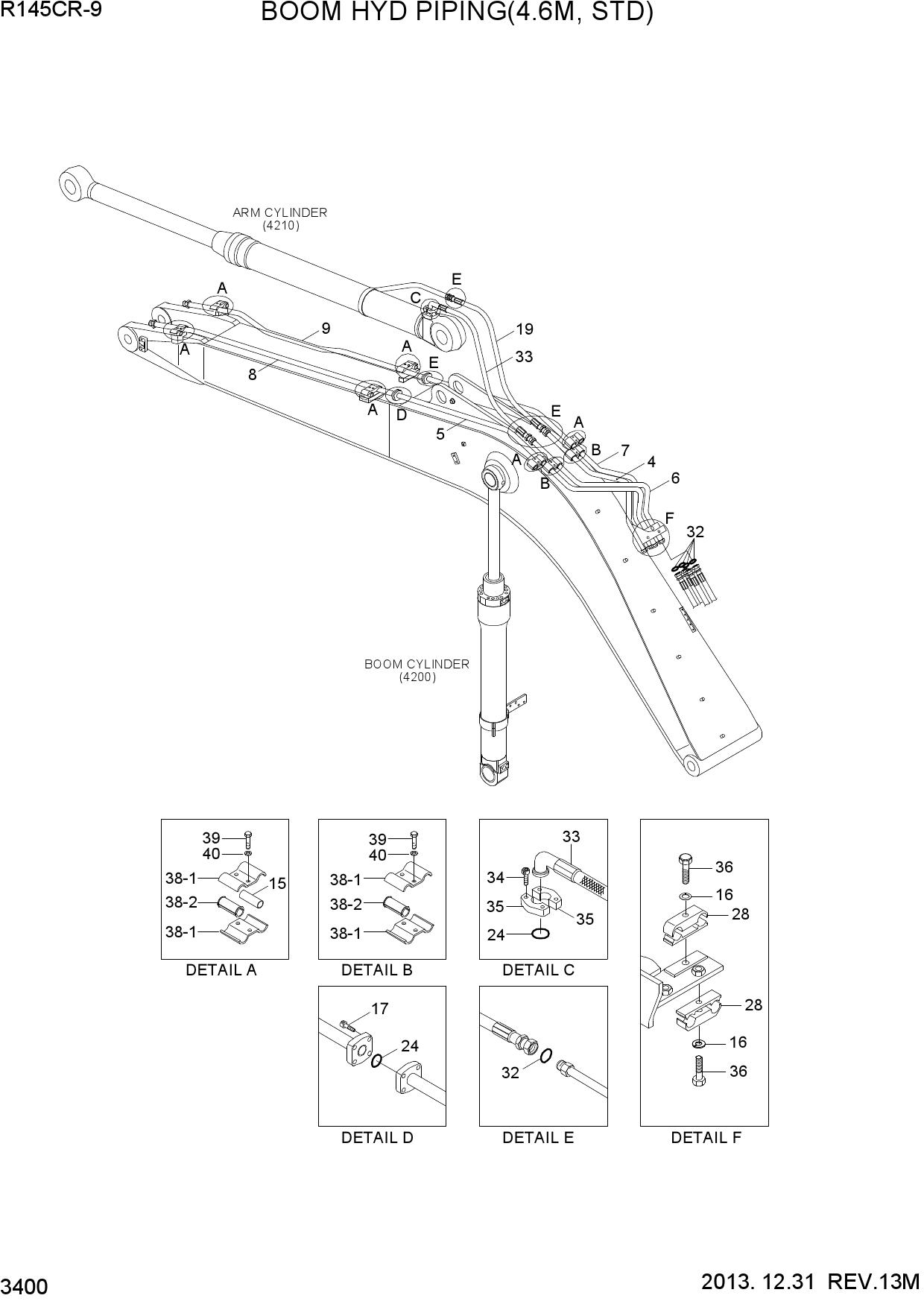

Запчасти для гусеничных экскаваторов Hyundai R145CR-9 BOOM HYD PIPING(4.6M, STD)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 4 | 31Q4-54111 | PIPE ASSY | |
| 5 | 31Q4-54121 | PIPE ASSY | |
| 6 | 31Q4-54131 | PIPE ASSY | |
| 7 | 31Q4-54141 | PIPE ASSY | |
| 8 | 31Q4-54150 | PIPE ASSY | |
| 8 | 31Q4-51051 | PIPE ASSY | |
| 9 | 31Q4-54160 | PIPE ASSY | |
| 9 | 31Q4-51061 | PIPE ASSY | |
| 15 | 31N5-50220 | SPACER-PIPE | |
| 16 | S411-160006 | WASHER-SPRING | |
| 17 | S109-100506 | BOLT-SOCKET | |
| 19 | P910-127018 | HOSE ASSY-ORFS 0X0 | |
| 19 | 31Q4-59540 | HOSE ASSY(HI-GRADE) | |
| 24 | Y171-019004 | O-RING | |
| 28 | 31N4-12200 | CLAMP-PIPE | |
| 32 | S621-018001 | O-RING | |
| 33 | 31Q4-54170 | HOSE ASSY | |
| 33 | 31Q4-53520 | HOSE ASSY(HI-GRADE) | |
| 34 | S109-100306 | BOLT-SOCKET | |
| 35 | P174-120102 | FLANGE-HYD,SPLIT | |
| 36 | S017-16080D | BOLT-HEX | |
| 38 | 31Q4-50300 | CLAMP ASSY | |
| 38-1 | 31Q4-50310 | CLAMP-PIPE | |
| 38-2 | 31Q4-50270 | GROMMET | |
| 39 | S017-120606 | BOLT-HEX | |
| 40 | S411-120006 | WASHER-SPRING |
