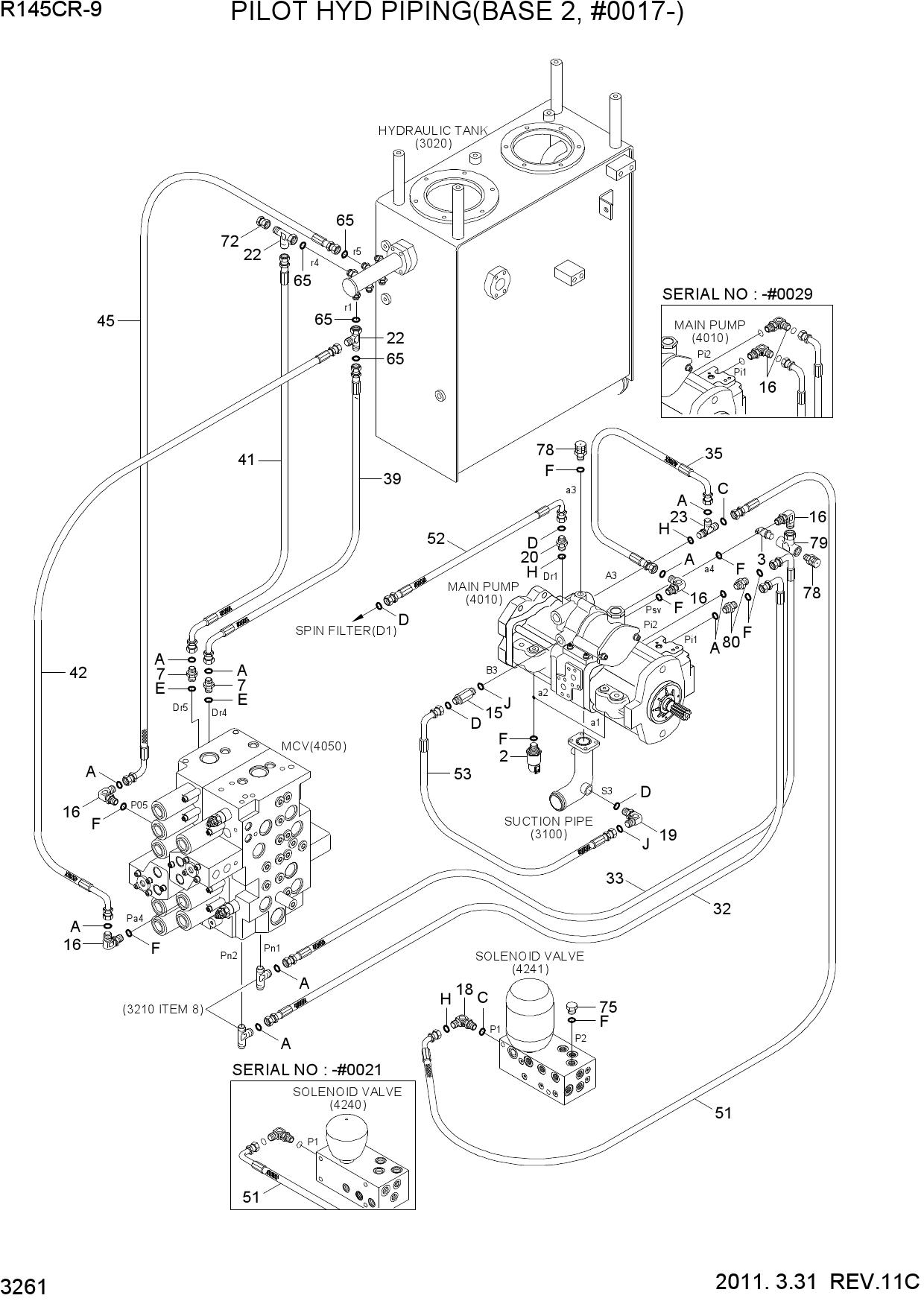

Запчасти для гусеничных экскаваторов Hyundai R145CR-9 PILOT HYD PIPING(BASE 2, #0017-)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 2 | 31Q8-40500 | PRESSURE SENSOR | |
| 2 | 31Q4-40800 | SENSOR-PRESSURE | |
| 3 | 31Q8-40520 | PRESSURE SENSOR | |
| 3 | 31Q4-40830 | SENSOR-PRESSURE | |
| 7 | 31Q6-20210 | CONNECTOR-ORFS | |
| 15 | X511-112546 | CONNECTOR-LONG,ORFS | |
| 16 | X520-110001 | ELBOW-90,ORFS | |
| 16 | X520-110001 | ELBOW-90,ORFS | |
| 18 | X520-110003 | ELBOW-90,ORFS | |
| 19 | X520-110004 | ELBOW-90,ORFS | |
| 20 | X500-110014 | CONNECTOR-ORFS | |
| 22 | X840-515151 | TEE-R/TYPE,ORFS | |
| 23 | X820-085153 | TEE-R/TYPE,ORFS | |
| 32 | P930-043043 | HOSE ASSY-ORFS 0X90 | |
| 33 | P930-043041 | HOSE ASSY-ORFS 0X90 | |
| 35 | P930-042008 | HOSE ASSY-ORFS 0X90 | |
| 39 | P930-042034 | HOSE ASSY-ORFS 0X90 | |
| 41 | P930-042032 | HOSE ASSY-ORFS 0X90 | |
| 42 | P930-042035 | HOSE ASSY-ORFS 0X90 | |
| 45 | P930-042027 | HOSE ASSY-ORFS 0X90 | |
| 51 | P930-082047 | HOSE ASSY-ORFS 0X90 | |
| 51 | P920-082047 | HOSE ASSY-ORFS 0X45 | |
| 52 | P930-122010 | HOSE ASSY-ORFS 0X90 | |
| 53 | P930-122012 | HOSE ASSY-ORFS 0X90 | |
| 65 | S621-011001 | O-RING | |
| 72 | X710-100102 | CAP-ORFS | |
| 75 | P220-110102 | PLUG-HEX | |
| 78 | 31EK-11130 | COUPLING-SCREW | |
| 79 | 31Q4-20170 | TEE-TEST PORT | |
| 80 | 31Q4-25050 | FILTER-LAST GUARD | |
| A | S621-011001 | O-RING | |
| C | S621-014001 | O-RING | |
| D | S621-018001 | O-RING | |
| E | S631-008004 | O-RING | |
| F | S631-011004 | O-RING | |
| H | S631-018004 | O-RING | |
| J | S631-024004 | O-RING |
