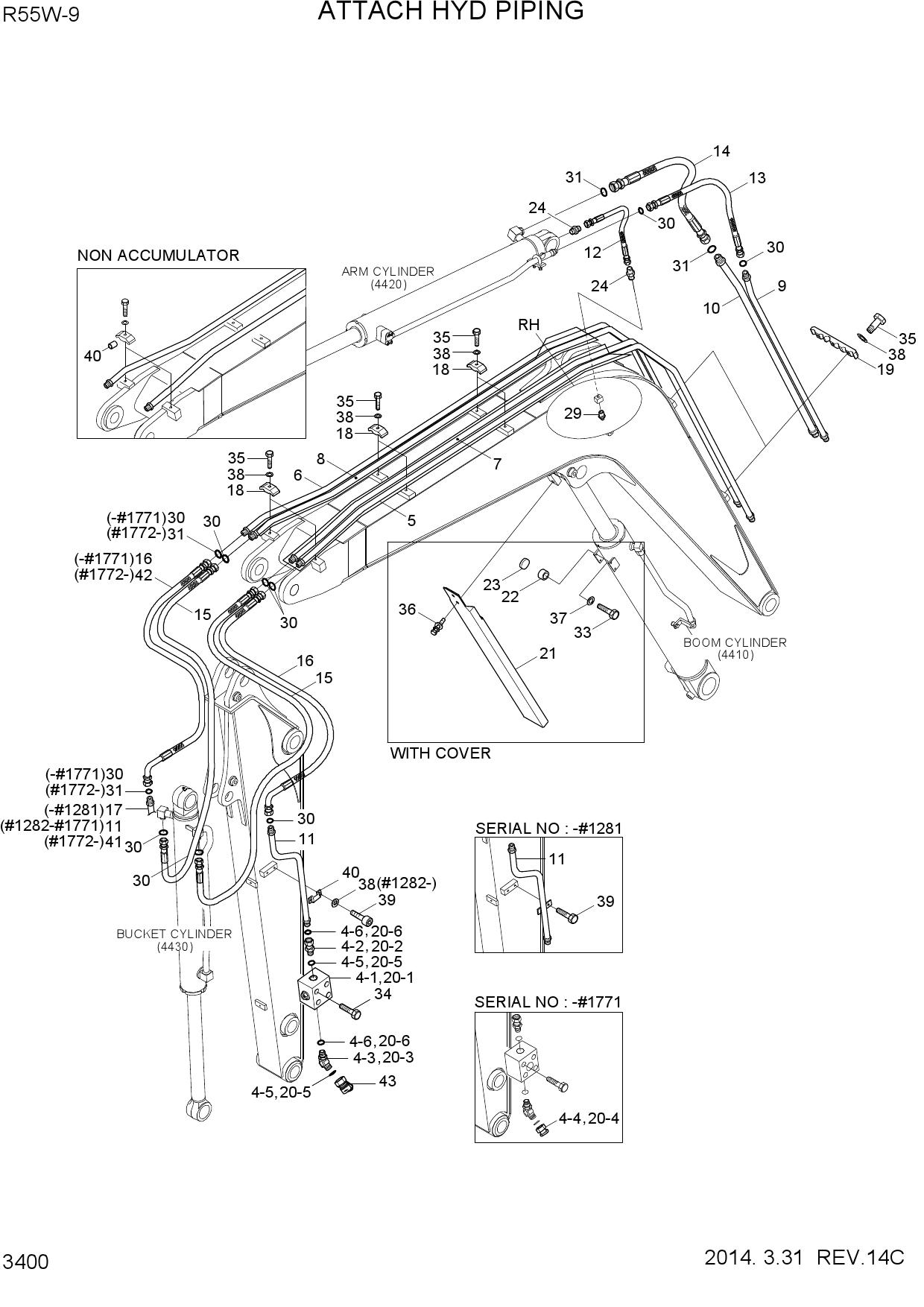

Запчасти для колесных экскаваторов Hyundai R55W-9 ATTACH HYDRAULIC PIPING

№	Номер	Описание
4	31M9-50560	STOP VALVE ASSY-LH
4	31M9-50561	STOP VALVE ASSY-LH
4	31M9-50580	STOP VALVE ASSY-LH
4-1	31M9-50520	STOP VALVE
4-2	X500-110003	CONNECTOR-ORFS
4-3	X530-110003	ELBOW-45,ORFS
4-3	P030-110003	ELBOW-45,ORFS
4-3	31M9-50600	ELBOW-45
4-4	X710-100104	CAP-DUST
4-4	P290-100104	PLUG-CAP
4-5	S631-018004	O-RING
4-6	S621-014001	O-RING
4-6	S621-014001	O-RING
5	31M9-51141	PIPE ASSY-BREAKER
5	31M9-51142	PIPE ASSY-BREAKER
6	31M9-51151	PIPE ASSY-BREAKER
6	31M9-51152	PIPE ASSY-BREAKER
6	31M9-53150	PIPE ASSY-BREAKER
7	31M9-51161	PIPE ASSY-BUCKET
7	31M9-51162	PIPE ASSY-BUCKET
8	31M9-51171	PIPE ASSY-BUCKET
8	31M9-51172	PIPE ASSY-BUCKET
9	31M8-51180GY	PIPE ASSY
9	31M9-51230	PIPE ASSY
10	31M8-51190GY	PIPE ASSY
10	31M9-51240	PIPE ASSY
11	31M9-51201	PIPE ASSY-LH
11	31ML-51201	PIPE ASSY
11	31ML-51201YL	PIPE ASSY
11	31ML-51201YL	PIPE ASSY
12	P840-042011	HOSE ASSY-SYN
13	P915-085011	HOSE ASSY-ORFS 0X0
13	P910-085011	HOSE ASSY-ORFS 0X0
14	P915-125011	HOSE ASSY-ORFS 0X0
14	P910-125011	HOSE ASSY-ORFS 0X0
15	P915-085021	HOSE ASSY-ORFS,0X0
15	P914-085021	HOSE ASSY-ORFS 0X0
15	P913-085021	HOSE ASSY-ORFS 0X0
15	P915-085028	HOSE ASSY-ORFS 0X0
15	P914-085028	HOSE ASSY-ORFS 0X0
15	P913-085028	HOSE ASSY-ORFS 0X0
16	P935-085017	HOSE ASSY-ORFS 0X90
16	P934-085017	HOSE ASSY-ORFS 0X90
16	P933-085017	HOSE ASSY-ORFS 0X90
16	P935-085024	HOSE ASSY-ORFS 0X90
16	P934-085024	HOSE ASSY-ORFS 0X90
16	P933-085024	HOSE ASSY-ORFS 0X90
17	31M9-51211	PIPE ASSY-RH
18	31M6-65100	CLAMP
19	31M8-50220	CLAMP-PIPE
20	31M9-50570	STOP VALVE ASSY-RH
20	31M9-50571	STOP VALVE ASSY-RH
20	31M9-50590	STOP VALVE ASSY-RH
20-1	31M9-50530	STOP VALVE
20-2	X500-110003	CONNECTOR-ORFS
20-3	X530-110003	ELBOW-45,ORFS
20-3	P030-110003	ELBOW-45,ORFS
20-3	31M9-50600	ELBOW-45
20-4	X710-100104	CAP-DUST
20-4	P290-100104	PLUG-CAP
20-5	S631-018004	O-RING
20-6	S621-014001	O-RING
20-6	S621-014001	O-RING
21	31M8-50250GY	COVER-BOOM CYLINDER
21	31M8-50250YL	COVER-BOOM CYLINDER
22	31M6-65130-DA	COLLAR
23	31M6-65140	PAD
24	P010-430011	CONNECTOR
29	S651-810002	NIPPLE-GREASE
29	S652-810002	NIPPLE-GREASE
30	S621-014001	O-RING
30	S621-014001	O-RING
30	S621-014001	O-RING
31	S621-018001	O-RING
31	S621-018001	O-RING
33	S015-080156	BOLT-HEX
34	S109-100406	BOLT-SOCKET
35	S017-100506	BOLT-HEX
36	S037-103026	BOLT-W/WASHER
37	S411-080006	WASHER-SPRING
38	S411-100006	WASHER-SPRING
38	S411-100006	WASHER-SPRING
38	S411-100006	WASHER-SPRING
39	S037-102026	BOLT-W/WASHER
39	S109-100306	BOLT-SOCKET
40	31N5-50210	SPACER-PIPE
40	31M9-90680	CLAMP-PIPE
41	31ML-51210	PIPE ASSY
42	31M9-51810	HOSE ASSY-ORFS 0X90
42	31M9-51820	HOSE ASSY-ORFS 0X90
43	31M8-95470	QUICK COUPLING-MALE
