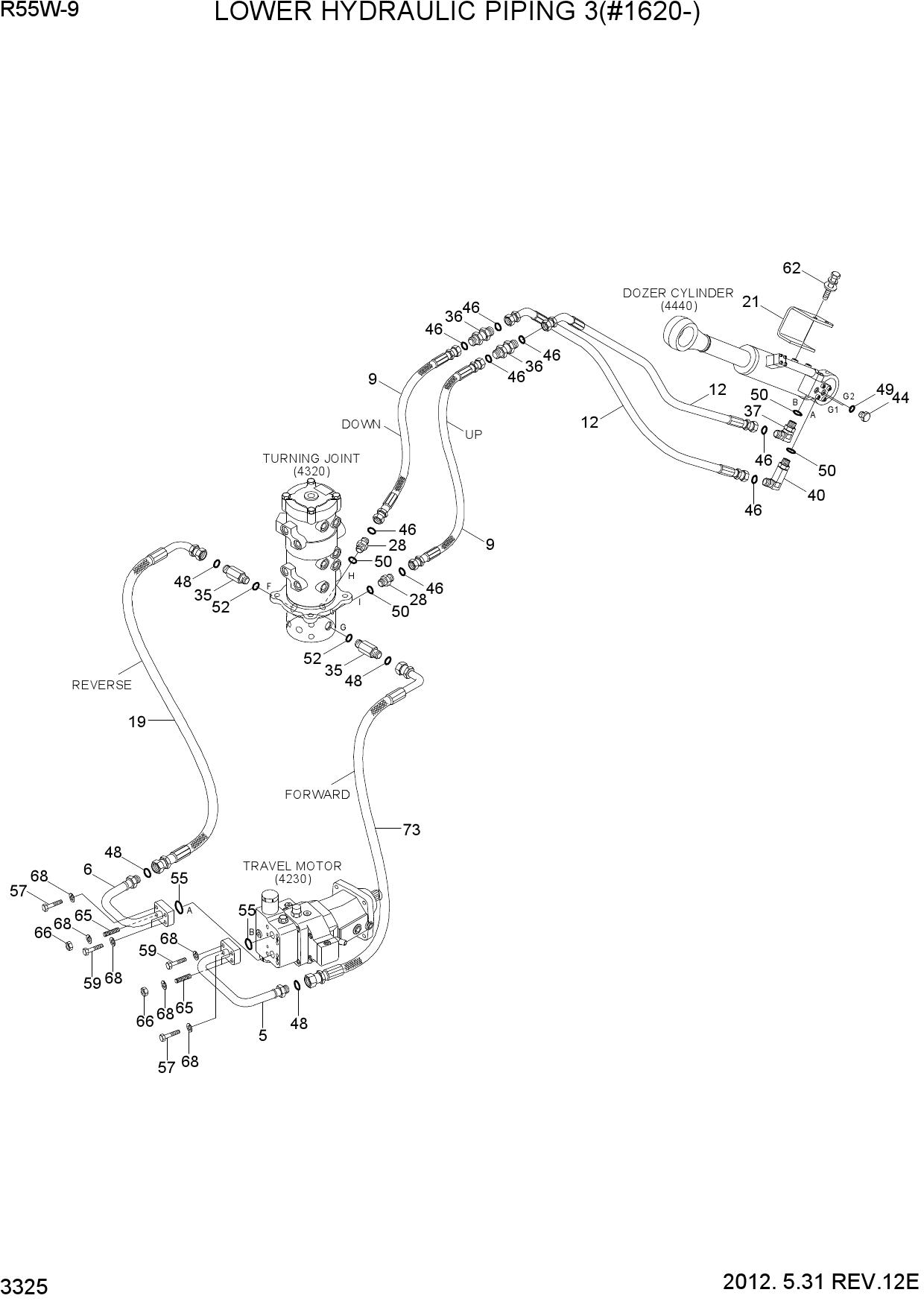

Запчасти для колесных экскаваторов Hyundai R55W-9 LOWER HYDRAULIC PIPING 3(#1620-)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 5 | 31M8-41122GG | PIPE ASSY | |
| 6 | 31M8-41132GG | PIPE ASSY | |
| 9 | P913-065014 | HOSE ASSY-ORFS 0X0 | |
| 12 | P923-065017 | HOSE ASSY-ORFS 0X45 | |
| 19 | P933-125015 | HOSE ASSY-ORFS,THD(0X90) | |
| 21 | 51M9-55050 | COVER-DOZER CYLINDER | |
| 28 | X500-110002 | CONNECTOR-ORFS | |
| 35 | X511-112547 | CONNECTOR-LONG,ORFS | |
| 36 | X540-120002 | CONNECTOR-ORFS | |
| 37 | X520-110002 | ELBOW-90,ORFS | |
| 40 | 31N1-40130 | ELBOW 90-ORFS | |
| 44 | P220-110102 | PLUG-HEX | |
| 46 | S621-012001 | O-RING | |
| 48 | S621-018001 | O-RING | |
| 49 | S631-011004 | O-RING | |
| 50 | S631-014004 | O-RING | |
| 52 | S631-024004 | O-RING | |
| 55 | Y171-024004 | O-RING | |
| 57 | S017-120406 | BOLT-HEX | |
| 59 | S017-121106 | BOLT-HEX | |
| 62 | S037-123026 | BOLT-W/WASHER | |
| 65 | S061-312130 | BOLT-STUD | |
| 66 | S205-12100B | NUT-HEX | |
| 68 | S411-120006 | WASHER-SPRING | |
| 73 | P933-125017 | HOSE ASSY-ORFS 0X90 |
